0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna
0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna
Specifications
Brand Name :
Merrytek
Model Number :
MC087V RC
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10,000pcs per Month
Delivery Time :
within 5 working days for sample and small order; within 3-4 weeks for bulk order
Packaging Details :
Bubble bag + partition + outer box (K=A)
Rated Voltage :
120/277V AC 50/60Hz
Operating Frequency :
5.8GHz ±75 MHz, ISM Band.
Working Mode :
ON/OFF function, 1-10V step dimming
Mounting Height :
6m Max
Lifetime :
5 years warranty@Ta 230V full load
Description

1. Features

(1) Newly designed patent needle, overcome the shortage of traditional needle antenna, no blind detection area

(2) Stable performance when mount in metal roof warehouse

(3) Slim cut-hole size, fit for tri-proof light, batten, troffer

(4) All parameters can be set by remote control

(5) Override function

(5) 5 years warranty


2. Parameters

Input Operating Voltage 108-305V AC 50/60Hz
Rated Voltage 120/277V AC 50/60Hz
Stand-by Power ≤1W
Surge Test L--N: 1kV
Output Working Mode ON/OFF function, 1-10V step dimming
Type of Load Inductive or resistive Load
Load Capacity 2A @120Vac ,3A@277Vac, 3A@220-240Vac
Max. Surge Capacity

30A (50%Ipeak,twidth =500uS, 230Vac full load, cold start);
60A (50% Ipeak, twidth=200uS, 230Vac, full load, cold start)
Dim Interface 1-10V Dimming 1-10Vdimming
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz, ISM Band.
Transmitting power 0.5mW Max.
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Stand-by DIM Level 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V) , 50% (4.9-5.1V)
Stand-by Period 0s/10s/1min/3min/5min/10min/30min/+∞
Detection Area 100%/75%/50%/25%
Daylight Sensor 5lux/15lux/30lux/50lux/100lux/150lux/Disable
Detecting Radius ≥4m(mount height 3m, moving speed 0.3m/s)
Mounting Height 6m Max
Detecting Angle 150°

Operating

Environment

 Operating Temperature -25℃…+60℃
Storage Temperature

Temperature:-40℃…+80℃;
Humidity:10%-95% (non-condensing)

Certificate

Standards

 Safety standards EN61058-1, UL60703-1
EMC standards EN300440; EN301489-1; EN55015; EN61547; EN61000-3-2; EN61000-3-3; EN62479
Environmental Requirement Compliant to RoHS
Certificate CE
Others Input/output terminal specifications Push-type terminal block; wire diameter: 0.75-1.5mm2
IP Rating IP20
Protection Class Class II
Installation Built-in installation
Dimension See dimension
Package Bubble bag + partition + outer box (K=A)
Net Weight 61.2G
Lifetime 5 years warranty@Ta 230V full load

Note
1. “N/A”means not available.
2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.3m/s.

3. Function

(1) On/OFF Function (stand-by period be set to “0”s)

(2) 2-step dimming function (stand-by period be set to “+∞”)

(3) 3-step dimming function (stand-by period be set to “0S/30S/10min/+∞”)

(4) Daylight priority

4.Dimension (mm)

0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna

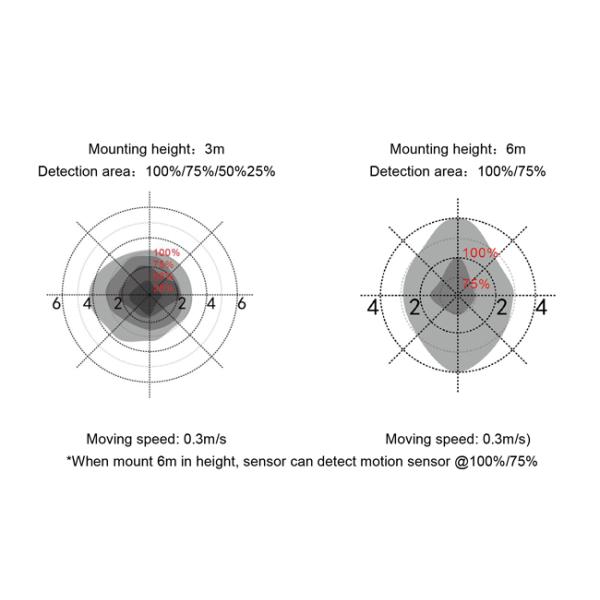

5. Radiation pattern

(1) Ceiling mounting
0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna


(2) Wall mounting
0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna

6. Remote control

0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna
