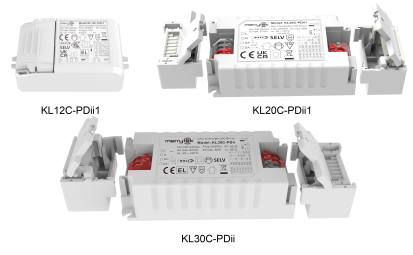

30W DALI DT6 And PushDIM 500ma to 1000mA Dimmable Led Driver For LED Downlight

1. Description

-Centrally-supplied DC emergency operation DT19

-Flicker-free for the whole dimming range

-Stand-by power below 0.5W

-Primary dimming with push button

-Built-in DALI interface DT6

-Protection: short circuit / over temperature/ over voltage

-Derating current for over high ambient temperature

-pushDIM with the memory function

-5 year warranty

30W DALI DT6 And PushDIM 500ma to 1000mA Dimmable LED Driver For LED Downlight

2. Parameters

Micro Series

KL30C-PDii
Input Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current

0.16A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load)

≥ 0.95

Total harmonic distortion

(@230Vac, 100% load)

 Typical:20%
Stand-by power ≤0.5W (@230Vac when PUSH or DALI turn off)
Efficiency(@230Vac,100% load)

88%
Wiring Method 0.75-1.5mm2

Automatic circuit breaker

 KL30C-PDii (Calculate current in the wire)
type C10 C13 C16 C20 C25
Number 40 55 65 85 100
type B10 B13 B16 B20 B25
Number 25 30 40 50 60
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering-Free) Flicker value: less than 5% for the whole dimming range
Start up time <1s (@230Vac)
No-load output voltage 59V DC Max.
Load output voltagerange 12-40V DC
Full load output power 20W
Load output current: For details<Current gear setting> 500-1000mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without self recovery function(Can be inquired)
Output short circuitprotection Yes, without self recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102, IEC62386-207 DT6 251 252 253 DT19
Safety standard EN61347-1 EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
With crimping 136*42.5*24mm
Without crimping 196*42.5*24mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 15 units Max.
Packaging requirement PE bag+Instruction+clapboard+outer carton(K=A)
Weight 103.9
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25-degree environment unless specified.

3. Dimension (Unit:mm)

30W DALI DT6 And PushDIM 500ma to 1000mA Dimmable LED Driver For LED Downlight

4. Wiring Diagram

Fig. A DALI Dimming

30W DALI DT6 And PushDIM 500ma to 1000mA Dimmable LED Driver For LED Downlight

Fig.B Push Dimming

30W DALI DT6 And PushDIM 500ma to 1000mA Dimmable LED Driver For LED Downlight

5. Derating

30W DALI DT6 And PushDIM 500ma to 1000mA Dimmable LED Driver For LED Downlight

6. Dimming curve

30W DALI DT6 And PushDIM 500ma to 1000mA Dimmable LED Driver For LED Downlight

7.Current gear setting

●:ON ○:OFF (SEC1 SEC2)

KL30C-PDii

Current gear setting

 1 2 3
500mA(12-40V) - - -
550mA(12-40V) ON - -
600mA(12-40V) - ON -
650mA(12-40V) ON ON -
700mA(12-40V) - ON ON
900mA(12-33V) ON - ON
1000mA(12-30V) ON ON ON

8. ON/OFF & Description of Dimming Operation

A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.

9. matters needing Attention

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
