28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA
28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA
Specifications
Brand Name :
Merrytek
Model Number :
MLC28C-DP2
Certification :
CE RED
Place of Origin :
Shenzhen, China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs/month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
PE bag clapboard, carton
Voltage Range :
220-240VAC 50Hz /60Hz
Inrush current :
≤20A（100us half-current）@230V AC
Power factor :
≥0.90，230VAC/Max Load
Stand-by Power :
≤0.5W
Full load power :
28W Max
Description

【Product Feature】

1. Conform to ERP standard, micro-power consumption.

2. 5.8GHz ISM brand, can be batch RED certification.

3. Isolated, Flicker-free, Driver+sensor 2 in 1

4. With corridor function , light priority function, suitable for all kinds of use scenes

5. Compact size, easy to install inside the lamps and lanterns.

6. All parameters can be adjusted via DIP switch.

【Parameter】

Input Voltage rage 220-240V AC,50Hz/60Hz
Input current ≤0.17A @ 230VAC
Inrush current ≤20A(100us half-current)@230V AC
THD ≤20%,230VAC/Max Load
Power factor ≥0.90,230VAC/Max Load
Stand-by power ≤0.5W
Working efficiency ≥86% ,230VAC/Max Load
Lightning surge L/N:1KV
Output Working model CC
Type of load LED
Full load power 28W Max
Flicker ripple ≤2%
No-load output voltage 60VDC Max
Load current 300mA/450mA/500mA/550mA/600mA/700mA
Load voltage 9-40VDC
Constant current accuracy ±5% @230VAC
Parameters Operating frequency 5.8GHz ±75MHz ISM band.
Transmitting power 1mW
Detection Area 25%/50%/75%/100%
Hold Time 5S/1min/5min/10min
Stand-by Period 0S/1min/10min/+∞
Parameters Daylight Sensor Daylight threshold 5Lux/25Lux/50Lux/Disable
Daylight priority open/close Open Close
5Lux 50Lux
25Lux 100Lux
50Lux 150Lux
Stand-by DIM Level 15%

Detecting radius

(sensitivity: 100%)

Ceiling mounting 3m:0.3m/S ≥4m,1m/S ≥2.5m

Wall mounting 2m:0.3m/S ≥10m,1m/S ≥5m
Mounting Height 3m Typical Value (6m Max )
3db field angle 90°@Xz flat
95°@Yz flat
Abnormality Protection Requirements Over voltage protection Yes, self-recovery
No-load protection Yes, self-recovery
Short-circuit protection Yes, self-recovery
Operating temperature -25…+50℃
Maximum temperature(Tc) 75℃
Storage temperature/humidity -40℃…+80℃ Humidity:85%
Withstand voltage 3750Vac 5mA 60S (input “L N” to output SEC+ SEC-)
Certificate Standards Safety standards(LVD) EN61347-1, EN61347-2-13
EMC standards EN55015, EN61547, EN61000-3-2, EN61000-3-3
Environmental requirement Compliant to RoHS
Certificate CE RED
IP Rating IP20
Protection class Class II
Others Wiring method Press terminal, wire diameter: 0.5-1.5mm2
Installation Built-in
Installation size Ф86mm*H26mm
Package PE bag clapboard, carton(K=A)
Net weight 122±3g
Lifetime 5 years warranty@Ta 230V full load
Note:The given values of detecting parameter is typical measured by 165cm high testers in an indoor open environment.

【Function】

1) On/OFF function (Setting “stand-by period” to “0s”), Setting other parameters according to practical applications.

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

2) 3-step dimming function(Setting stand-by period to “30s/10min”), Setting other parameters according to practical applications.

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

3) Daylight priority function (Setting stand-by period to “+∞”), Setting other parameters according to practical applications.

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

【Dimension (mm)】

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

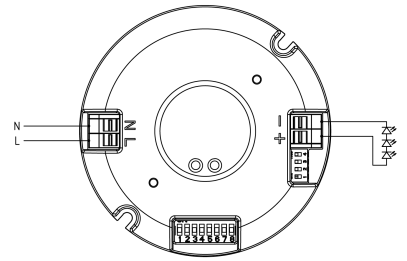

【Wiring】

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

【Structures】

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

【Cut-out size (mm)】

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

【DIP Switch Settings】

1) Detection Area

1 2
Ⅰ ON ON 100%
Ⅱ ON - 75%
Ⅲ - ON 50%
Ⅳ - - 25%

2) Hold Time

3 4
Ⅰ ON ON 5S
Ⅱ ON - 1min
Ⅲ - ON 5min
Ⅳ - - 10min

3) Daylight Sensor

5 6 Daylight threshold Open/Close
Ⅰ ON ON 5Lux 5Lux/50Lux
Ⅱ ON - 25Lux 25Lux/100Lux
Ⅲ - ON 50Lux 50Lux/150Lux
Ⅳ - - Disable Disable

Note: Realizing daylight priority function when setting “stand-by period” to “+∞”.

4) Stand-by period

7 8
Ⅰ ON ON 0S
Ⅱ ON - 1min
Ⅲ - ON 10min
Ⅳ - - +∞

5) Output current

Output current Output voltage 1 2 3 4
300mA 9-40V - - - -
450mA 9-40V - - ON ON
500mA 9-40V - ON ON -
550mA 9-40V - ON ON ON
600mA 9-40V ON - ON ON
700mA 9-40V ON ON ON ON

【Radiation Pattern】

Ceiling mounted height: 3m

Sensitivity: 100%/75%/50%/25%

Ceiling mounted height: 6m

Sensitivity: 100%/75%

Wall mounted height:2m

Sensitivity: 100%/75%/50%/25%

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

Normal moving (Speed:1m/s)

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

Normal moving (Speed:1m/s)

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

Normal moving (Speed:1m/s)

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

Slow moving (Speed 0.3m/s)

Note: There is no detection data at 25% sensitivity, 3m mounted height.

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

Slow moving (Speed 0.3m/s)

Note: There is no detection data at 50%/25% sensitivity, 6m mounted height.

28W Max Sensor DIM LED Driver with Daylight Priority Function, Output 300-700mA

Slow moving (Speed 0.3m/s)

【Initialization】

When power on, the product automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the product is not able to detect moving signals.

【Factory Setting】

Sensitivity: 100%; Hold Time: 5S; Stand-by period: 0S; Daylight Sensor: Disable.

【Application Notice】

1. The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.

2. The microwave sensor has good penetration ability to plastic and wooden objects, but the front and near the microwave antenna can not be equipped with metal accessories, metal shell and glass shell, otherwise it will affect the transmission and reception of the microwave antenna.

3. It is recommended that microwave sensors be installed at a distance of more than 2m, and that they be installed at a distance of more than 2m away from switches, routers and other wireless devices to avoid radio interference, for 5G WIFI is greater than 2 m.

4. The antenna surface of the microwave sensor is far away from the input AC and output DC to avoid low/high frequency signals interfering with the normal operation of the microwave antenna.

5. Should avoid long-term vibration equipment or moving objects around the microwave sensor, the vibration signal generated will be regarded as mobile signal trigger induction, so the installation position should be far away from large metal equipment, ventilation pipes, air conditioning outlets, exhaust vents, smoke exhaust machine and other scenes; If a pet passes through the detection area, the sensor may be triggered.

6. This product is suitable for indoor installation, when semi-outdoor or outdoor installation, wind, rain may be regarded as moving signal trigger induction; When the sensor is installed in metal lamps, metal reflective surface or narrow closed environment, the microwave will be reflected many times and trigger by mistake. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.

7. If wall mounting, the detection distance of microwave sensor will be greatly increased, please reduce the sensitivity or contact the manufacturer for technical support.

8. Due to continuous improvement, the contents of this instruction could be changed without prior notice.

9. Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.

10. The value of daylight sensor is in a sunny environment with no shadows and ambient light diffuse reflection conditions. The illuminance values detected by the product may different in different environment, at different times, in different seasons, and in different climates.
