High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights
High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights
High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights
High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights
High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights
High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights
Specifications
Brand Name :
Merrytek
Model Number :
MC018S
Certification :
TUV ,CE, R&TTE
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20,000pcs per Month
Delivery Time :
1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Packaging Details :
Packed in bubble bags firstly, and then reinforced with carton for outer packing
Operating Voltage :
220-240Vac,50HZ
Product Name :
Microwave motion sensor
Detection :
Max(D×H):12m×9m
HF system :
5.8GHz ±75MHz, ISM wave band
Rated load :
200W(inductive) 400W (resistive)
Size :
82x44x 22 mm
Approval :
TUV ,CE, R&TTE
IP Rating :
IP 20
Function :
On-off control
Operation temperature :
-35℃~70℃
Description

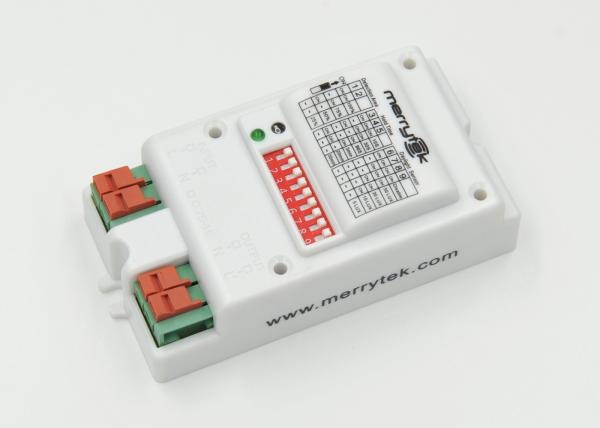

400W Microwave Indoor Motion Sensor for Lights , ISM Wave Band

Description

1. Automatic switching based on motion and ambient light level.

2. Automatic daylight learning.

3. Zero-crossing point operation helps protect the sensor against in-rush current.

4. 5.8GHz high frequency microwave(C-Band license-free operation)

5. 4-pole press-in terminal (L, N, N,L′),easy assembly.

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Two types of installation, suitable for different luminaries.

8. MC018S is an innovative motion sensor, switch on the light on detection of movement, and switch off a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient in natural light.

Function:

ON-OFF function

Detection Pattern:

High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights

Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

400W(inductive), 1200W (resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 9m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

25％/50％/75％/100％

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights

High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights

Wiring:

High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights

Applications:

Stairwell, Corridor, Balcony, Pathway, etc
