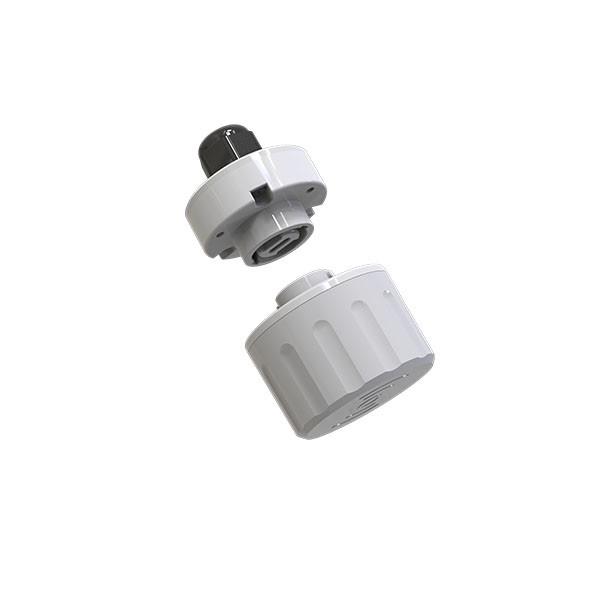

Name: MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses
Brand: Merrytek
Price: 1 USD

【Product Feature】

Low impedance planar antenna; High-gain
International general Type -C interface

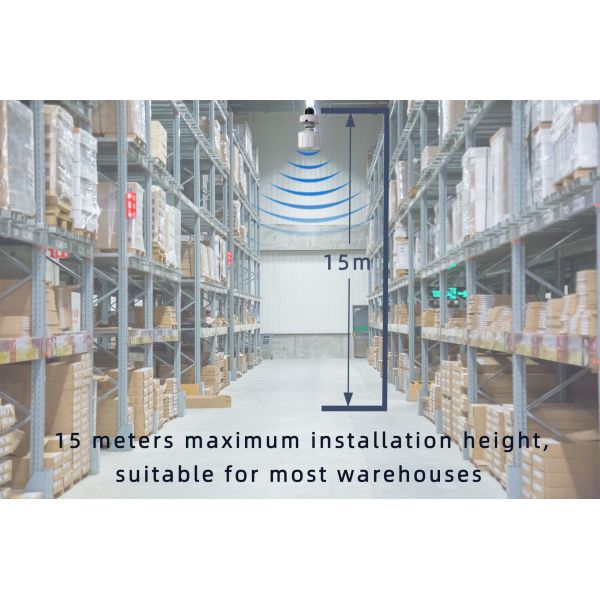

15 meters maximum installation height, suitable for most warehouses
Mini Microwave motion detector for High Bay Lights.

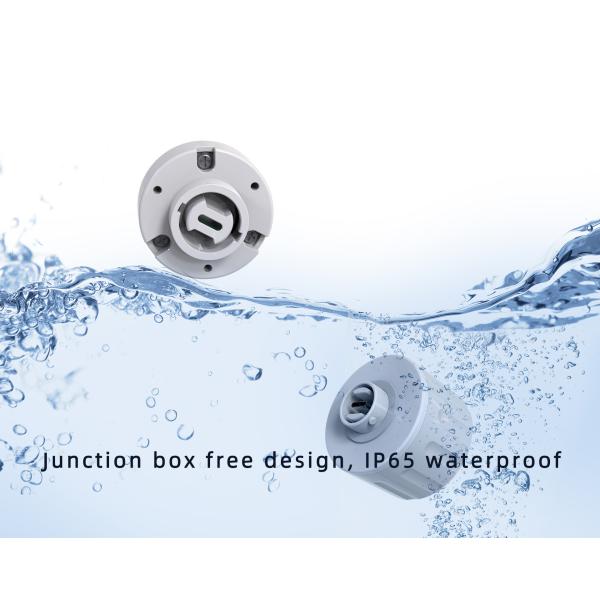

Junction box free design, IP65 waterproof
Ultra-low RF power output, harmless to human health

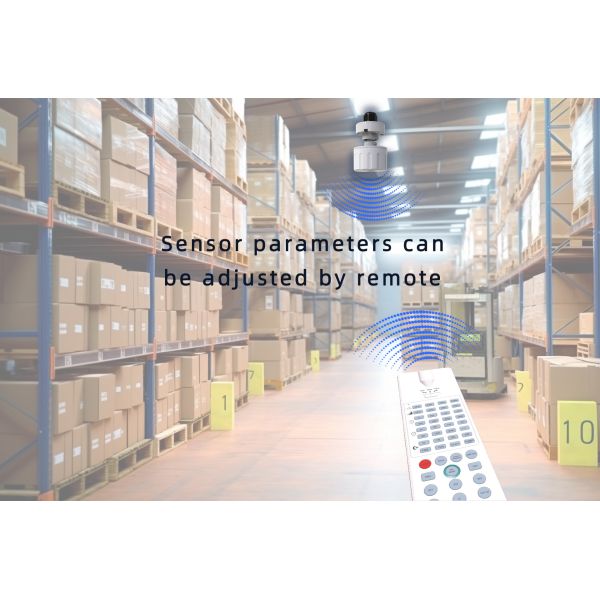

Sensor parameters can be adjusted by remote
The sensing range is adjustable (high sense/low sense) , suitable for different installation environments
Not affected by temperature, humidity, noise, airflow, dust, light etc.

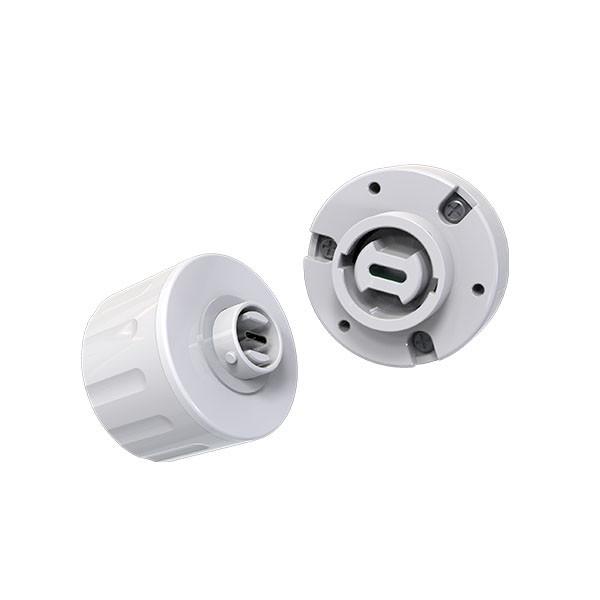

Automatic swing structure , easy to plug and play.

MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses

Input
Rated voltage	11-13VDC
Working current	<30mA
Ripple voltage	<100mVp-p
output
Output signal	10 -10VDC dimming signal
Sensor parameters
Working frequency	5.8GHz ±75MHz, ISM band
Transmitting power	3mW Max.
Daylight priority	Switch ON	5Lux/15Lux/30Lux/50Lux	100Lux	150Lux
	Switch OFF	150Lux	200Lux	300Lux
Dimming level	10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50% (4.9-5.1V)
Detection range (radius)	Ceiling installation 12m high: 0.3m/s≥4m, 1m/s≥3m;
Installation height	12m (15m Max )
3db beam angle	82°@XZ plane
	95°@YZ plane
Environment
Working temperature	-35~60℃
Storage temperature	-40℃~80℃, humidity ≤85% (non-condensing)
Certification standards
Certified	CE
Environmental requirements	Comply with RoHS 2.0 , Reach requirements
IP Rating	IP65

Input

Rated voltage	11-13VDC
Working current	<30mA
Ripple voltage	<100mVp-p
output
Output signal	10 -10VDC dimming signal
Sensor parameters
Working frequency	5.8GHz ±75MHz, ISM band
Transmitting power	3mW Max.
Daylight priority	Switch ON	5Lux/15Lux/30Lux/50Lux	100Lux	150Lux
	Switch OFF	150Lux	200Lux	300Lux
Dimming level	10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50% (4.9-5.1V)
Detection range (radius)	Ceiling installation 12m high: 0.3m/s≥4m, 1m/s≥3m;
Installation height	12m (15m Max )
3db beam angle	82°@XZ plane
	95°@YZ plane
Environment
Working temperature	-35~60℃
Storage temperature	-40℃~80℃, humidity ≤85% (non-condensing)
Certification standards
Certified	CE
Environmental requirements	Comply with RoHS 2.0 , Reach requirements
IP Rating	IP65
Other

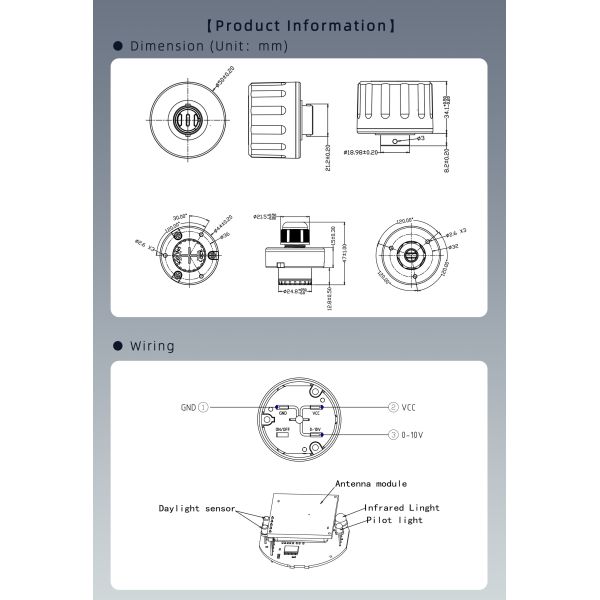

Wiring	Tpye C
Installation requirements	built-in installation
Packaging requirements	Clapboard + Carton(K=A)
Net weight	Body: 40.6±3g Base: 26.6±3g
Lifetime	5 years warranty @Ta

【Function description】

	1ON-OFF function	Stand-by Period be set to “0s”
	12-step dimming	Stand-by Period be set to “+∞”
	13-step dimming	Stand-by Period be set to “10s/1min/3min/5min/10min/30min”
	1Daylight priority	Remote press DH Mode and Daylight Sensor be set to “5Lux/15Lux/30Lux/50Lux/100Lux/150Lux”
	○Daylight harvesting	N/A

MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses
