12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens
12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens
Specifications
Brand Name :
Merrytek
Model Number :
MSA238D IR
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10,000pcs per month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
White box+ White box tags+ Clapboard+ Carton(K=A)
Input Voltage :
12-24Vdc
Working current :
20mA mAX.
Power Consumption :
≤0.5W
Function :
Dry contact, easy connect with RCM system
Detecting Area (radius) :
2m
Mounting Height :
4m
Installation :
Flush Mounting
Warranty :
3 years
Description

12-24Vdc input Dry Contact pir motion sensor light switch with planar rectangle fresnel lens


1. Features
1) PIR motion detection
2) l Accurate NO/NC dry contact output
3) Daylight sensor detection is available
4) Detection area, and hold time can be set by remote control
5) Max detection range: 4m in diameter
6) 4m max mounting height: corridor, staircase motion detection is highly recommended


2. Parameters

Input/Output Input voltage 12-24V DC
Rated voltage 12/24V DC
Working current 20mA max
Power consumption ≤0.5W @12/24V DC
Output signal NO/NC dry contact (Factory setting is NO dry contact)
Sensor parameter Function PIR motion detection+ daylight sensor
Detection Area Remote setting: 100%/75%/50%/25%
Hold Time Remote setting: 2s/1min/3min/5min/10min/30min
Daylight Sensor Threshold Remote setting: 15lux/50lux/Disable
Radius detection range(based on 100% sensitivity) Tangential moving based on 3m high installation: 0-2m from long side,0-0.5m from short side @25℃(radial moving detection range will shorten)
Remote control Available
Mounting height 2.5-4m typical value:3m
Application environment Drill hole Φ45mm
Working temperature -25℃...+50℃(detection range might differ based on different temperature )
Storage temperature -40℃~+80℃
Warranty 3 years(available due to product quality problem under indoor application)
Certificate Standard Certificate Compliant to CE
Environmental requirements Compliant to RoHS
IP rating IP20

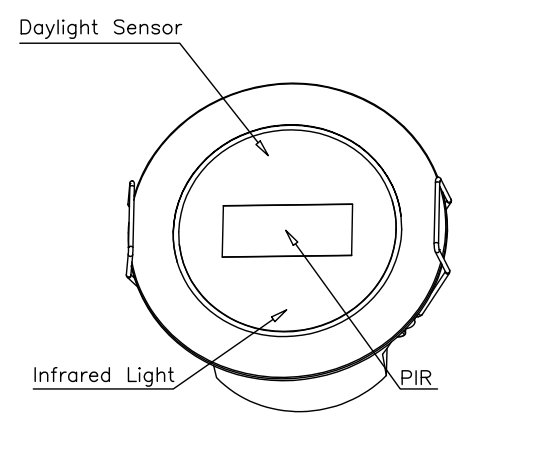

3. Dimension

12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens
12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens



4. Wiring Diagram

12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens

12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens
5. Detection radiation
12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens


6. Remote Control

12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens
