PP PE 125X 250X 350X 500X Corrugated Plate Packing Plastic Structured Packing

Corrugated Plate Packing Plastic Structured Packing Introduction

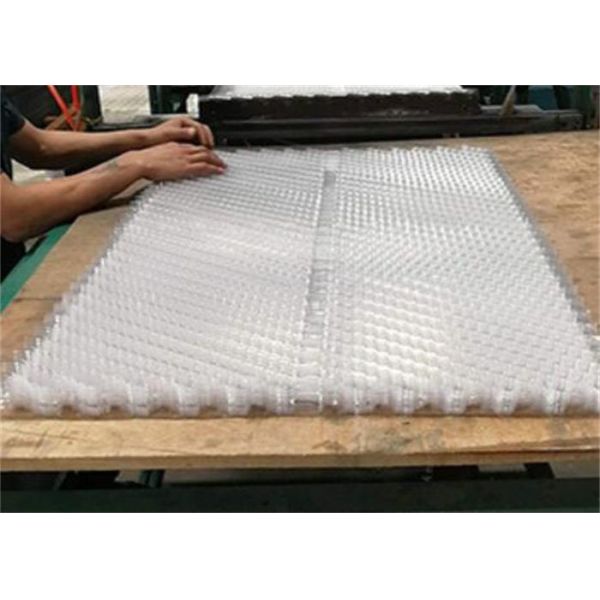

Mass transfer plastic structured packings are formed by welding profiled plastic foils to each other.

Uniform liquid distribution throughout the packing structure The contoured foils and the structures achieved by the foils slanting against each other (channel slanting) achieve a uniform liquid distribution throughout the packing, suitable for low to very high liquid loads.

The high mass transfer rate of the profiled foils and the wavy profile (internal structure) of the individual foils ensure continuous and thorough mixing of gases and liquids. This constant renewal of the gas/liquid boundary results in high mass transfer rates.

This design proved to be more effective than random packing. Tests have shown that structured packing achieves significantly higher throughput and lower pressure drop at the same level of mass transfer performance.

Corrugated Plate Packing Plastic Structured Packing Application

Widely used in the operation of absorption and decomposition absorption units, especially suitable for heavy-load liquid, high operating pressure production processes, such as production of hydrochloric acid (HCl) and sulfuric acid (H2SO4), degassing CO2 and H2S from natural gas, drying chlorine, manufacturing Ammonia liquid, waste gas purification, decomposition, absorption and degassing device.

Corrugated Plate Packing Plastic Structured Packing Specification

Structured packaging has two slants, "X" and "Y". The "Y" type packing, with an inclination of approximately 45º to the horizontal axis, is the most widely used packing. They offer higher filtration efficiency than the "X" type, but at the cost of higher pressure drop/lower capacity. The "X" type packing has an inclination of 60° to the horizontal axis and is suitable for high volume and low pressure drop applications.

About Us

Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.

During the company's development, through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!

FAQ

Q: If I want to know the price, what information should I give you?
A: Material, size, application/purpose, quantity, payment term FOB or CIF, packaging term, etc.

Q: Is the size fixed?
A: No, except for table size. Can be customized according to demand!

Q: Can I negotiate the price?
A: Yes, we will give discounts according to the quantity and type of products you need.

Q: How long is the delivery time?
A: It usually takes 7-10 working days; it depends on the specific quantity and type.
