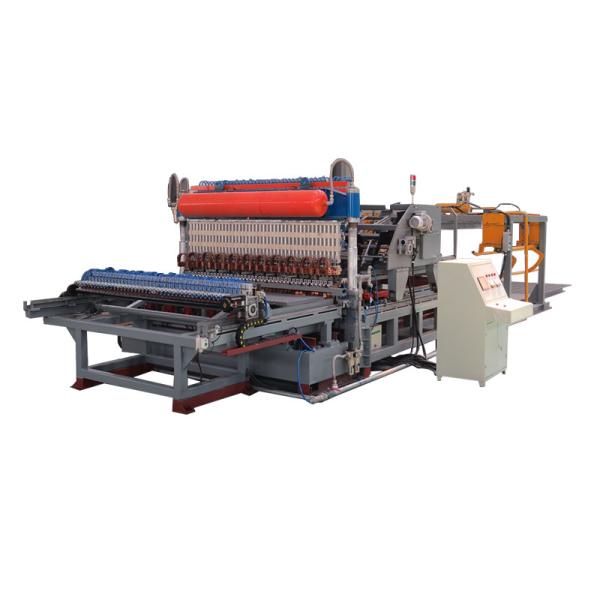

160KVA 3-6mm Roll Construction Mesh Welding Machine Servo Driven Wire
160KVA 3-6mm Roll Construction Mesh Welding Machine Servo Driven Wire
Specifications
Brand Name :
FZ
Model Number :
DNW-30Q
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
60days
Type :
Welding Wire Machine
Condition :
New
Welding speed :
50-70 times/min
Wire diameter :
3-6mm
Warranty :
1 Year
Rated voltage :
380V 50HZ
Color: :
gray and yellow
Voltage :
380V
Rated capacity :
160KVA*9
Rated duty cycle :
50%
Description

Road Construction 3-6mm Roll Construction Mesh Welding Machine​

1 The cross wire blanking device is divided into steel wire storage bin and blanking device.
2. cross wire is a pre cut straight steel wire. The servo driven wire holding plate will send the steel wire (one at a time) to the electrodes for welding. After a row of weft welding is completed, the warp will step into a grid, and at the same time, a weft will be dropped for welding. It will reciprocate several times in turn, and a finished mesh will be completed.
3. In this way, the automatic detection device can be set up when the screen is damaged, so that the detection rate can be greatly reduced.
4. Mature and stable blanking structure design ensures smooth blanking, sufficient storage in the blanking bin, and reduces the frequency of manual wire laying.

Working speed max. 35-55Times/Min.
Width range of wire mesh ≤ 3000mm
Length range of wire mesh ≧1000mm
Longitudinal wire spacing ≧50mm variable from mm it can be adjusted
Cross wire spacing ≧50mm Freely programming it can be adjustments
Max. welding capacity 6+6mm

Each welding transformer is controlled by a separate microcomputer. The welding electronic control adopts the way of grouped power transmission and welding. It means when it is welding cross wire in the same row, and welding transformer is working separately, which makes the welding more reliable, more stable, more faster and more intelligent. It also makes spatters small, and reduces the burn degree of welding joints, and avoid thermal deformation of meshes.
