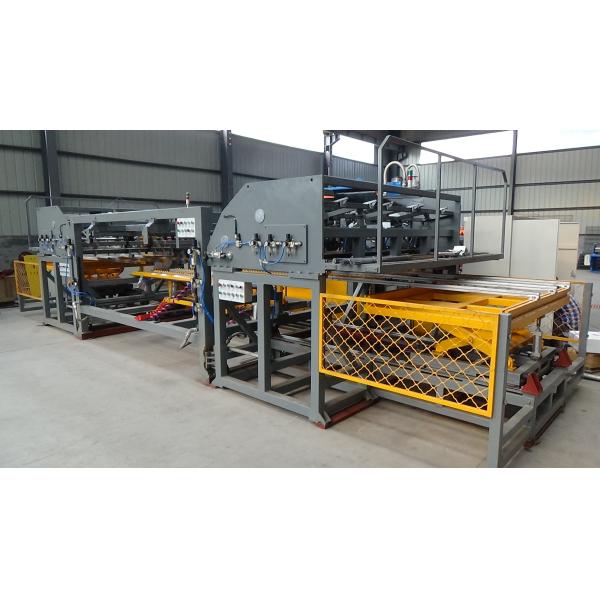

Fully Automatic 6-12mm Pre Cut Wire Plc Reinforcing Mesh Welding Machine
Fully Automatic 6-12mm Pre Cut Wire Plc Reinforcing Mesh Welding Machine
Specifications
Brand Name :
FZ
Model Number :
DNW-33Q
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
Plastic films or can be customized.
Material of machine :
Heavy plates and section bars
Mesh hight :
1000-3000mm
Mesh hole size :
100*100mm
Welding speed :
40-60 times/min
Voltage :
220V/380V/415V/440V or can be customized
Color :
Can be customized
Lead time :
30 days
Mesh length :
≤12000mm
Welding method :
Pneumatic
Description

Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine

The pneumatic welding mechanism is composed of cross beam, insulation plate, welding cylinder, upper electrode, serial circuit, etc.The beam is welded into type steel.Cylinder is installed through insulation plate and crossbeam. Welding cylinder is a strength cylinder to fully improve the welding pressure and ensure the welding quality.The upper electrode is made of cold violet copper, and the welding block material is chromium zirconia copper, which is now widely used and recognized as the best resistance welding head material.The welding cylinder and upper electrodes can be adjusted to meet different needs of welding mesh.

No. Name Brand
1 Servo motor and driver DELTA
2 Pneumatic component STNC/ISAIAH
3 Linear guideway PMI
4 PLC DELTA
5 Touch screen DELTA
6 Welding electrode Chromium zirconium bronze
7 Switch and button SCHNEIDER
8 Sensor RUNAN
9 Microcomputer controller FANGZHENG
10 Transformer FANGZHENG
11 Chain and cable ECHU

After-sale service for Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine

After the assurance period, during the service life of the Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machinee,we supply after-sale service with good quality.

We guarantee a lifelong maintenance and supply spare parts and easily Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine damaged parts.

We will arrange engineer to the factory to supply technical service as soon as we receive formal notification such as fax or email if Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine customer can not solve the problem under the guidance on the phone.

Provide regular Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine inspection and maintenance service.

Update the Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine new Software edition for free.
