Specifications
Brand Name :
MLG
Model Number :
MLG-WHJ-2500
Certification :
CE ISO9001
Place of Origin :
Hebei China
MOQ :
One set
Supply Ability :
4--6 sets per month
Delivery Time :
20 days
Packaging Details :
The control cabinet and spare parts put into wooden box. the main machine is nude packing put into 20 feet container.
Material :
Steel plate
Wire diameter :
3--6mm
Width of mesh :
500--2500mm
Mesh opening :
50x50mm--200x200mm(adjustable)
Motor :
4KW
Welding speed :
40--60 times per min
Description

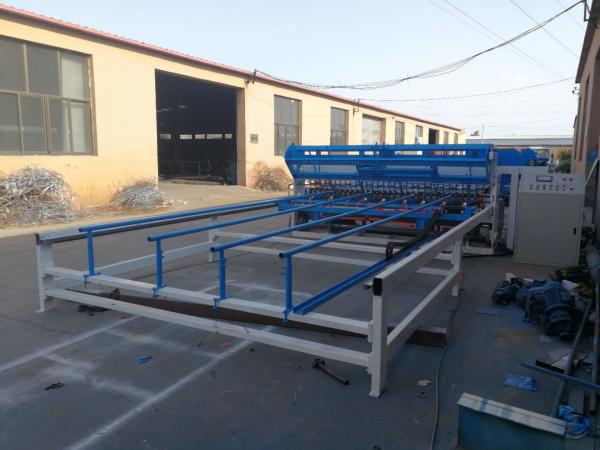

Feeding of Longitudinal Wire Mesh Fence Panel Welding Machine Width 2.5m

Product description

1 This is our latest technology wire mesh fence panel welding machine.

2 The feeding of longitudinal wire is pre-cut. then put the wire into the hopper. The hopper will fall wire automatically. Then put the cross wire into the hopper. the wire is falling automatically. The machine easy operation. Only need 2 persons is ok.

3 The uniform wire will make the longitudianl wire in a line after finish the fall wire. The wire mesh fence panel welding machine will start to work. One welding the mesh pulling system will pull the mesh panel.

4 The machine need power transformer at least 80KVA to supply the machine running.

5 The weding speed is very fast. 40--65 times per min. The capacity is about 220--260m per hour.

6 The wire mesh fence panel welding machine has 160KVA welding water-cooling transformer.

7 Suitable material; wire mesh fence panel welding mahcine is suitable for galvanized wire, low carbon steel wire. ribbed wire etc.

Technical patameter

Wire diameter 3.0--6.0mm Line wire form Pre-cut wire
Vertical wire distance

50--200mm

(adjustable)

 Weft wire form Pre-cut wire
Horizontal wire distance

25--200mm

(adjustable)

 Rated voltage 380V 50HZ(customize)
Welding panel width Max 2500mm Transformer power 160KVAx6PCS
Welding speed 45--65 times/min Panel Length Max 6m
Welding electrodes 48 Dimension 5m*1.7m*1.7m
Machine weight 3.9T Motor power 4.0KW

Application:

Garden fence, railway fence, bridge fence, highway fence, sports fence, airport fence, etc.
