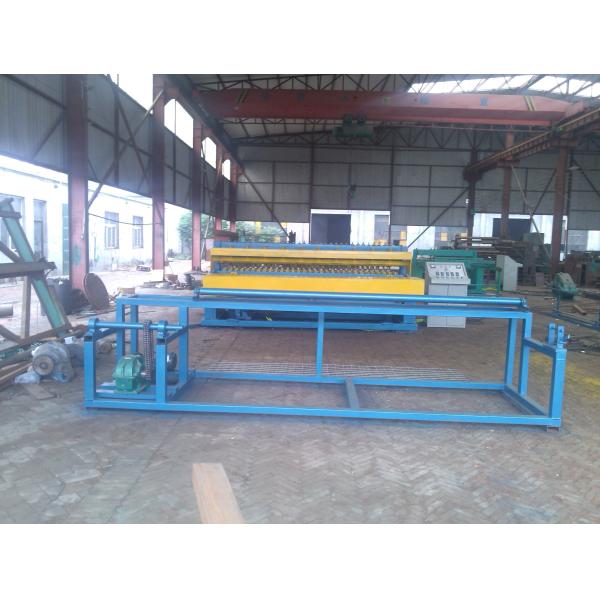

Large Roll Mesh Welding Machine For Iron Wire , Mesh Size 100x100mm
Large Roll Mesh Welding Machine For Iron Wire , Mesh Size 100x100mm
Specifications
Brand Name :
MLG
Model Number :
MLG--WHJ--2500
Certification :
CE
Place of Origin :
Hebei China
MOQ :
1 set
Supply Ability :
6 sets per month
Delivery Time :
15 days
Packaging Details :
Covered by plastic film on the machine put into 20 ft container
Name :
Mesh Size 100x100mm Welded Iron Mesh Welding Machine For Iron Wire
Wire diameter :
2.5--6.0mm
Width of mesh :
Max 2500mm
Mesh opening :
100x100mm--300x300mm
Length of mesh :
10--70m
Capacity :
30m per hour
Description

Mesh Size 100x100mm Welded Iron Mesh Welding Machine For Iron Wire

Main features:

1.The control system adopts synchronous CNC technology,Mitsubishi PLC program and HMI. It is easy and convenient to operate with the touching screen.
2. The fallen wire system is controlled by stepping motor instead of putting wefts wires by manual work, increasing productivity.
3. Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to control cabinet by touch screen, any mesh opening can be reach. Welding aperture can adjust randomly within range.
4. The length of mesh can be adjustable in the control cabinet. Such as you need produce length of mesh 50m in roll. mesh size 10*10cm. So input quantity of mesh opening 50 into the control cabinet by touch screen.The machine will produce length of mesh 50m in roll.
5. This machine equips typical and efficient transformer, which gearless adjusted, enlarging the welding range.
6. Mesh pulling system is controlled by servo motor.
7, Welding transformer:160KVA*6(48welding heads) ——every 8 welding heads need a water cooling transformer.
8, Wire feeding way:The line wires from coil wire. and cross wires should be pre-straighten and pre-cut.

Technical details:

Wire diameter 1.2--4.0mm Line wire form From coil wire
Line wire distance 25--200mm Weft wire form Pre-cut wire
Cross wire distance 25--200mm Rated voltage 440V or 415V 50HZ
Welding mesh width Max 2000mm Transformer power 5X160KVA
Welding speed 45--60 times/min Length of mesh 100m in roll or any length in panel
Welding spots 81pcs and 40pcs Dimension 6m*2.7m*1.7m
Machine weight 5.4T Motor power 5.5KW

Applications

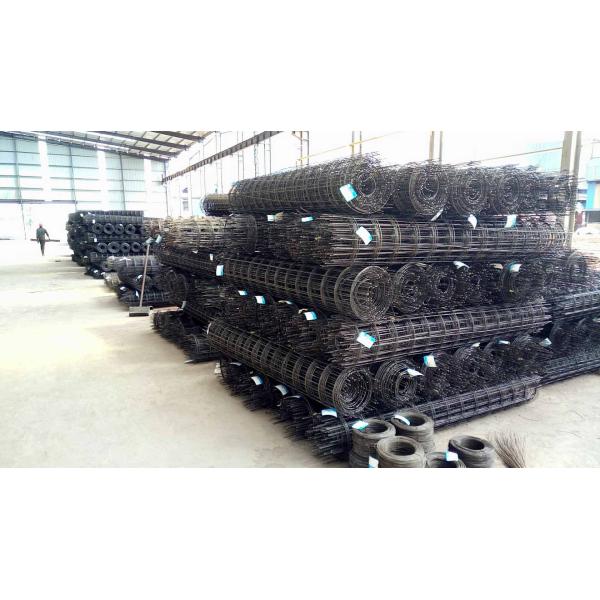

Widely used in construction, building construction and so on.

Large Roll Mesh Welding Machine For Iron Wire , Mesh Size 100x100mm

Large Roll Mesh Welding Machine For Iron Wire , Mesh Size 100x100mm

Large Roll Mesh Welding Machine For Iron Wire , Mesh Size 100x100mm
