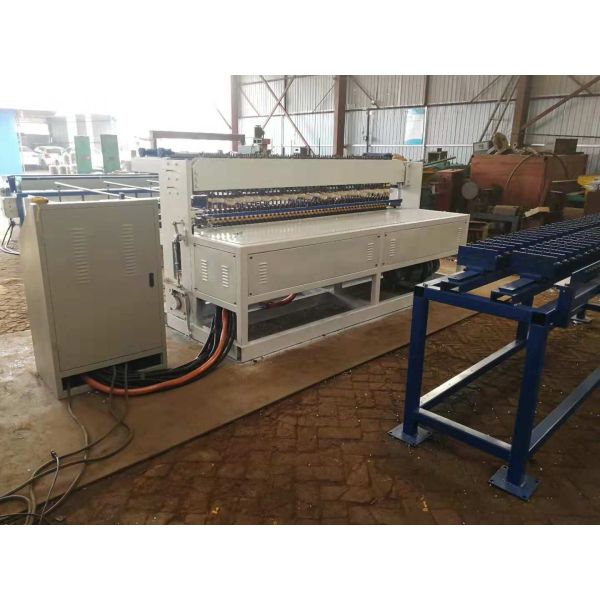

Width 2500mm Automatic Wire Mesh Production Line For Mesh Size 50x200mm
Width 2500mm Automatic Wire Mesh Production Line For Mesh Size 50x200mm
Width 2500mm Automatic Wire Mesh Production Line For Mesh Size 50x200mm
Width 2500mm Automatic Wire Mesh Production Line For Mesh Size 50x200mm
Specifications
Brand Name :
MLG
Model Number :
MLG-WHJ-2500A
Certification :
CE ISO9001:2015
Place of Origin :
Hebei China
MOQ :
1 set
Supply Ability :
3 sets per month
Delivery Time :
30 days
Packaging Details :
The Automatic Wire Mesh Production Line need 40 feet container to load.
Line wire type :
From coil
Cross wire type :
Pre-cut
Wire diameter :
2.0--5.0mm
Mesh opening :
50--200mm
Capacity :
270--300m per hour
Welding transformer :
1000KVA
Description

Direct Factory Automatic Wire Mesh Production Line For Mesh Size 50x200mm

Product description

1.The control system adopts synchronous CNC technology, Panasonic PLC program and HMI. It is easy and convenient to operate with the touching screen.
2. Adjustable distance of the line wire that allows different opening size between the line wire distance, when input the distance of cross wire to computer, any mesh opening can be reach.
3. The welding wire is accurate and the welding points are firm for the big pressure.

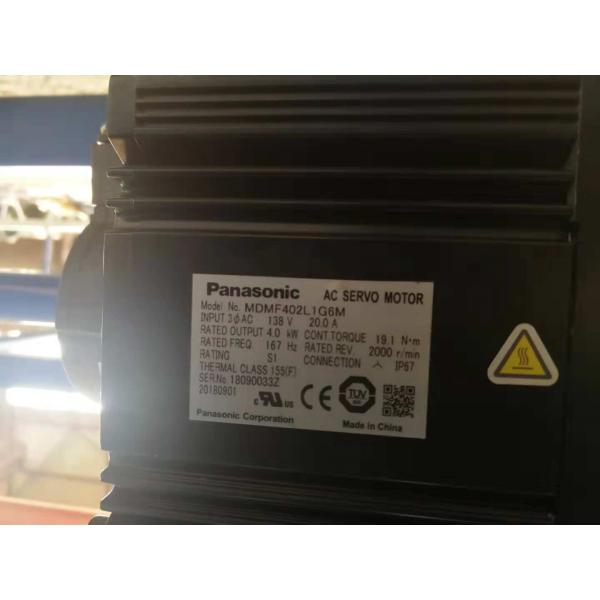

4. Mesh pulling system is controlled by servo motor(Panasonic brand)
5, Welding transformer:160KVA*6PCS (48welding electrodes) ——every 8 welding heads need a water cooling transformer.

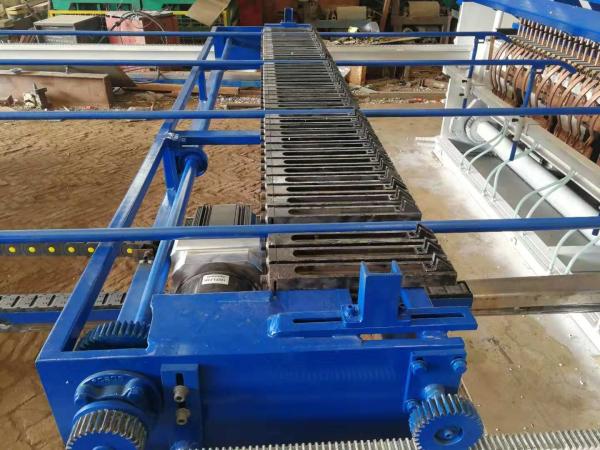

6, Wire feeding method: The line wires from coil wire.The cross wires should be pre-straightened and pre-cut. The cross wire system is controlled by stepping motor. Sends weft wires one by one automatically.

The automatic wire mesh prodyction line will stop working when the cross wire used up in the hopper.

7, Material:Suitable for low carbon iron wire, black annealed wire or galvanized wire.

Technical details

Wire diameter 2.0--5.0mm Line wire form From coil
Vertical wire distance

50--200mm

(adjustable)

 Weft wire form Pre-cut wire
Horizontal wire distance

50--200mm

(adjustable)

 Rated voltage 380V 50HZ(customize)
Welding panel width Max 2500mm Transformer power 160KVAx6PCS
Welding speed 45--60 times/min Panel Length As per required
Welding electrodes 48 Dimension 9m*3.4m*1.6m
Machine weight 4.5T Motor power 4.0KW
Capacity 270--300m per hour Power consumption 7--8KW/h

For the electrical parts. We adopt world famous brand.

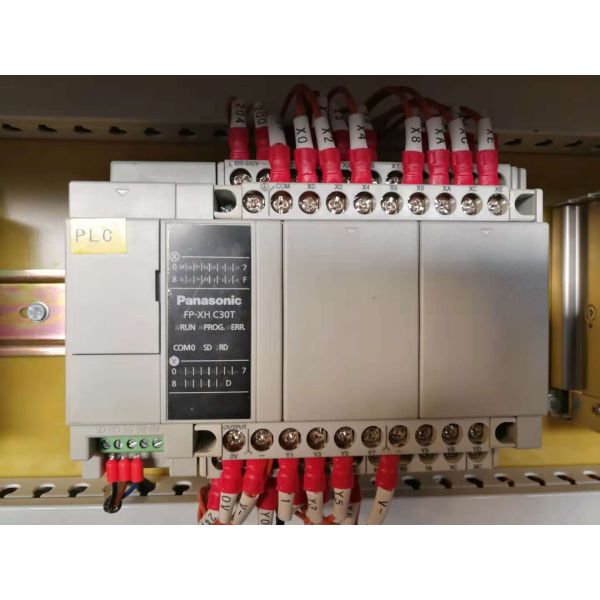

1.PLC Panasonic brand Japan.

2. Frequency Converter Delta brand Taiwan

3 Servo driver Panasonic brand. Japan

4 Touch screen Weinview brand Taiwan

5 Air switch Schneider France
