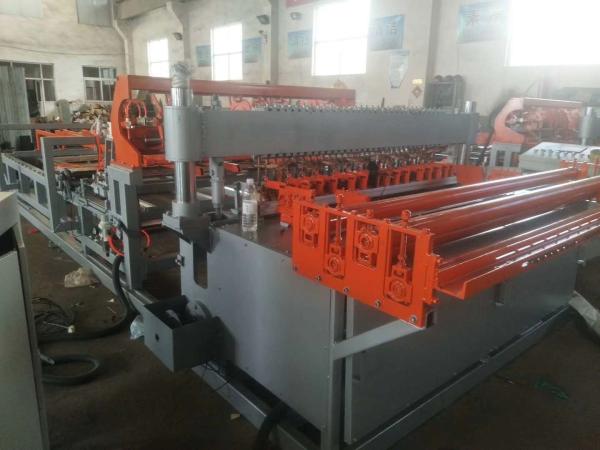

Width 1200mm Automatic Chicken Cage Mesh Welding Machine For Domestic animals
Width 1200mm Automatic Chicken Cage Mesh Welding Machine For Domestic animals
Width 1200mm Automatic Chicken Cage Mesh Welding Machine For Domestic animals
Width 1200mm Automatic Chicken Cage Mesh Welding Machine For Domestic animals
Specifications
Brand Name :
MLG
Model Number :
MLG-WHJ-1200
Certification :
CE ISO9001
Place of Origin :
Hebei China
MOQ :
1 set
Supply Ability :
6 sets per month
Delivery Time :
30 days
Packaging Details :
The chicken mesh cage welding machine is covered by plastic film. the control cabinet put into wooden box. 20 feet container is ok
Line wire type :
From coil wire
Cross wire type :
Pre-cut
Wire diameter :
2.5--5.0mm
Width of mesh :
1200 mm
Mesh opening :
100*25 mm--200*200 mm(adjustable)
Raw material :
galvanized wire
Description

Latest Technology Automatic Chicken Cage Mesh Welding Machine For Layer Cage

Product description

1. The control system adopts synchronous CNC technology, Panasonic PLC program and HMI. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable.


2. Adjustable distance of the line wire that allows different opening size between the line wire distance, when input the distance of cross wire to computer in the control cabinet, any mesh opening can be reach.


3. Mesh pulling system is controlled by servo motor (Panasonic brand)


4. Welding transformer:150KVA*2PCS (13welding electrodes) ——every 6 welding heads need a water cooling transformer.


5. Wire feeding method: The line wires from coil wire.The cross wires should be pre-straightened and pre-cut. The cross wire system is controlled by stepping motor. The chicken cage mesh welding machine will stop working when the cross wire used up in the hopper.

6. input the length of mesh and mesh opening in the control cabinet.The mesh cutting machine will cut the mesh panel length when reach the setlled mesh length.

7. The chicken cage mesh welding machine uses a copper sheet to connect the welding head and the transformer. Has a long service life.

8. Welding time and welding current are regulated separately. It is easy to establish when the diameter of the wire is changed.

9. Material:Suitable for low carbon iron wire, black annealed wire or galvanized wire.

10.The distance from factory power transformer to chicken cage mesh welding machine within 100m. The factory power transformer need 80KVA for supply machine running.

Technical details

Wire diameter 2.5--5.0mm Line wire form From coil
Line wire distance

100mm

(adjustable)

 Weft wire form Pre-cut wire
Cross wire distance

30/80/85/90mm

(adjustable)

 Rated voltage 380V 50HZ(customize)
Welding panel width Max 1200mm Transformer power 150KVAx2PCS
Welding speed 0--80 times/min Panel Length As required
Welding electrodes 13 Dimension 5m*2.1m*1.6m
Machine weight 3.2T Motor power 4.0KW

Application: Cages Fence Mesh and Construction Wire Mesh.

Width 1200mm Automatic Chicken Cage Mesh Welding Machine For Domestic animals

Width 1200mm Automatic Chicken Cage Mesh Welding Machine For Domestic animals

Width 1200mm Automatic Chicken Cage Mesh Welding Machine For Domestic animals
