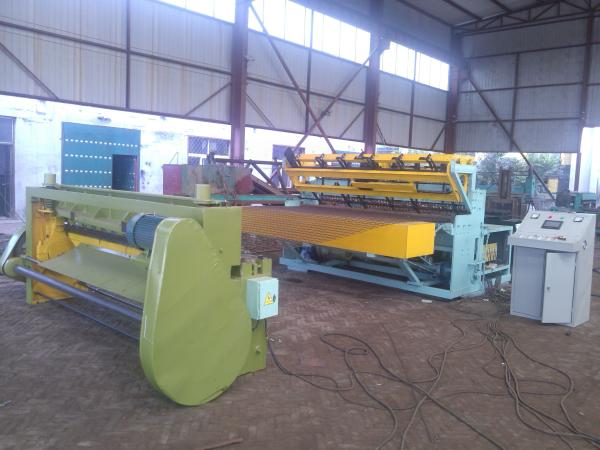

Automatic Steel Wire Mesh Welding Machine 40 - 60 Times / Min For Airport
Automatic Steel Wire Mesh Welding Machine 40 - 60 Times / Min For Airport
Automatic Steel Wire Mesh Welding Machine 40 - 60 Times / Min For Airport
Automatic Steel Wire Mesh Welding Machine 40 - 60 Times / Min For Airport
Automatic Steel Wire Mesh Welding Machine 40 - 60 Times / Min For Airport
Automatic Steel Wire Mesh Welding Machine 40 - 60 Times / Min For Airport
Specifications
Brand Name :
MLG
Model Number :
WHJ-2500
Certification :
CE
Place of Origin :
Hebei China
MOQ :
One set
Supply Ability :
4--5 sets per month
Delivery Time :
40 days after receiving deposit or L/C.
Packaging Details :
The spare parts and control cabinet will be loaded in wooden box. The main machine is nude packing.it need one 20 ft container.
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Width of mesh :
Max 2500mm
Mesh size :
50*50--200*200mm
Length of mesh :
According to your requirement
Welding speed :
40--60 times per min
Transformer :
160KVA*6
Control system :
Mitsubishi PLC
Description

Best Price Automatic Fence Mesh Panel Welding Machine Used In Airport

Main features:

(1) Integrative welding machine——controlled by PLC


(2) Adjustable of distance of line wires——input the date of cross wires space, any character can reach.


(3) Cross wires putting in device——better than before, having applying the patent.


(4) Adopt auto welding by software——reduce the demand for electricity and pollution of electricity grid.


(5) The welding pressure is even and identical——guarantees the high quality of all the welding spots.

(6) Wire feeding way:cross wires and line wires should be pre-straightened and pre-cut.

(7) 160KVA Transformer with separately welding controller with water cooling transformer.


(8) Electric motor: General motor, equipped with a frequency adjustable motor

(9) The greatest advantage is that you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.


(10) Material:Suitable for low carbon iron wire, deformed bar or galvanized (cold galvanized, hot galvanized) processing

Main parameters-- Automatic Mesh Welding Machine/Welded Steel Bar Mesh Machine

Model Model No. MLG 2500 Wire diameter 2--6mm
Line wire spacing 50--200mm Cross wire spacing 50--200mm
Welding Mesh width 2500mm Welding Mesh length Max 6000mm
Welding points 51pcs Welding speed 50--60 times/min
Welding transformer 160KVAX6pcs Mesh drawing system Servo motor back and forth
Cross wire Pre-straightened and precut Line wire Pre-straightened and precut
Power 380V 60HZ 3phase(customized) Motor 4.0KW
Weight 4.4T Dimensions 7*3.2*1.7m

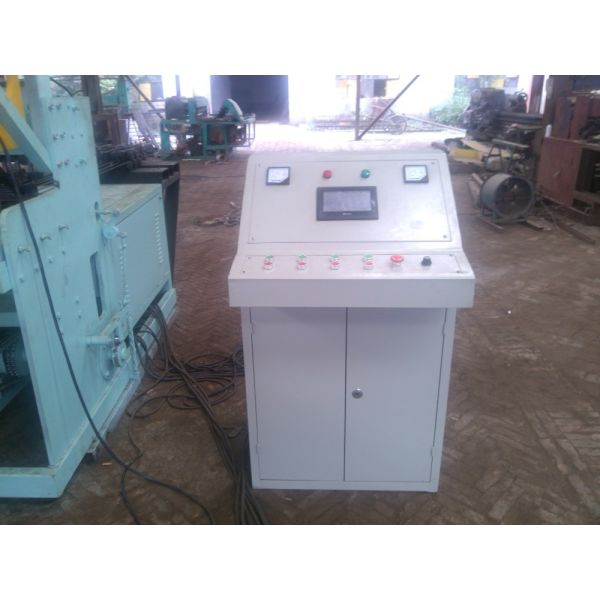

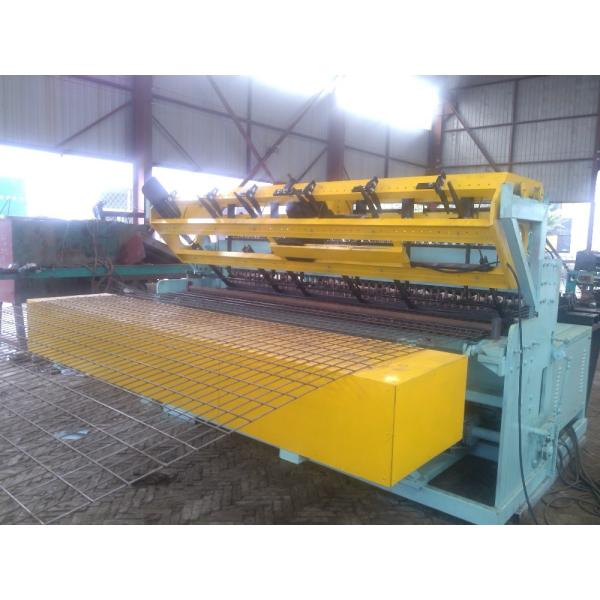

Detailed pictures-- Automatic Mesh Welding Machine/Welded Steel Bar Mesh Machine

Automatic Steel Wire Mesh Welding Machine 40 - 60 Times / Min For Airport

Automatic Steel Wire Mesh Welding Machine 40 - 60 Times / Min For Airport
