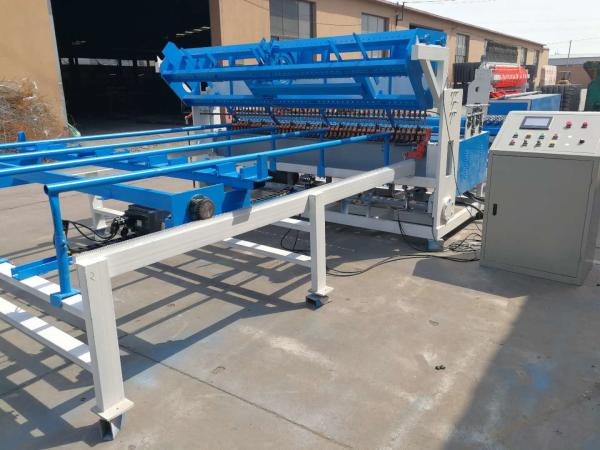

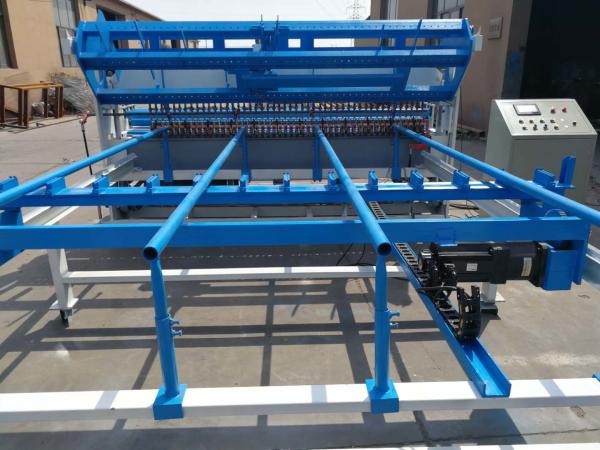

Automatic welded Mesh Production Line In Roll Mesh 4.0KW
Automatic welded Mesh Production Line In Roll Mesh 4.0KW
Automatic welded Mesh Production Line In Roll Mesh 4.0KW
Automatic welded Mesh Production Line In Roll Mesh 4.0KW
Specifications
Brand Name :
MLG
Model Number :
MLG-WHJ-2500B
Certification :
CE
Place of Origin :
Hebei China
MOQ :
One set
Supply Ability :
10 sets per month
Delivery Time :
20 days
Packaging Details :
The main machine is covered by plastic film. The control cabinet put into wooden box.
Product name :
Automatic welded Mesh Production Line
Motor :
4.0KW
Weight :
4.5T
Dimension :
6000mmx3200mmx1700mm
Capacity :
270--300m per hour
Width of mesh :
2400mm
Mesh opening :
100x100mm--300x300mm
Mesh type :
In roll mesh
Description

Latest Technology Automatic welded Mesh Production Line In Roll Mesh

Product description

1 The control system adopts synchronous CNC technology,Mitsubishi PLC program and HMI. It is easy and convenient to operate with the touching screen.
2 The fallen wire system is controlled by stepping motor instead of putting wefts wires by manual work, increasing productivity.
3 Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to control cabinet by touch screen, any mesh opening can be reach. Welding aperture can adjust randomly within range.
4 The length of mesh can be adjustable in the control cabinet. Such as you need produce length of mesh 50m in roll. mesh size 10*10cm. So input quantity of mesh opening 50 into the control cabinet by touch screen.The machine will produce length of mesh 50m in roll.
5 Mesh pulling system is controlled by servo motor.
6 Welding transformer:160KVA*4(24 welding heads) ——every 6 welding heads need a water cooling transformer.
7 Wire feeding way:The line wires from coil wire. and cross wires should be pre-straighten and pre-cut.

Technical details:

Wire diameter 2.5--5.0mm Line wire form From coil
Line wire distance 100--300mm Weft wire form Pre-cut wire
Cross wire distance 100--300mm Rated voltage 380V 50HZ
Welding mesh width Max 2400mm Transformer power 4X160KVA
Welding speed 45--60 times/min Length of mesh 80m in roll
Welding spots 24 Dimension 6m*3.2m*1.7m
Machine weight 4.3T Motor power 4.0KW

Applications;

The finished product roll mesh is widely used in grassland protection. building construction and so on.

Automatic welded Mesh Production Line In Roll Mesh 4.0KW

Automatic welded Mesh Production Line In Roll Mesh 4.0KW

Automatic welded Mesh Production Line In Roll Mesh 4.0KW

Automatic welded Mesh Production Line In Roll Mesh 4.0KW
