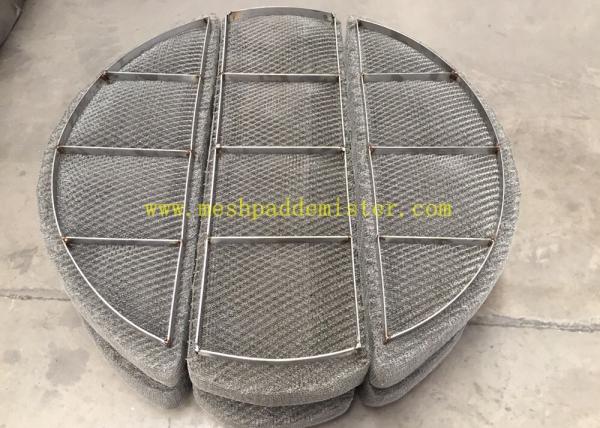

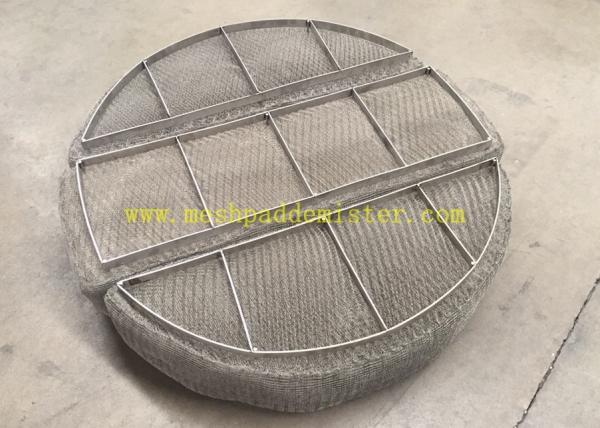

Fast Delivery Wire Mesh Demister , Demister Pad Use Quick Response
Fast Delivery Wire Mesh Demister , Demister Pad Use Quick Response
Fast Delivery Wire Mesh Demister , Demister Pad Use Quick Response
Fast Delivery Wire Mesh Demister , Demister Pad Use Quick Response
Specifications
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pc
Price :
to be negociated
Payment Terms :
T/T, L/C
Supply Ability :
1999 pcs per month
Delivery Time :
5-8 days
Packaging Details :
wooden box, pallet
Material :
321SS
Application :
gas liquid separation
Product name :
mesh pad demister
Size :
as per order
Feature :
high efficiency with low pressure drop
Weave style :
single wire knitting
Description

2020 demister pad quick response fast delivery custom order service

Demister Pad Work Theory:

(1)A vapor stream carrying entrained liquid droplets passes through a demister pad. The vapor moves freely through the knitted mesh.

(2)The inertia of the droplets causes them to contact the wire surfaces and coalesce.

(3)The large, coalesced droplets formed in the mesh ultimately drain and drop to the vessel bottom.

​​

Demister Pad Diameter 900 technical data:

Item Value Unit
Material 321SS /
Shape & Size Φ900 mm
Mesh Thickness 100 mm
Demsiter Height 150 mm
Wire Diameter 0.23 mm
Mesh Density 144 kg/m3
Void Fraction 0.982 /
Specific Area 321 m2/m3
Grids 25*3 flat bar mm

Demister Pad Material:

1. Metallic Mesh Pads: Materials for metallic Mist Eliminators are as per customer need. Type 304 or Type 316 mesh pads can be in accordance with ASTM A-478. Monel mesh pads can be in accordance with ASTM B-164.

2. Non-metallic Mist Eliminators: Non-metallic Mist Eliminators shall be PTFE or polypropylene as specified in by customer.

Demister Pad Manufacturing:

A. Mist Eliminators shall be fabricated in one piece or in the minimum number of sections required for insertion through the vessel manway.
B. Mesh pads shall fit tightly into the pad containment system.
C. Mesh pad layers shall not be more than 9 inches (230 mm) thick. Where more than one layer is required, joints shall be staggered.

D. One-piece circular mesh pads may be spiral in form.

With 12 years' experiences, team is ready to provide considered service! Welcome your contact!
