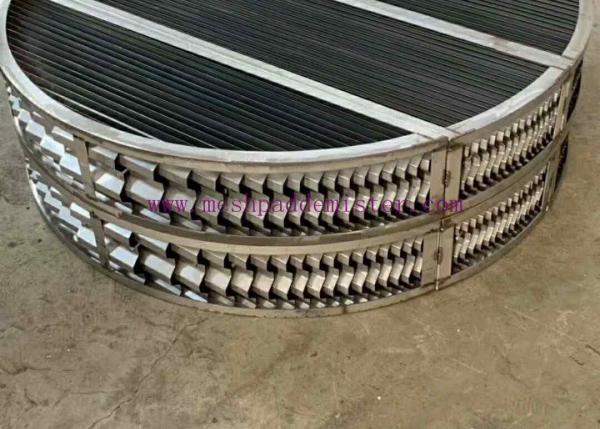

316L Vane Plate Mist Eliminator with custom hooks and frames

1. High efficiency vane plate mist eliminator technical specification

This technical specification is applicable to the absorber demister, including the technical requirements for the functional design, structure, performance, manufacture, installation, supply, commissioning and test of the body and auxiliary equipment system of two-stage high-efficiency flat demister.

We will make it in strict accordance with the drawings provided by the customer and meet the technical requirements on the drawings. Any modification or change to the drawings must be approved by the customer.

All equipment and components provided by the manufacturer are mature and reliable and advanced in technology. After several years of operation, it has been proved to be a fully mature and reliable product.

2. Vane plate mist eliminator datasheet,

Table 3 data sheet of demister
1. Project No.:
2. Equipment name Vane demister
3. Quantity In use quantity 1
Spare parts quantity 0
Total quantity 1
4. Purpose

Removal of slurry droplets in FGD emission

And control the dust emission concentration at the outlet of absorption tower
5. Basic design conditions
1) Characteristics of flue gas
(1) Name of flue gas Flue gas after dust removal and desulfurization
(2) Flue gas flow at absorber inlet m3/h 31000
(3) Dust concentration at absorber inlet mg/Nm3 ≤20(Standard state dry basis,3%O2)
Flue gas flow at absorber outlet m3/h 32500
Flue gas velocity m/s ≤2.0
(4) Outlet temperature of absorption tower ℃ 45
(5) pressure kPa･G 1.0
(6) Expected flue gas composition See Table 1
(7) Expected droplet composition
H2O (liquid) wt% ~95
Na2S (solid) wt% 4
Na2HS (solid) wt% 1
Droplet characteristics
Density kg/m3 ~1020
PH － 7~10
Viscosity cPa <3
2) Type of demister As per order
3) Installation position Upper part of absorber
6. Structural design conditions
1) Standards, specifications As per order
2) Design pressure of absorber kPa·G -1.0~+5.0
9) Design temperature(maximum temperature and time of mist eliminator) Depends on material
Shell ℃/min
demister ℃/min
3) Corrosion allowance
4) Shell size of demister Inner diameter of absorption section of absorption tower Φ 2.6m
5) texture of material
  • Absorber shell
  • Demister body
 304, 316L, 2205, 2507, TA2, etc.
  • Flushing nozzle
  • Internal flushing pipe fittings
  • Internal support

3. Vane plate mist eliminator technical characteristics:

Unique design, without dead angle of demisting in the whole tower, triangle installation form, good stability, unique angle design. Hook on the chevron plate is an option, to gain droplet collection acceleration, and improve separation efficiency.

4. Vane plate mist eliminator working theory:

The gas stream flow through the first and second vane packs to eliminate the target-size mist. The standard module of the first stage vane pack demister is with pitch of vane 30mm, and the standard module of the second stage vane pack demister is with pitch of vane 25mm. The vane plates are fixed by positioning rods (both the upper part and the lower part are fixed). The positioning rods and each chevron plate have corresponding round holes, which are penetrated vertically with round rods, and the chevron plates and positioning rods are penetrated into the fastener layer by layer. Then it is welded with the blade to ensure that the positioning rod and the round rod will not fall off, and at the same time, the bearing capacity of the vane pack demister is increased.

5. Vane plate mist eliminator in flue gas desulphurization industry

Flue gas desulphurization industry is becoming more and more important as we pay more attention and effort to the environmental protection all over the world. In Hualai we produce vane pack demister mist eliminators for years, we are expecting to make more contributions to this global action. Welcome your contact anytime!

6. More Hualai experiences in custom made vane plate mist eliminator,

316l Vane Plate Wire Mesh Mist Eliminator With Custom Hooks / Frames

With over 12 years experiences in demister, mist eliminator, tower packing and tower internals, we are capable to help customers from designing, manufacturing, shipping and installing. Welcome your inquiry!
