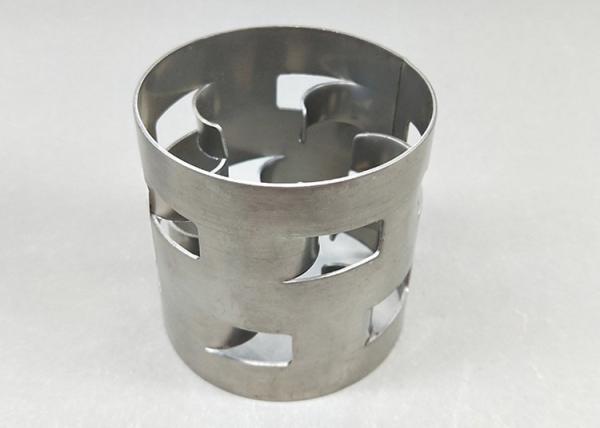

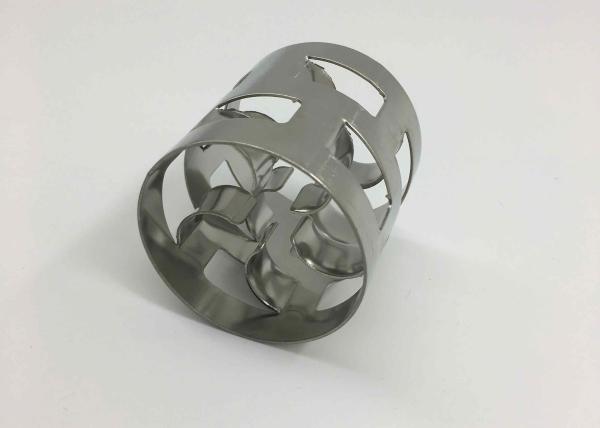

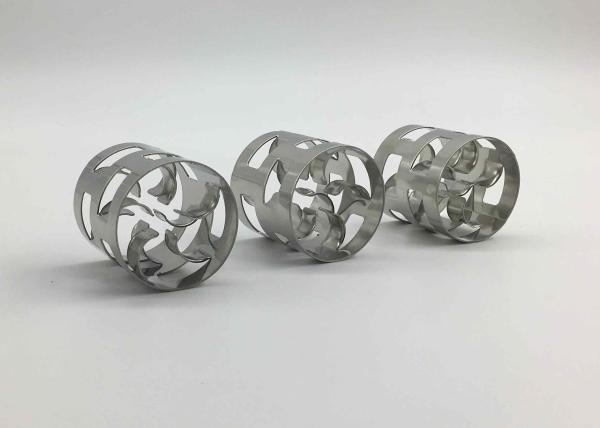

Stainless Steel Pall Ring Like 6mm 90mm 0.3-1.2 MM Wall Thickness

When we talk about metal pall rings, we know it is an active market with many users and suppliers. The users are trying to use it in more and more applications effectively. And the factories are improving the production methods and efficiency. Sometimes an innovation comes out of the mutual communication, which has enriched the scope of metal pall rings we usually talk about. For example, except the normal sizes of metal pall rings, we do know there are some new sizes being produced. If they are more suitable to your project than normal sizes in your opinion, we are happy to be able to help with those. Please refer to an enriched specification table below:

The applications of metal pall rings:

1. Liquid extractors;

2. NH3 extraction devices;

3. Ethylene extraction columns;

4. Carbon monoxide converters;

5. Petrochemical and medical equipment.

6. Dimethyl terephthalate running column;

7. Mass-transfer columns separation devices;

8. Carbon dioxide and hydrogen sulphide absorption and flash tower;

Pall ring takes an advantage that as random packing being mass produced with standard elements, the delivery periods are relatively short from storage. Because the pall ring can be used in many applications regardless the size of columns, we hold a stock of most types of random packings for fast delivery.

Random column packing is packaged and shipped by volume. A volume adjustment factor must be applied to the calculated column. Geometric volume to estimate the shipping volume required to properly fill a packed bed to account for edge and settling effects. The volume adjustment factor depends upon the packing shape and size and the bed diameter.

A contingency allowance for installation losses, typically around 5%, should be added to the shipping volume calculated above.

Welcome your inquiry with any questions!
