SS304 SS316L Pall Ring Various Sizes Similar Cylindrical Dimensions
SS304 SS316L Pall Ring Various Sizes Similar Cylindrical Dimensions
SS304 SS316L Pall Ring Various Sizes Similar Cylindrical Dimensions
SS304 SS316L Pall Ring Various Sizes Similar Cylindrical Dimensions
Specifications
Certification :
ISO9001
Place of Origin :
China
MOQ :
0.01 cubic meters
Price :
negociation
Payment Terms :
L/C, T/T
Supply Ability :
99 cubic meters per month
Delivery Time :
5-9 days
Packaging Details :
carton, bag, pallet
Material :
SS304, SS316L, other
equal inch type :
1in, 2in, 3in, other
wall thickness :
0.3-1mm
data sheet :
available
OEM :
Yes
Material certificate :
Yes
Description

SS304 SS316L Pall Ring Various Sizes Similar Cylindrical Dimensions

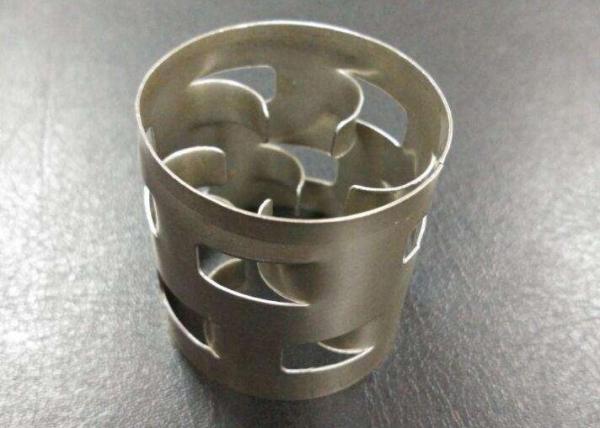

As an improvement of raschig ring, the pall ring has similar cylindrical dimensions. But the pall ring has two rows of punched holes with tongues turned into the center of the cylinder, which significantly increases the performance of the pall ring packing, in terms of capacity, efficiency and pressure drop.

We are able to offer our Pall Rings in a variety of materials such as grade 304, 316, or 430 Stainless Steel, Carbon Steel, Copper or special alloys.

Technical Data of metal pall rings:

16mm Pall Rings
Free Space (%) 93 SS304 SS316L Pall Ring Various Sizes Similar Cylindrical Dimensions
Specific Surface Area (m2/m3) 316
No. Per Unit Volume (m3 ) 210,000
Packing Factor (m-1) 315

Specific Weight (kg/m3) 400 – 535

Stainless Steel
Dimensions (mm) 16 x 16
Thickness (mm) 0.3 – 0.4
Normal Material stainless steel 304, 316L
25mm Pall Rings
Free Space (%) 94 SS304 SS316L Pall Ring Various Sizes Similar Cylindrical Dimensions
Specific Surface Area (m2/m3) 209
No. Per Unit Volume (m3 ) 49,500
Packing Factor (m-1) 176

Specific Weight (kg/m3) 322 – 644

Stainless Steel
Dimensions (mm) 25 x 25
Thickness (mm) 0.4 – 0.8
38mm Pall Rings
Free Space (%) 95 SS304 SS316L Pall Ring Various Sizes Similar Cylindrical Dimensions
Specific Surface Area (m2/m3) 122
No. Per Unit Volume (m3 ) 13,450
Packing Factor (m-1) 107

Specific Weight (kg/m3) 200 – 400

Stainless Steel
Dimensions (mm) 38 x 38
Thickness (mm) 0.4 – 0.8
Normal Material stainless steel 304, 316L
50mm Pall Rings
Free Space (%) 96 SS304 SS316L Pall Ring Various Sizes Similar Cylindrical Dimensions
Specific Surface Area (m2/m3) 100
No. Per Unit Volume (m3 ) 6,000
Packing Factor (m-1) 107

Specific Weight (kg/m3) 196 – 354

Stainless Steel
Dimensions (mm) 50 x 50
Thickness (mm) 0.5 – 0.9
Normal Material stainless steel 304, 316L

FEATURES of all sizes of pall rings:

Easily wettable

High resistance to fouling

High temperature endurable

High temperature applications

HIGH MECHANICAL STRENGTH

High capacity with low pressure drop

Mechanically robust, lesser probability of breakage

Good liquid/gas distribution and high mass transfer efficiency

Pall Rings APPLICATIONS

Various separation and absorption applications at atmospheric pressure and under vacuum, where a low pressure drop is critical

Quench towers

H2S, NH3 & SO2 absorption and stripping Steam stripping

Direct contact cooling Reaction Towers Distillation Columns

SS316L Metal pall rings in various sizes:

SS304 SS316L Pall Ring Various Sizes Similar Cylindrical Dimensions

Welcome your inquiry with any questions!
