10mm Metal Pall Ring AISI 304 Stainless Steel 3/8 Inch Type Delivery
10mm Metal Pall Ring AISI 304 Stainless Steel 3/8 Inch Type Delivery
10mm Metal Pall Ring AISI 304 Stainless Steel 3/8 Inch Type Delivery
10mm Metal Pall Ring AISI 304 Stainless Steel 3/8 Inch Type Delivery
10mm Metal Pall Ring AISI 304 Stainless Steel 3/8 Inch Type Delivery
10mm Metal Pall Ring AISI 304 Stainless Steel 3/8 Inch Type Delivery
Specifications
Certification :
ISO9001
Place of Origin :
China
MOQ :
0.01 cubic meters
Price :
negociation
Payment Terms :
L/C, T/T
Supply Ability :
99 cubic meters per month
Delivery Time :
5-9 days
Packaging Details :
carton, bag, pallet
Material :
AISI 304
equal inch type :
3/8 inch
wall thickness :
0.3mm
diameter :
10mm
height :
10mm
data sheet :
available
Description

10mm Metal Pall Ring AISI 304 Stainless Steel 3/8 Inch Type Delivery

Pall ring takes an advantage that as random packing being mass produced with standard elements, the delivery periods are relatively short from storage. Because the pall ring can be used in many applications regardless the size of columns, we hold a stock of most types of random packings for fast delivery.

Metal pall ring's specification:

diameter×height×thickness
(mm)		 specific surface area
(m2/m3)		 Porosity
(m3/m3)		 Number in 1 m-3 Density of the pile
(kg/m3)		 Dry filler factor
F
76×76×1.2 71 0.961 1830 308 80
50×50×0.8 109 0.960 6500 314 124
38×38×0.6 146 0.959 15180 318 165
25×25×0.5 219 0.950 51940 393 255
16×16×0.3 362 0.949 214000 396 423

Random column packing is packaged and shipped by volume. A volume adjustment factor must be applied to the calculated column. Geometric volume to estimate the shipping volume required to properly fill a packed bed to account for edge and settling effects. The volume adjustment factor depends upon the packing shape and size and the bed diameter.

A contingency allowance for installation losses, typically around 5%, should be added to the shipping volume calculated above.

Strict conformity with recommended installation procedure is necessary to ensure consistent duplication of design performance. Installation techniques that result in installation crew walking on or raking the packing must never be employed. Incorrect installation procedures can result in substantial packing shortfall (i.e. installed volume not sufficient for the required bed height resulting in performance losses).

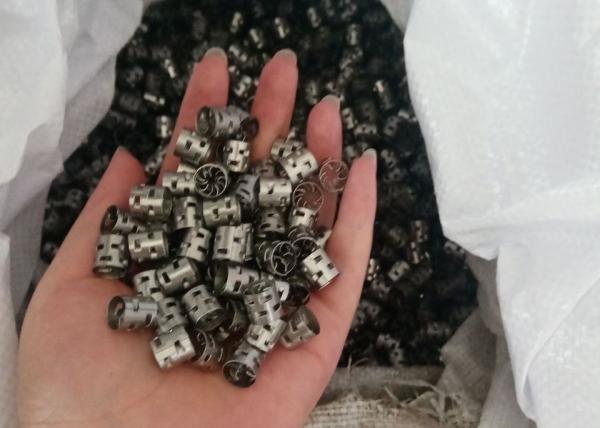

AISI304 metal pall rings bulk package ready for shipping:

10mm Metal Pall Ring AISI 304 Stainless Steel 3/8 Inch Type Delivery

Welcome your inquiry with any questions!
