Ss 304 2 Inch 50mm Metal Intalox Saddle Rings
Ss 304 2 Inch 50mm Metal Intalox Saddle Rings
Ss 304 2 Inch 50mm Metal Intalox Saddle Rings
Ss 304 2 Inch 50mm Metal Intalox Saddle Rings
Specifications
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
0.1 cubic meter
Price :
USD 1999-3999 / cubic meter
Payment Terms :
L/C, T/T
Supply Ability :
99 cubic meters per month
Delivery Time :
7-15 days
Packaging Details :
pallet+ton bag, wooden box, as per order
Material :
SS304, SS316L
Size :
15#, 25#, 40#, 50#, 60#, 70#
application :
distillation tower, absorbing tower, etc.
Feature :
low pressure drop, high efficiency
OEM :
Yes
Shape :
Saddle ring
Description

SS304 2inch 50mm Stainless Steel Metal Random Packing Imtp Intalox Saddle Rings

1. Metal Saddle Rings Introduction:

Metal saddle ring is a new type of high efficiency random packing developed in the 1990s. It is used mainly in new packing tower. The towers can be 35% lower in height, or 30% smaller in diameter than previous towers. In other words, the metal saddle ring increased 10-30% in efficiency, and reduced 20-60% in pressure drop. In China, the experimental study of dry distillation, rather than wet distillation, shows that the investment can be reduced by 20%. Generally speaking, the adoption of metal saddle ring can increase the production, low energy consumption and cost, and improve the separation efficiency.

2. Metal Saddle Rings Size Specification:

50mm Stainless Steel 304 Saddle Ring:

Nominal size

50 mm saddle rings

Thickness

0,4 mm

Weight

158 kg/m³

Surface area

115 m²/m³

Void fraction

97 %

Material

stainless steel

Available material

carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

3. Metal Saddle Ring Packing Characteristics and Benefits:

1. High capacity and low pressure drop allow for smaller column diameter.

2. High efficiency and capacity

3. High mechanical strength

4. Available in a variety of sizes and materials

4. Metal Saddle Ring Application:


» Degassing
» CO2 absorption
» Air pollution control
» Ammonia absorption
» High pressure and vacuum towers

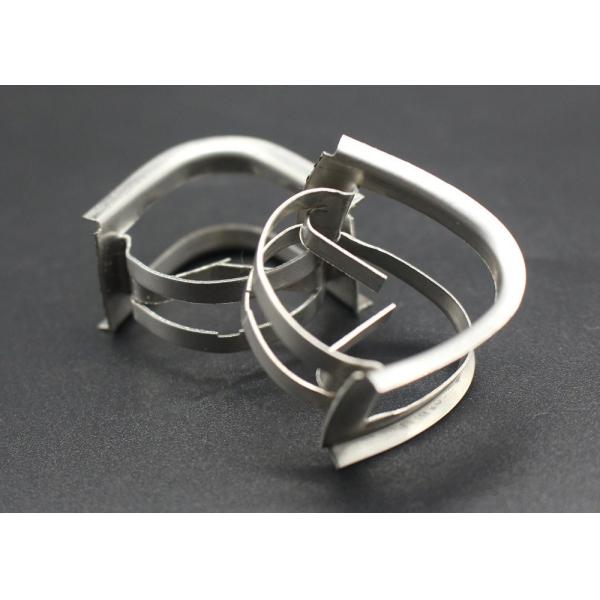

5. Metal Saddle Ring Side View:

Ss 304 2 Inch 50mm Metal Intalox Saddle RingsSs 304 2 Inch 50mm Metal Intalox Saddle Rings

Ss 304 2 Inch 50mm Metal Intalox Saddle Rings
