Water Cooling Electrode 10*10cm Deformed Steel Bar Mesh Welding Machine

Introduction of Deformed Steel Bar Mesh Welding Machine:

Deformed Steel Bar Mesh Welding Machine is a special equipment for the production of reinforcing mesh. The Deformed Steel Bar Mesh Welding Machine uses the principle of multi-electrode resistance welding to weld the longitudinal bar and transverse bar into a solid mesh according to the set requirements. The Deformed Steel Bar Mesh Welding Machine is composed of welding mechanism, longitudinal bar, transverse bar feeding mechanism, mechanical mesh mechanism, pneumatic system, electrical control system, cooling system and other components. The raw material can be cold-rolled ribbed steel bar, cold-rolled smooth steel bar or hot-rolled steel bar.

Features of Deformed Steel Bar Mesh Welding Machine:

The welding current of the Deformed Steel Bar Mesh Welding Machine is controlled synchronously by microcomputer, and the welding current and time of each welding transformer can be adjusted separately. The operation interface of the machine adopts color touch screen and control button, which makes the operation convenient and simple. The main machine of the new steel mesh welding machine is frame structure, stable performance, continuous adjustable welding pressure, solid welding joint, beautiful. The power of the new steel mesh welding machine is an integrated deceleration electromagnetic brake motor, controlled by frequency converter, adjustable speed, modular design of upper and lower electrodes, convenient and quick mesh adjustment, the cross wire hopper is the stepper motor driven disc device to take wire, the electric magnetic reinforcement device automatically sends the cross wire into the disc device preparation area from the large bin, the cross wire hopper is installed on the movable mesh rack. Convenient adjustment and maintenance, the mesh part is driven by servo motor, can set a variety of transverse wire spacing on the same mesh, continuous reciprocating mesh, to achieve lengthening size mesh, using pneumatic clamping device, so that the transverse wire spacing is accurate, the longitudinal feeding part of the stepper motor to drive the wire feed car, can be placed in the mesh welding at the same time, the next mesh of the longitudinal wire. Keep the machine working at short intervals.

Technical Parameters of Deformed Steel Bar Mesh Welding Machine:

Applications of Deformed Steel Bar Mesh Welding Machine:

The application of deformed steel bar mesh in industrial and civil housing beam and column floor, roof, wall, concrete pavement, bridge deck pavement, airport runway, tunnel lining, box culverts, dock floor, prefabricated components.

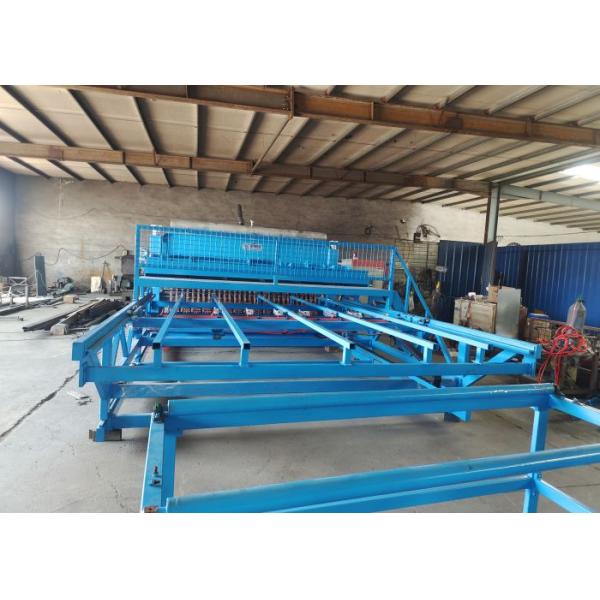

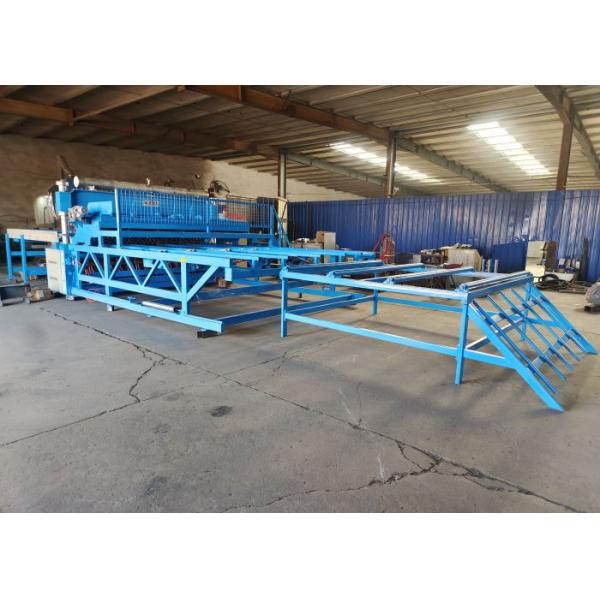

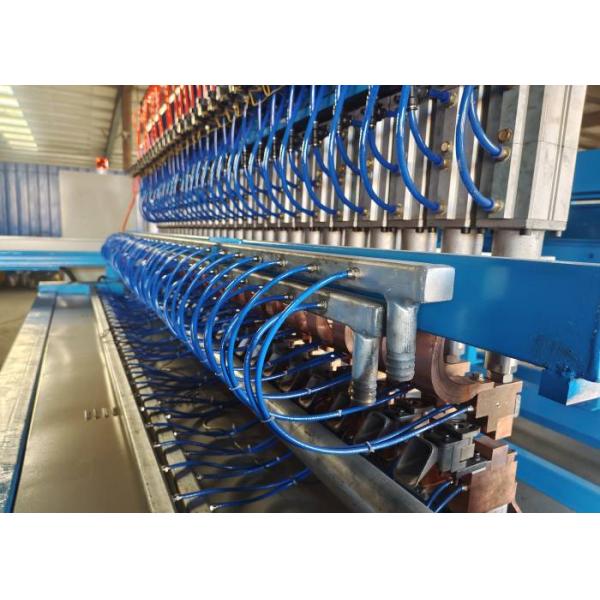

Photos of Deformed Steel Bar Mesh Welding Machine:
