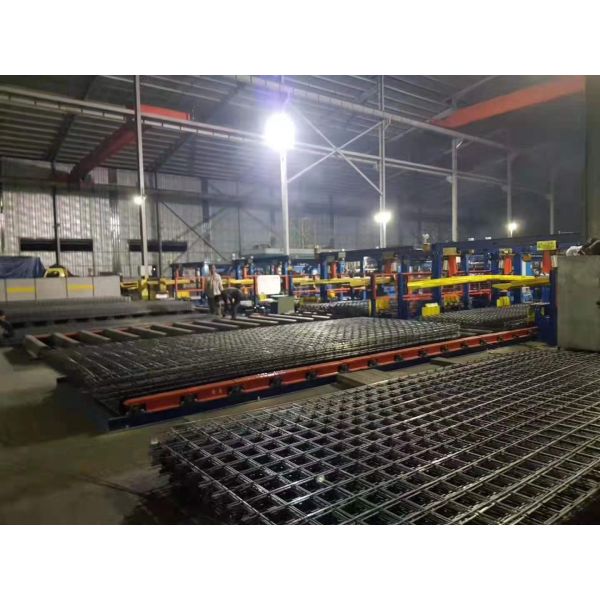

Pneumatic Welding Mesh Size 100*100mm Reinforcing Steel Bar Mesh Welding Machine

Reinforcing Steel Bar Mesh Welding Machine Introduction:

The reinforcing steel bar mesh welding machine is our latest product to make reinforcing panel mesh. The reinforcing steel bar mesh welding machine is working by resistance welding working principle to achieve machine working. And the machine has automatic falling mesh device. By doing so. Save labor cost and increase production capacity. We have exported many machines to different countries. Clients are very satisfied with our machine.

Reinforcing Steel Bar Mesh Welding Machine Features:

1. The control system of the reinforcing steel bar mesh welding machine adopts synchronous CNC technology, Mitsubishi or Panasonic PLC program and HMI.

2. The control cabinet adopt touch screen and keyboard, you can change welding time and weft wire hole mesh size through touch screen. And has language in English.
3. The weft wires are fed from the hopper device automatically and is controlled by step motor.The stepper motor drives the disk-type device to drop wires automatically. The weft wire store device has more capacity can load max 1.5 tons rebar.
4. Adjustable distance of line wire that allows different mesh hole size between the line wire, when input the distance of cross wire to computer, any mesh opening can be reach. The minimum cross wire space is 100mm, Max up to 300mm.
5. The main engine adopts imported and famous pneumatic components, making the service life long.
6. The mesh pulling system is controlled by Panasonic servo-motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.
7. The reinforcing steel bar mesh welding machine equips with 32 pieces of typical and efficient water-cooling welding transformers, The capacity of welding transformer is 160KVA*16PCS (32 pcs of welding electrodes) ——every two welding electrodes need a water cooling welding transformer. The water-cooling welding transformer with epoxy resin are adopted, which is smaller in size and higher welding capacity in safety and reliability than traditional transformers.

Reinforcing steel bar Mesh Welding Machine Technical Parameters:

Reinforcing steel bar Mesh Welding Machine Applications:

Reinforcing panel mesh has been widely used in the construction industry, in addition to the production of precast reinforced concrete components, more is used in the cast-in-place concrete structural members: construction: multi-storey and high-rise industrial and civil housing construction (foundation, floor, floor, roof, wall, etc.);Transportation: concrete pavement of expressway, soft base section, bridge deck pavement, anti-crack of bridge pier surface, concrete ground of toll plaza, railway platform, station square and cargo concrete ground, concrete ground of airport runway, freight yard and square, tunnel lining, wharf and port, etc.;Municipal construction: overhead overpass surface pavement, square concrete ground, concrete pipe, fence, slope protection, etc.Water conservancy and electric power coal: water conservancy facilities, electric dam foundation, protective net, etc.;Others: flood control facilities, slope reinforcement, collapse protection, breeding industry, animal husbandry, etc.
