Specifications
Brand Name :
DIXUN
Model Number :
DX-LWJ-2440
Certification :
CE
Place of Origin :
China
MOQ :
One set
Payment Terms :
L/C, T/T
Supply Ability :
8 sets per month
Delivery Time :
30 working days
Packaging Details :
The Fixed Knot Livestock Wire Mesh Fence Machine is nude packing. Need one 20 feet container to load.
Product name :
Fixed knot fence machine
Type :
Fully Automatic
Width :
1500mm 2100mm 2440mm
Speed :
30row/min
Material :
Galvanized iron wire
Application :
Deer fence
Line wire diameter :
2.0-2.8mm
Stay wire diameter :
2.0-2.8mm
Knot wire diameter :
2.0-2.4mm
Length of roll :
Max. 220m
Workshop size :
20m*6m
Labor required :
One person
Production speed :
30 times per min
Machine weight :
7200kg
Description

Automatic Discharge Roll Mesh Siemens PLC Fixed Knot Deer Fence Weave Machine

Fixed Knot Deer Fence Weave Machine Introduction:

Fixed knot deer fence weave machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. It is developed after many years our company has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices. Product neat and beautiful, diverse specifications. Only 1 worker is available for operate machine, low manual labour cost, lower loss, material-saving.Great production capacity sustainable supply. Accordingly to Customers requirement. We support the customized includes package.100% new materials and the best production process. In consequence our defective rate is lower than 0.1%. Our Fixed Knot Deer Fence Weave Machine is popular in European and Russia market.

Fixed Knot Livestock Wire Mesh Fence Machine Technical Parameters:

Model DX-LWJ-1500 DX-LWJ-2100 DX-LWJ-2440
Mesh width 1524mm 2082mm 2438mm
Max line wire number 16 lines 18 lines 20 lines
Line wire space Min 76mm adjust Min 76mm adjust Min 76mm adjust
Cross wire space 75mm,150mm,300mm 75mm,150mm,300mm 75mm,150mm,300mm
Line wire size 2.0-2.8mm 2.0-2.8mm 2.0-2.8mm
Cross wire size 2.0-2.8mm 2.0-2.8mm 2.0-2.8mm
Fixed knot size 1.8-2.5mm 1.8-2.5mm 1.8-2.5mm
Max roll length 200m 200m 200m
Dynamical system adjustable-speed motor adjustable-speed motor adjustable-speed motor
Control system By PLC Panasonic Japan By PLC Panasonic Japan By PLC Panasonic Japan
Industrial voltage 220V 380V 440V 415V 220V 380V 440V 415V 220V 380V 440V 415V
Control system voltage DC 24V DC 24V DC 24V
Machine weight 5900kg 6500kg 7200kg
Machine dimension 3900x3500x2250mm 4450x3500x2250mm 4800x3500x2250mm

Fixed Knot Deer Fence Weave Machine Applications:

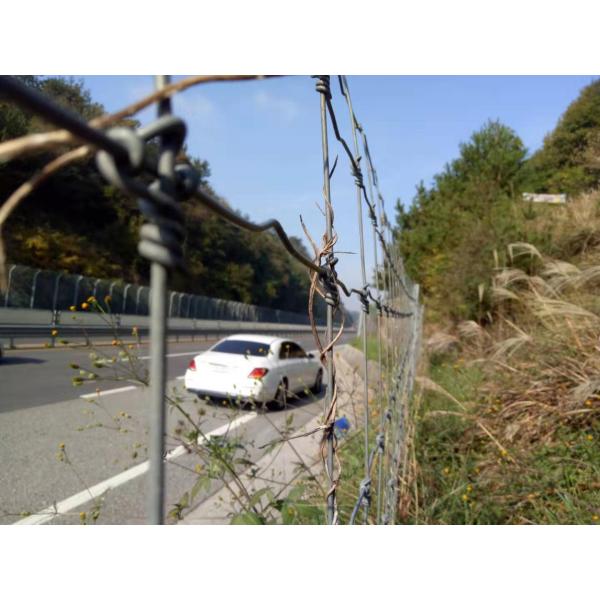

The fixed knot deer fence can build grassland and carry out fixed-point grazing, and graze in separate columns. It can facilitate the planned use of grassland resources, effectively improve grassland utilizationand grazing efficiency, prevent grassland degradation and protect the natural environment. At the same time, it is also suitable for establishing family farms with farmers and herdsmen to set up border guards, farmland fences, forest nurseries, hillsides for afforestation, tourist areas and hunting areas, isolation and maintenance of construction sites.

Fixed Knot Deer Fence Weave Machine Packing:

Discharge Roll PLC 2.8mm Fencing Wire Making Machine

Fixed Knot Deer Fence Weave Machine Photos:

Discharge Roll PLC 2.8mm Fencing Wire Making Machine

Discharge Roll PLC 2.8mm Fencing Wire Making Machine

Discharge Roll PLC 2.8mm Fencing Wire Making Machine

Discharge Roll PLC 2.8mm Fencing Wire Making Machine
