2.5mm Mesh Height 96 Inches Fixed Knot Fence Machine , Deer Fence Machine
2.5mm Mesh Height 96 Inches Fixed Knot Fence Machine , Deer Fence Machine
2.5mm Mesh Height 96 Inches Fixed Knot Fence Machine , Deer Fence Machine
2.5mm Mesh Height 96 Inches Fixed Knot Fence Machine , Deer Fence Machine
Specifications
Brand Name :
DIXUN
Model Number :
DX-LWJ-2440
Certification :
CE
Place of Origin :
China
MOQ :
One set
Payment Terms :
L/C, T/T
Supply Ability :
4 sets per month
Delivery Time :
35 working days
Packaging Details :
The Fixed Knot Field Fence Making Machine / Deer Fence Machine is nude packing. Need one 40 feet container.
Product name :
Fixed knot fence machine
Weight :
8500kg
Line wire size :
2.0-2.8mm
Stay wire size :
2.0-2.8mm
Edge wire size :
2.5-3.5mm
Fixed knot wire size :
1.8-2.5mm
Max weaving mesh width :
2440mm
Main motor :
11KW
Machine dimension :
4800x3500x2250mm
Production speed :
25-30 times per min
Description

Mesh Height 96 Inches Fixed Knot Field Fence Making Machine / Deer Fence Machine

Fixed Knot Field Fence Making Machine / Deer Fence Machine Introduction:

1. Simple structure in linear type ,easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Auto Wire-Stripping-Table releases finished rolls to the pickup zone and re-sets for windup, allows for the easy removal of any type of roll.
4. Running in a high automatization and intellectualization,no pollution
5. Twister-Bed the adoption of standard line wire settings is possible at both ends of the machine. Reducing the need to move line-wires is a major factor in reducing specification change time.

Fixed Knot Field Fence Making Machine / Deer Fence Machine Technical Parameters:

Product name Fixed Knot Field Fence Making Machine / Deer Fence Machine
Material High tensile strength galvanized wire
Line wire size 2.0-2.8mm
Stay wire size 2.0-2.8mm
Edge wire size 2.0-3.5mm
Fixed knot wire size 1.8-2.5mm
Max mesh height 96 inches (2440mm)
Number of line wire 20 lines
Control system PLC Panasonic.
Line wire space 3 inches 4 inches 5 inches 6 inches 7 inches.
Stay wire space 75mm,150mm,300mm,450mm
Max. mesh length 200m
Production speed 25-30 times per min
Main motor power 11KW
Power consumption 12-15KW/H
Labor cost One person
Machine weight 8500kg
Machine dimension 4800x3500x2250mm
Workshop size 20m*7m
Machine color As per your require

Fixed Knot Field Fence Making Machine / Deer Fence Machine Applications:

It is convenient for the planned use of grassland resources, effectively improve the utilization rate of grassland and grazing efficiency, prevent grassland degradation and protect the natural environment.
At the same time, it is also applicable to the establishment of family breeding farms with farmers and animal husbandry professionals, the establishment of border defense, farmland boundary fence, forest nursery, mountain closure, tourism areas and hunting areas, construction site isolation maintenance, etc.

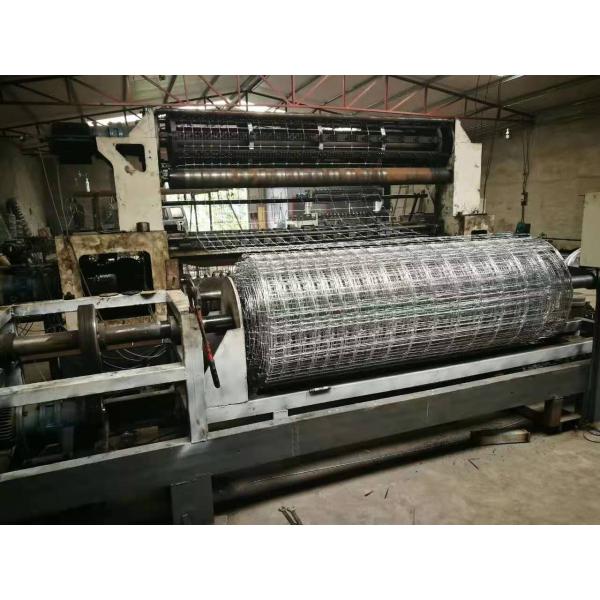

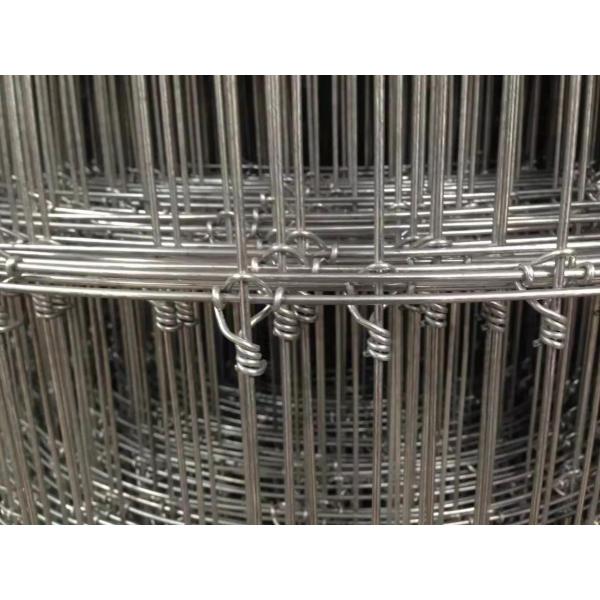

Fixed Knot Field Fence Making Machine / Deer Fence Machine Photos:

2.5mm Mesh Height 96 Inches Fixed Knot Fence Machine , Deer Fence Machine

2.5mm Mesh Height 96 Inches Fixed Knot Fence Machine , Deer Fence Machine

2.5mm Mesh Height 96 Inches Fixed Knot Fence Machine , Deer Fence Machine
