Mesh Size 200*200mm Building Mesh Reinforcing Steel Wire Mesh Welding Machine

Reinforcing Steel Wire Mesh Welding Machine Introduction:

1. This reinforcing steel wire mesh welding machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, separate welding. Surely,if the power supply is enough big,it can also adopt the welding at the same time.

2. Line wires adopt per-cut wires,line wires are put by hand based on the positioning device,then automatic tightening and send the down electrodes by sending line wires car installed with the step motor; When the mesh is being welded, line wires of the next mesh can be placed, which greatly shortens the working interval time of the machine.

3. Cross wires also adopt pre-cut wires,the cross wire hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of the device from the large storing hopper(storage up to 1000kg),it is installed in the removable pulling mesh rack,very convenient to adjust and maintain.

4. The transformers adopts big power at 160KVA every one,which can ensure the welding quality in good condition and adopt water cooling system,so the machine can work for 24 hours continuously.

5. Pulling mesh way adapts servo motor back and forward according to the setting parameters into the touch screen.

6. Welding wire diameter range of the device is 6-12 mm, the mesh size is 100-300mm, stepless adjustable. The maximum width of the welding wire mesh is 2500mm (also according to customer requirements).

7. There is an alarm device on the welding host that can improve the safety level and reduce the failure rate. The greatest degree of assurance of the equipment running smoothly.

Reinforcing Steel Wire Mesh Welding Machine Technical Parameters:

Reinforcing Steel Wire Mesh Welding Machine Applications:

Widely used in airport runway, expressway, tunnel, multi-storey high-rise buildings, water dam foundation, sewage treatment ponds, etc.
In the concrete structure, it has the advantages of improving structural strength, saving steel and reducing construction cost.

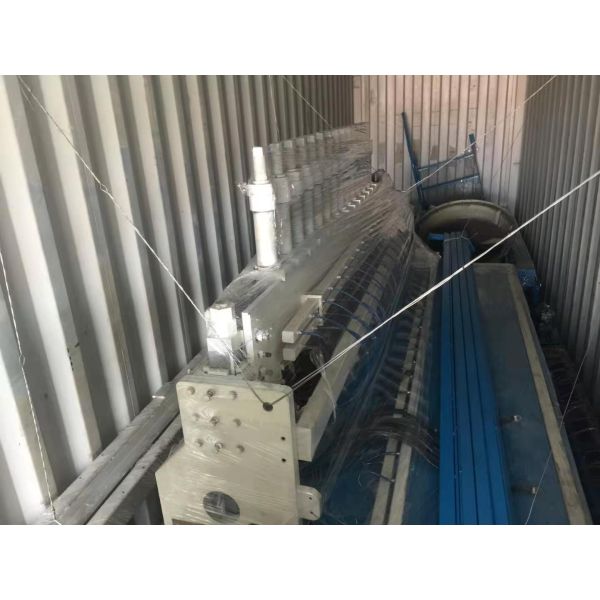

Reinforcing Steel Wire Mesh Welding Machine packing:

Reinforcing Steel Wire Mesh Welding Machine Photos:
