Cross Wire Hopper Load 5.5kw Welded Wire Mesh Machine
Cross Wire Hopper Load 5.5kw Welded Wire Mesh Machine
Cross Wire Hopper Load 5.5kw Welded Wire Mesh Machine
Cross Wire Hopper Load 5.5kw Welded Wire Mesh Machine
Specifications
Brand Name :
DIXUN
Model Number :
DX-GWCD-2500D
Certification :
CE
Place of Origin :
China
MOQ :
One set
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
30 working days
Packaging Details :
The Wire Mesh Welding Equipment is nude packing. Need one 20 feet container to load.
Product name :
Wire mesh welding machine
Wire diameter :
3-6mm
Warranty :
2 Years
Voltage :
220V/380V/415V/440V
Welding speed :
40-60times/min
Type :
Welding Wire Machine
Rated duty cycle :
50%
Rated capacity :
6*160KVA
Power :
5.5kw
Usage :
welding wire mesh fence
Cross wire space :
50mm-300mm
Line wire type :
Pre-straighten and pre-cut
Cross wire type :
Pre-straighten and pre-cut
Description

Cross Wire Hopper Load 100KGS Mitsubishi PLC Wire Mesh Welding Equipment

Wire Mesh Welding Equipment Introduction:

The wire mesh welding equipment is our latest type machine to make welded mesh panel. The wire mesh welding equipment has automatic line wire sending car to the welding machine. Save labor cost and increase productivity. The wire mesh welding equipment has a ladder for worker to put the cross wire. Very easy for workers to operate. And the cross wrie hopper device can load max 100KG cross wires.This is a big advantage for machine working.

Wire Mesh Welding Equipment Features:

1. Servo motor for mesh pulling working with Taiwan Gear rack, cross wire space more precise

2. Cross-wire pushing hopper with European technology, working faster and continuously.

3. Brake motor and reducer connect the principal axis directly.

4. Cast water-cooling transformer and lower welding electrode base.

5. Pure welding electrodes, 20*20*20mm

6. PLC control of cross wire space adjustment and welding current adjustment.

7. Line wire feeding car for Pre-straighten and pre-cut wires, working faster, and saving labor jobs.

8. Touch screen interface.

9. The electrical system from the international famous brand for precise control and smooth working.

1. Install: The machine need not install the anchor bolt, only need to put on the ground of plant.

2. Adjust: The weft wire space and warp space will be adjusted as your requirement.

All of the debugging working will be done in the factory manufacture by our engineers.

We will send the photos and video of the mesh machine to you.

3. Control systerm: PLC Control Systerm

4. Machine transformer: 120KVA, 160KVA, 180KVA, 200KVA, depened the machine wire diameter.

5. Machine cooling device: Water colling

6. Machine accessories: Wire straightening and cutting machine.

Wire Mesh Welding Equipment Technical Parameters:

Model DX-GWCD-2000D DX-GWCD-2500D
Welding speed 45-65 times per min 45-65 times per min
Machine weight 4.5T 5.5T
Machine dimension 8500*2700*1900mm 8500*3700*1900mm
Control system PLC Mitsubishi PLC Mitsubishi
Servo motor Panasonic Japan Panasonic Japan
Switch Schneider France Schneider France
Number of welding electrodes 40PCS 48PCS
Welding transformer Water cooling system Water cooling system
Line wire type Pre-straighten and pre-cut Pre-straighten and pre-cut
Cross wire type Pre-straighten and pre-cut Pre-straighten and pre-cut
Line wire space 50-200mm 50-200mm
Cross wire space 50-300mm 50-300mm
Labor cost Two persons Two persons

Wire Mesh Welding Equipment Applications:

Electric wire mesh welding machine, concrete mesh welding machine, used to make steel rebar mesh, road mesh, building construction mesh.

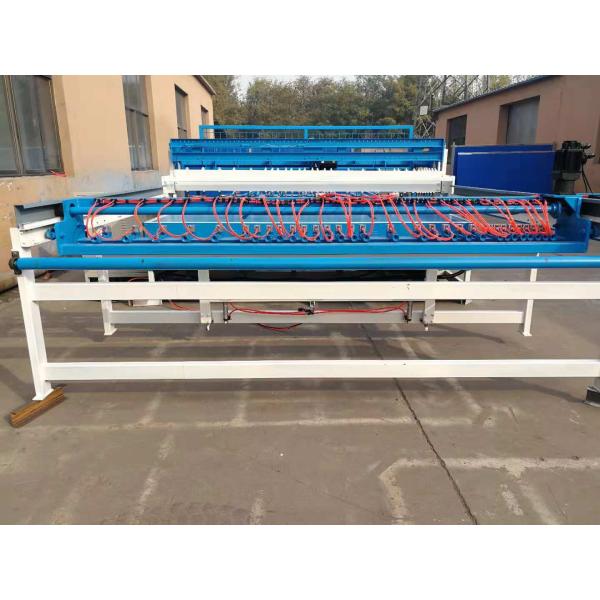

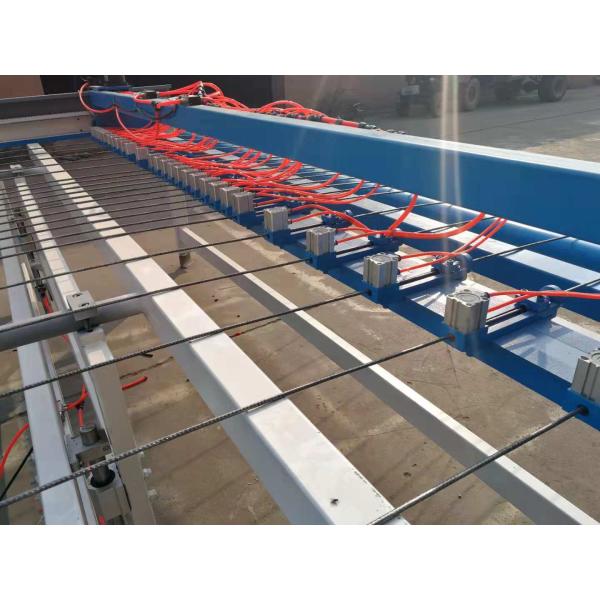

Wire Mesh Welding Equipment Photos:

Cross Wire Hopper Load 5.5kw Welded Wire Mesh Machine

Cross Wire Hopper Load 5.5kw Welded Wire Mesh Machine

Cross Wire Hopper Load 5.5kw Welded Wire Mesh Machine
