Construction Mesh High Speed Black Iron Wire Welded Wire Mesh Machine In Roll

Welded Wire Mesh Machine In Roll Introduction:

1. This welded wire mesh machine can make roll mesh. Line wires are fed from wire coils automatically and through straightening rollers. Cross wire should be pre-cut and fed by cross wire feeder automatically. Equipped with rolling machine to make roll mesh

2. The machine adopts welding electrodes- chromium zirconium copper Upper-20mm diameter Lower-20*20*20mm, can be used 6 sides,

The welding electrode distance can be adjusted.

3. Main motor 5.5kw planetary reducer connect the main axis directly, instead of by chain.It is not easily broken. High stability. Big transmission torque, suitable for high welding speed.

4. Cast water cooling welding transformers Suitable for high temperature.

When 2.5-4mm one welding transformer controls 8 welding electrodes. The mesh size is 50*50mm.

When 4-6mm, one welding transformer controls 4 welding electrodes. The mesh size 100*100mm, 150*150mm,200*200mm.

5. Panasonic brand servo motor 2.2 kw for mesh pulling, accurate, big power. Air cylinders controls the hook up and down.

6. The greatest advantage is that you can adjust the space of cross wire on the same one piece wire mesh sheet and only need to set the parameters required on the touch screen. Such as; you can also set the roll mesh length by touch screen. When the required roll mesh length is finished. The roll mesh mahcine stop working. The worker take out the roll mesh from the rolling mesh machine.

Welded Wire Mesh Machine In Roll Technical Parameters:

Welded Wire Mesh Machine In Roll Applications:

Widely used in industry, agriculture, construction, transportation, mining and other industries. It is mainly used for external walls of general buildings, pouring concrete, high-rise residential buildings.

Welded Wire Mesh Machine In Roll Packing:

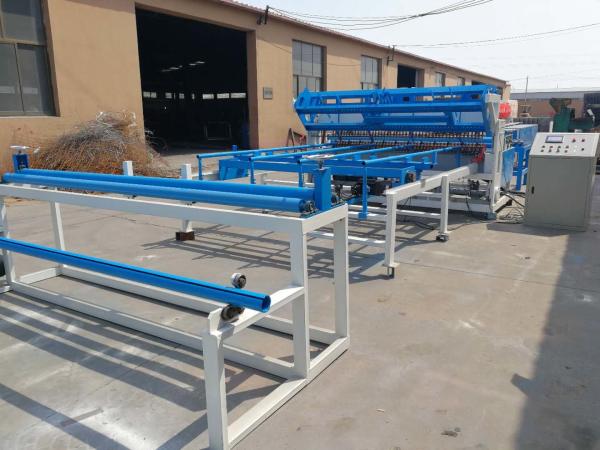

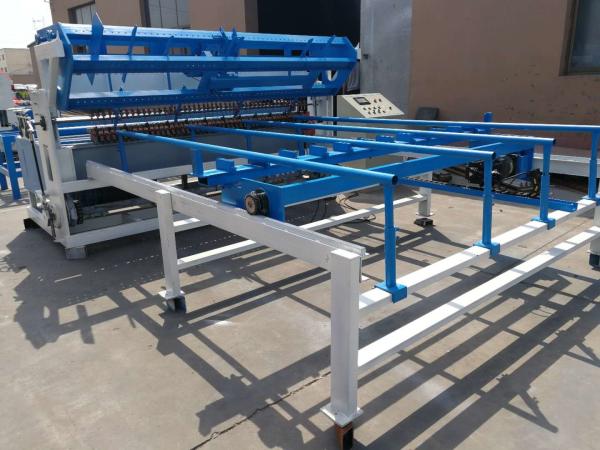

Welded Wire Mesh Machine In Roll Photos:
