75 Times Servo Motor High End 220V Fence Panel Machine
75 Times Servo Motor High End 220V Fence Panel Machine
75 Times Servo Motor High End 220V Fence Panel Machine
75 Times Servo Motor High End 220V Fence Panel Machine
Specifications
Brand Name :
DIXUN
Model Number :
DX-GWC-2500B
Certification :
CE
Place of Origin :
China
MOQ :
One set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
30 working days
Packaging Details :
The wire mesh fence panel welding machine is nude packing. Put into one 40 feet container.
Product name :
Fence mesh welding machine
Wire diameter :
3-6mm
Voltage :
220V/380V/415V/440V
Welding speed :
50-75 times/min
Usage :
Product fence for protect highway and railway
Mesh width :
Max 2500mm
Control system :
PLC+Touch Screen
Cross wire space :
50-200mm(adjustable by touch screen)
Raw material :
galvanized wire, low carbon wire
Production capacity :
60PCS per hour
Drop mesh :
Automatically
Main motor :
7.5KW
Description

Servo Motor Automatic Drop Mesh High-End Wire Mesh Fence Panel Welding Machine

Wire Mesh Fence Panel Welding Machine Introduction:

The Wire Mesh Fence Panel Welding Machine is specially designed to make the fence mesh. The bending machine is connected with the mesh welding machine. After finish welding, the mesh pulling car can send the fence mesh to bending part automatically, then the bending machine can bend after each pulling.Finally the pulling mesh car will drop the fence mesh panel automatically after finished bending.

Wire Mesh Fence Panel Welding Machine Features:

1. The wire mesh fence panel welding machine is made of thickness iron plate 30mm. The machine structure is very strong and stable.

2. The wire Mesh fence Panel Welding Machine adopts cent-control and welding time are composed of Panasonic PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable.

3. The wire mesh fence panel welding machine can make different mesh size according to your required mesh size. The line wire space from 50mm to 300mm, And the cross wire space from 50mm to 300mm. The line wire space is adjustable by measure the distance by ruler. The cross wire space is adjustable by set on the touch screen. input the cross wire mesh size and quantity of mesh size. Very easy and convenient to operate.

4. The bending mahcine will bending the mesh automatically when the fence mesh is under the bending machine. After bending. The pullig mesh car will pull out the fence mesh automatically. Then drop the fence mesh automatically. This is fully automatic complete operation.

5. The bending machine can bend the mesh panel in the beginning, in the middle and at the end. The bending machine is controlled by the control cabinet. Finally. The mesh pulling car will pull out the fence mesh panel automatically.And lands on the collect mesh car automatically.

6. The suitable material for the 3D welded fence mesh panel welding machine: low carbon wire, galvanized wire.

Wire Mesh Fence Panel Welding Machine Technical Parameters:

Model DX-GWC-2000B DX-GWC-2500B DX-GWC-3000B
Wire diameter 3.0-6.0mm 3.0-6.0mm 3.0-6.0mm
Width of mesh 2000mm 2500mm 3000mm
Mesh size 50-300mm(adjustable) 50-300mm(adjustable) 50-300mm(adjustable)
Length of mesh Max 3000mm Max 3000mm Max 3000mm
Welding spots 40PCS 50PCS 60PCS
Welding transformer 160KVA*5pcs 160KVA*8pcs 160KVA*10pcs
Welding speed 50-75 times per min 50-75 times per min 50-75 times per min
Control system Panasonic PLC Panasonic PLC Panasonic PLC
Production capacity 60pcs per hour 60 pcs per hour 60 pcs per hour
Motor power 5.5KW 7.5KW 7.5KW
Weight 9.5T 10.5T 11T
Dimension 14*2.8*1.8m 14*3.2*1.8m 14*4.2*1.8m
Labor required One worker one worker One worker
Power consumption 7-9kw/h 7-10kw/h 7-10kw/h

Wire Mesh Fence Panel Welding Machine Application:

Wire mesh fence is suitable for park, lawn, zoo, lake, road, and residential isolation. The wire mesh fence panel is also applicable to the safety protection, decoration and beautification of municipal engineering, roads, factories, development zones, garden squares and other places.

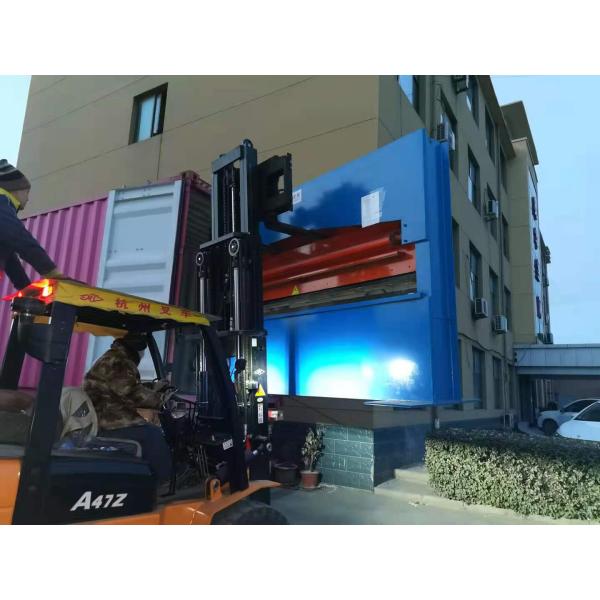

Wire Mesh Fence Panel Welding Machine Packing:

75 Times Servo Motor High End 220V Fence Panel Machine

75 Times Servo Motor High End 220V Fence Panel Machine

Wire Mesh Fence Panel Welding Machine photos:

75 Times Servo Motor High End 220V Fence Panel Machine

75 Times Servo Motor High End 220V Fence Panel Machine

75 Times Servo Motor High End 220V Fence Panel Machine
