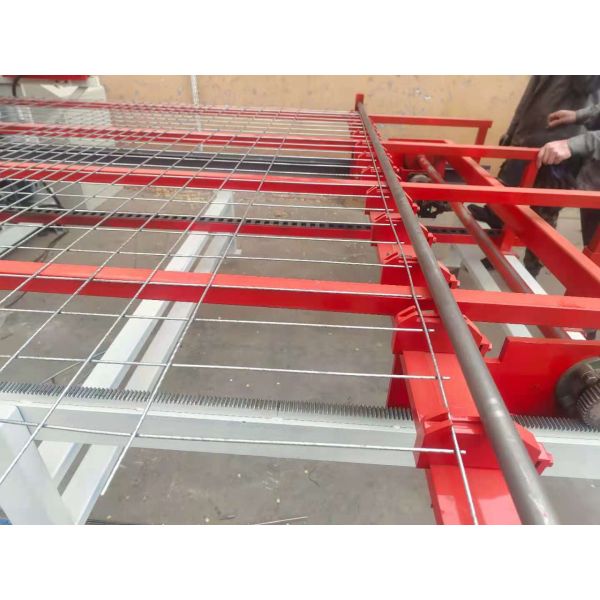

Red Painting Plc Control By Touch Screen Weld Mesh Manufacturing Machine
Red Painting Plc Control By Touch Screen Weld Mesh Manufacturing Machine
Red Painting Plc Control By Touch Screen Weld Mesh Manufacturing Machine
Red Painting Plc Control By Touch Screen Weld Mesh Manufacturing Machine
Specifications
Brand Name :
DIXUN
Model Number :
DX-GWCD-2500A
Certification :
CE
Place of Origin :
China
MOQ :
One set
Supply Ability :
8 sets per month
Delivery Time :
30 days
Packaging Details :
The welded wire mesh machine is nude packing. One set machine need one 20 ft container.
Product name :
wire mesh welding machine
Finished product :
In roll mesh
Roll mesh length :
60m
Wire diameter :
2.5-6.0mm
Mesh width :
2500mm or as per requirements
Line wire space :
100-300mm
Cross wire space :
100-300mm
Machine weight :
3700kg
Machine dimension :
7500*3200*1600mm
Pull mesh system :
By servo motor
Machine color :
As per your requirement
Welding speed :
45-65 times per min
Description

Red Painting PLC Control By Touch Screen In Roll Welded Wire Mesh Machine

Welded Wire Mesh Machine Introduction:

1. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.

2. The line wire is fed from coils; the cross wire is pre-cut, fed from hopper driven by step motor.

3. Mesh pulling system adopts servo motor back and forward to ensure the mesh opening accurately and can be adjusted freely within a certain range.

4. At the same time, the machine is also equipped with automatic cutting mesh machine, when the machine finishes the mesh length according to the setting parameters, the mesh will be cut by the cutting mesh machine automatically.

5. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.

6. Finished products are both roll mesh and panel mesh ok.

Welded Wire Mesh Machine Technical Parameters:

No. Item Specification
1 Welding Wire Diameter Φ2.5-6.0(mm)
2 Cross Wire Space 50-250mm
3 Line Wire Space 50-250mm
4 Max Mesh Width 2500mm or Customized
5 Max mesh length panel mesh length:3000mm;roll mesh length:30m
6 Number of Electrodes 24/48 or Customized
7 Line Wire Feeding Way Coil
8 Cross Wire Feeding Way Pre-cut Wire
9 Control Way PLC+Touch Screen
10 Welding Speed 0-80times/min
11 Rated Voltage 380V,50HZ,Three phase or customerized
12 Rated Power 125KWA*4/6(Water Cooling System)or Customized
13 Main Motor 4.0KW (Electromagnetic Brake Motor)
14 Welding Time 10ms-100ms
15 Welding Way By Control Silicon Control Electric Resistance Weld
16 Pressure Mode Adjustable Spring Pressure

Welded Wire Mesh Machine composition of whole production line

No. Name of each part Quantity/Set
1 Main Mesh Welding Machine 1
2 Line Wire Straightening Device 1
3 Cross Wire Automatic Falling Hopper 1
4 Operation Control Cabinet 1

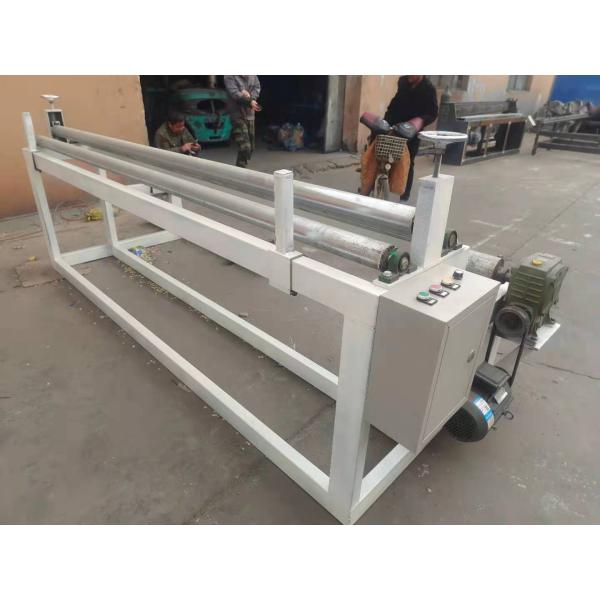

5 Automatic rolling Mesh Machine(chosen according to your practical needs) 1
6 Wire Straighteng and Cutting Machine 2
7 Level Spare Parts Box 1
8 Water Cooling System 1

Welded Wire Mesh Machine Applications:

Construction mesh, road mesh, fence protection etc.

Welded Wire Mesh Machine Packing:

Red Painting Plc Control By Touch Screen Weld Mesh Manufacturing Machine

Red Painting Plc Control By Touch Screen Weld Mesh Manufacturing Machine

Welded Wire Mesh Machine Photos:

Red Painting Plc Control By Touch Screen Weld Mesh Manufacturing Machine

Red Painting Plc Control By Touch Screen Weld Mesh Manufacturing Machine

Red Painting Plc Control By Touch Screen Weld Mesh Manufacturing Machine

Red Painting Plc Control By Touch Screen Weld Mesh Manufacturing Machine
