Width 2.5m 12mm Welding Reinforcing Mesh Machine Panasonic Control System
Width 2.5m 12mm Welding Reinforcing Mesh Machine Panasonic Control System
Width 2.5m 12mm Welding Reinforcing Mesh Machine Panasonic Control System
Width 2.5m 12mm Welding Reinforcing Mesh Machine Panasonic Control System
Specifications
Brand Name :
DIXUN
Model Number :
DX-GWCD-2500
Certification :
CE
Place of Origin :
China
MOQ :
One set
Payment Terms :
L/C, T/T
Supply Ability :
6 sets per month
Delivery Time :
30 working days
Packaging Details :
The reinforcing mesh welding machine is nude packaging. Need one 40 feet container.
Product name :
Reinforcing Mesh Welding Machine
Wire diameter :
5-12mm
Voltage :
380V/220V/415V/440V
Welding speed :
40--65 times per min
Rated capacity :
150kva*12pcs
Mesh width :
2500mm
Mesh length :
3-12 meter
Control system :
Panasonic PLC
Line wire space :
100-250mm
Cross wire space :
100-250mm
Number of welding electrode :
24pcs
Description

Machine Weight 9 Tons Mesh Width 2.5m Reinforcing Mesh Welding Machine

Reinforcing Mesh Welding Machine Introduction:

This is our new type reinforcing mesh welding machine DX-GWCD-2500, which adopts spring to control welding, the welding speed can be up to max.70 times/min. We can also supply other types of wire mesh welding machines 5-12mm and 3-8mm.

Reinforcing Mesh Welding Machine Features:

1. Control system:Japan Panasonic intelligent PLC
2. Touch screen: Weiview(Taiwan).
3. Low-voltage apparatus :Schneider(France). Variable-frequency drive:Delta(Taiwan)
4. Brake clutch motor connect the pricipal axis directely, stronger power.(Special technology)
5. Cross wire feeding: Step hopper. Longitude wire feeding:Manually(or equipted with a wire feeding car).
6. Mesh pulling:Panasonic(Japan) servo motor,great power and precision.
7. Transformer cooling:Water cooling. Electrodes cooling: Water cooling, very efficient.

8. Longitude wire sending Servo motor (1.5kw) and planetary reducer for sending longitude wires when welding, can save time.
9. Cross wire feeding. The cross wire feeder will be specially designed; it can bear 1 ton wires, much more than before.
10. Brake motor&helical gear reducer. The principal axis connects brake motor&helical gear reducer directly, strong power, high stable.
11. Welding transformers 12 pcs cast water-cooling transformers, high efficiency. The welding degree is adjusted by PLC.

Reinforcing Mesh Welding Machine Technical Parameters:

No. Item Specification
1 Welding Wire Diameter Φ5.0-12.0(mm)
2 Cross Wire Space 100-250mm(adjustable)
3 Line Wire Space 100-250mm(adjustable)
4 Max Mesh Width 2500mm
5 Max mesh length 1.0-12.0m
6 Number of Electrodes 24 pcs
7 Welding Speed 0-70times/min
8 Rated Voltage Three phase,380V,50HZ
9 Rated Power 200KWA*12(Water cooling system)
11 Main Motor 15KW (Electromagnetic Brake Motor)
12 Line Wire Feeding Pre-cut Wires,Sending on the down welding electrodes automatically
13 Cross Wire Feeding Pre-cut Wires,Automatic Feed from Pre-loading Hopper
14 Line Wire Space Adjustment Manually
15 Cross Wire Space Adjustment Set by Touch Screen
16 Material Carbon Content ≤0.2%,Round Steel Bars and Ribbed Steel Bars and Galvanized Steel Bars with Tensile Strength ≤650MPa
17 Welding Time 10ms-100ms
18 Pulling Mesh Way CNC with Servo motor
19 Welding Way By Control Silicon Control Electric Resistance Weld
20 Finished Mesh Automatic Fall and Automatic Output
21 Pressure Mode Adjustable Spring Pressure,Driven by Motor
22 Weight About 9 Tons
23 Overall Dimension 13.5*3.7*2.2m

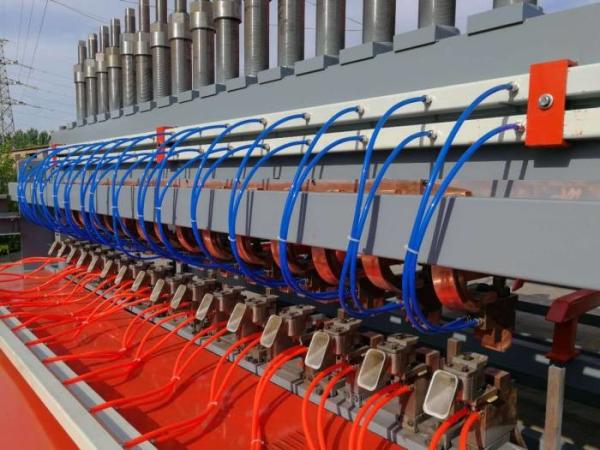

Photos of Reinforcing Mesh Welding Machine:

Width 2.5m 12mm Welding Reinforcing Mesh Machine Panasonic Control System

Width 2.5m 12mm Welding Reinforcing Mesh Machine Panasonic Control System

Width 2.5m 12mm Welding Reinforcing Mesh Machine Panasonic Control System
