Cross Wire Space 50-300mm Motor 5.5kw Less Manpower Wire Mesh Welding Machine

Wire Mesh Welding Machine Introduction:

The wire mesh welding machine is made of 25mm thickness of steel plate. Which make the machie is very strong and stable. The wire mesh welding machine is used to make welded wire mesh in roll. The max mesh length 60m in roll mesh. The wire mesh welding machine adopts PLC control system. Very easy to operate and easy to learn. This machine is improved by our company according to the needs of customers.
The machine has added an intelligent roll mesh system on the basis of the original one,which can adjust the roll mesh speed according to the welding speed of the machine, so as to make the mesh roll even and beautiful.

Wire Mesh Welding Machine Features:

1. The mesh size is directly set on the touch screen, which is convenient and simple.
2. Vibration device is added to the cross wire feeding system to prevent wire winding.
3. The longitudinal wire automatically wire feeding and the cross wire are pre-straightening and cutting.
4. Cross wire adjustment on screen, line wire adjustment need move the welding electrode.
5. The mesh roll length can be set by the control panel.
6. You can easily adjust the welding current when you need to weld different wire diameters.
7. You can set the output and stop the machine automatically after the mesh production finished.
8. The finished product roll mesh is smooth and the error of opposite angle line is small.

Wire Mesh Welding Machine Advantages:

1. Prevent reverse wheel.
The prevent reverse wheel is installed on the roll mesh system, which will not slip down after the mesh is cut, so as to facilitate the production of the next wire mesh roll.

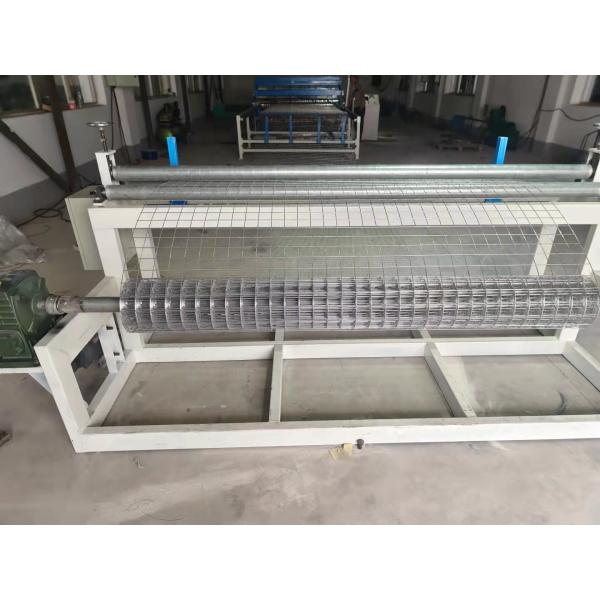

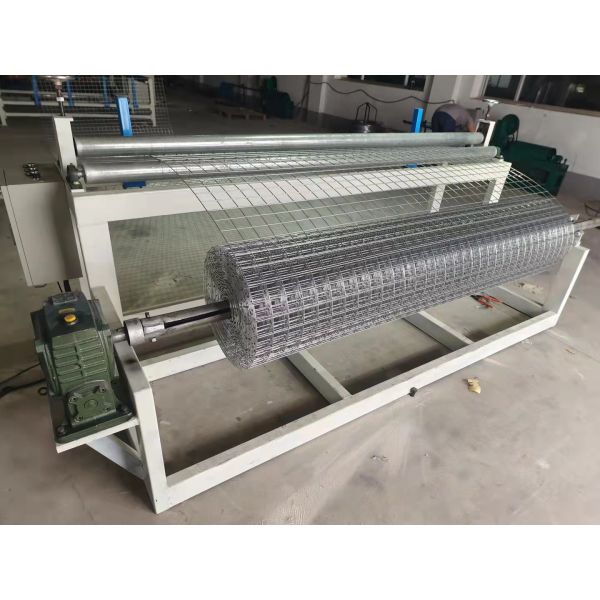

2. Automatic unloading roll mesh.
The roll mesh system can automatically push the finished mesh roll out of the machine, save labor and increase output.
3. Cross wire positioning device.
The cross wire positioning device adopts the cylinder type, which can more sensitively adjust the cross wire position and increase the welding speed.

4. Cross wire positioning device.
The cross wire positioning device adopts the cylinder type, which can more sensitively adjust the cross wire position and increase the welding speed.Line wire straightening wheel.
5. Each longitudinal wire will pass through the straightening wheel, which can make the mesh more flat and beautiful.

Wire Mesh Welding Machine Technical Parameters:

Wire Mesh Welding Machine Applications:

Used in construction, coal mine, highway, municipal administration, community, agriculture and so on.

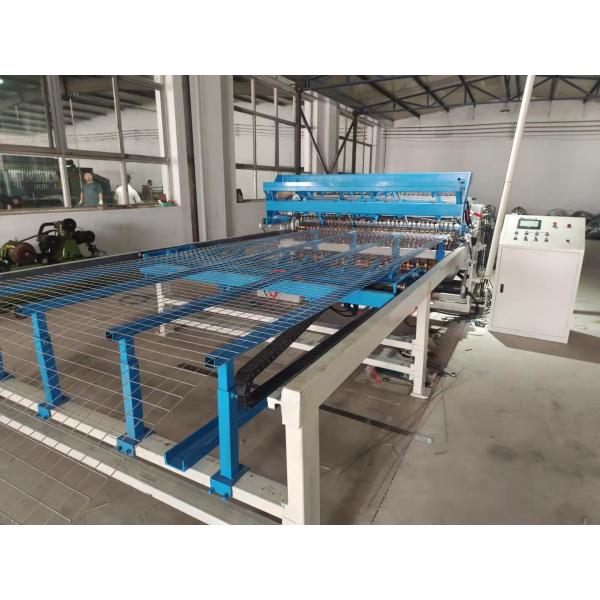

Wire Mesh Welding Machine Photos:
