Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil
Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil
Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil
Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil
Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil
Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil
Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil
Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil
Specifications
Brand Name :
Giant Shuttle
Model Number :
WW-00014
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 rolls
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 Rolls/Week
Delivery Time :
According to order quantity
Packaging Details :
In Pallet or In Bulk
Product Name :
Hot Dipped Galvanized Concertina Barbed Wire
Key Words :
Razor Wire
Wire Diameter :
2.5mm-3.2mm
Colors :
Silver
Clips :
5clips , 3 clips , without clip
Packing :
Coil or Pallet
Zinc Coating :
200g/m2
Type :
Perforated metal mesh
Service :
instruction book
Weather Resistance :
Excellent
Package :
Carbon Box
Blade Length :
22mm
Wire :
2.5±0.1mm
Coil Weight :
10kg
Frame Finishing :
Not Coated
Specification :
7-16m
Description

Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil

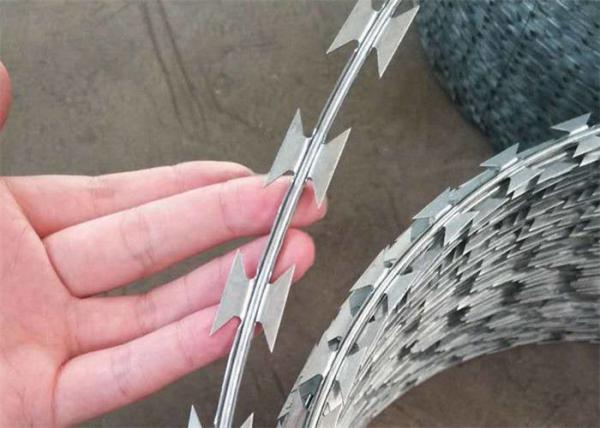

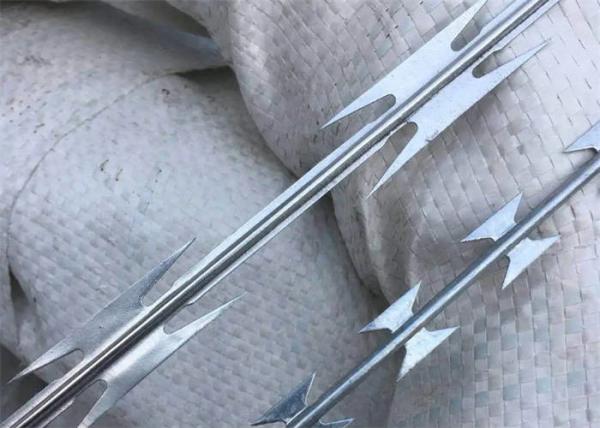

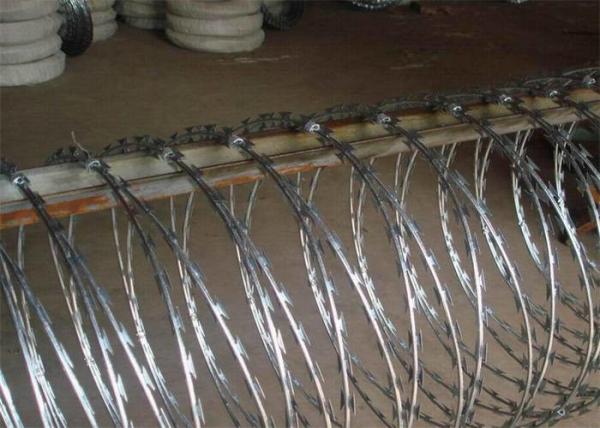

Razor Barbed Wire is also named concertina coils,concertina wires. It is a kind of modern security fencing materials with better protection and fencing strength.
It made by hot-dipped galvanized blade or stainless steel blade, high tensile strength core wire( steel wire with 1200mpa tensile strength or stainless steel wire).
Types of razor wires:BTO10 BTO11 BTO12 BTO22 BTO28 BTO30 CBT65 CBT60

Specification of razor blade wire:
1,Normal hot dipped galvanized razor wire(40-60g)
2,Heavily zinc coated razor wire (70-270g)
3,Stainless steel 304/316 grades razor wire

Clips of concertina wire: 3clips, 5clips or without clips
Coil Diameter of concertina wire: 300mm 450mm 500mm 600mm 700mm 800mm 950mm 1000mm

Package of razor wires:
1,waterproof paper inside,woven bag outside,then 50rolls/bundle or as required
2,In bulk,then packing by wooden pallet or in bulk

Features of Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil

Anticorrosion
Antiaging
Sunscreen
Weather ability
Cost saving
To some extend play a role in protection and intimidation.

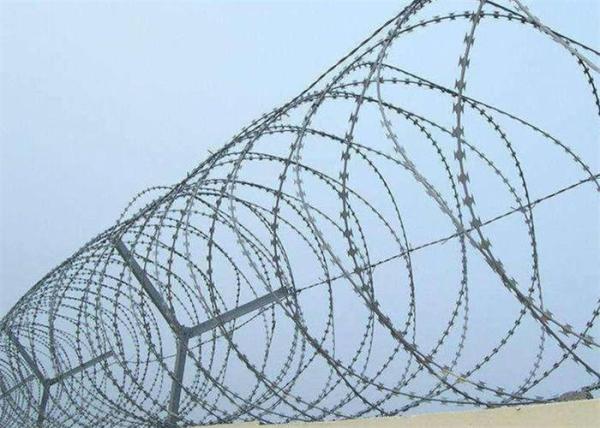

Applications of Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil

Airport.
Military site.
Prison.
Factory.
High class residences.
Secure hospitals.
Schools.
Parks.

Specification of Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil

Reference number Blade style Thickness
(mm)		 Wire diameter
(mm)		 Blade length
(mm)		 Blade width
(mm)		 Blade spacing
(mm)
BTO-12 Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil 0.5 ± 0.05 2.5 ± 0.1 12 ± 1 15 ± 1 26 ± 1
BTO-15 Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil 0.5 ± 0.05 2.5 ± 0.1 15 ± 1 15 ± 1 33 ± 1
BTO-22 Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil 0.5 ± 0.05 2.5 ± 0.1 22 ± 1 15 ± 1 34 ± 1
BTO-30 Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil 0.5 ± 0.05 2.5 ± 0.1 30 ± 1 18 ± 1 45 ± 1
CBT-25 Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil 0.5 ± 0.05 2.5 ± 0.1 25 ± 1 16 ± 1 40 ± 1
CBT-60 Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil 0.6 ± 0.05 2.5 ± 0.1 60 ± 2 32 ± 1 100 ± 2
CBT-65 Hot Dipped Galvanized Concertina Barbed Wire Coil BTO30 Barb Wire Coil 0.6 ± 0.05 2.5 ± 0.1 65 ± 2 21 ± 1 100 ± 2
CBT refers to Concertina Barbed Tape.
BTO refers to Barbed Tape Obstacle.

Specifications of commonly used razor wire
Item Outside diameter
(mm)		 Quantity of loops Standard length per coil
(m)		 Type Notes
RZ-01 450 33 7-8 CBT-60, 65 Single coil
RZ-02 500 56 12-13 CBT-60, 65 Single coil
RZ-03 700 56 13-14 CBT-60, 65 Single coil
RZ-04 930 56 14-15 CBT-60, 65 Single coil
RZ-05 450 56 8-9 (3 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-06 500 56 9-10 (3 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-07 600 56 10-11 (3 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-08 600 56 8-10 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-09 700 56 10-12 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-10 800 56 11-13 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-11 900 56 12-14 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-12 960 56 13-15 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-13 980 56 14-16 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
