Product description Crowd control barrier are commonly used at many public events. security for special events, parades, festivals, concerts and sporting events.crowd control barrier is ideal where high quality, attractive and durable crowd control is required.

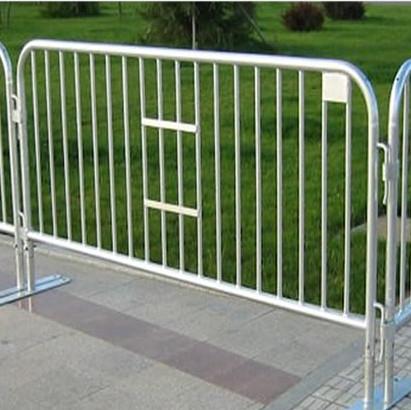

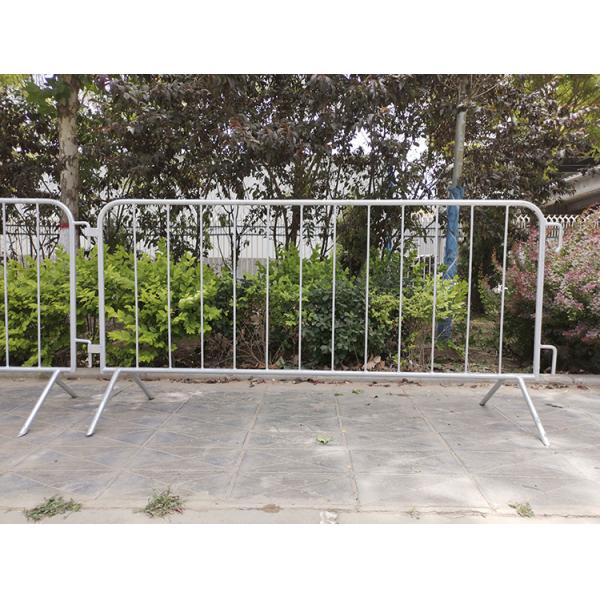

Portable road metal steel galvanized tube Crowd Control Barrier
Portable road metal steel galvanized tube Crowd Control Barrier (also known as pedestrian barriers and crowd control barricades) are lightweight and ideal for keeping the public safe from hazards around construction sites. The barriers are also very popular in the event industry because they act as a physical and psychological barrier and are an effective way of guiding pedestrian traffic safely by clearly marking footpaths. When Crowd Control barriers are interlocked, security personnel can create lines of barriers that are very difficult to penetrate. This is because when the crowd control barriers are interlocked, they become stronger and cannot be easily toppled over. Offset fixed legs increase the stability and strength of the barrier while making them easily stackable. The barriers are manufactured with a galvanised finish which protects against rusting and are available in high-visibility colours (orange or red) – this incurs an additional charge for the powder coating.
Feature 1) Simple structure in linear type ,easy in installation and maintenance.
2) Renewable resource, could be used for several years.
3) All welding slag are cleared to insure fence smooth surface.
4) Whole panel (welded mesh panel and frame tube) will be silver spray painted after welding to protect all welding spots.
5) Customized fence shape or specification is also available.

Specification
Specifications Normal Size
*Panel Size (mm) 914x2400, 1090x2000, 1090x2010, 940x2500
*Frame Tube (mm) 20, 25, 32, 40, 42 OD
*Frame Tube Thickness (mm) 1.2, 1.5, 1.8, 2.0
*Vertical Tube (mm) 12, 14, 16, 20 OD
*Vertical Tube Thickness (mm) 1.0, 1.2, 1.5
*Tube Space (mm) 100, 120, 190, 200
*Surface Treatment Hot dipped galvanized or Powder coated after welded

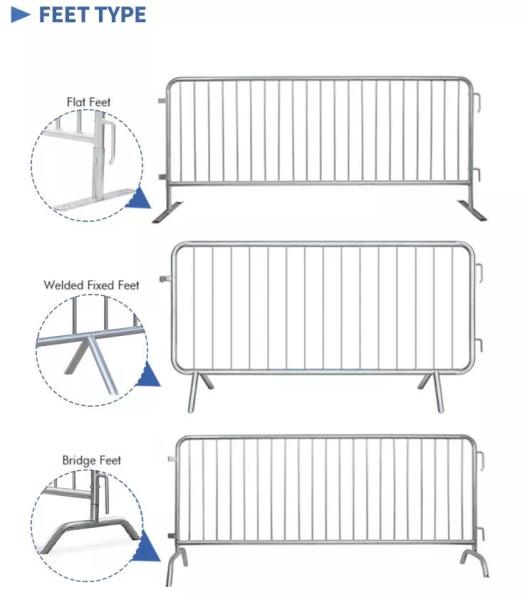

*Feet:Flat feet, Bridge feet and Tube feet
Parameter
Specification of Portable road metal steel galvanized tube Crowd Control Barrier |
| Outer Frame | Upright Frame | Panel Size | Spacing |
Outer Diameter | Thickness | Outer Diameter | Thickness | Length | Height | (mm) |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
CCB01 | 38 | 2 | 16 | 1.5 | 2000 | 1500 | 60 |
CCB02 | 38 | 1.2 | 12 | 0.7 | 2015 | 1100 | 100 |
CCB03 | 25 | 2 | 20 | 1 | 2200 | 1100 | 127 |
CCB04 | 25 | 2 | 20 | 1 | 2400 | 1100 | 190 |
CCB05 | 38 | 1.2 | 16 | 0.7 | 2400 | 1100 | 200 |
CCB06 | 40 | 2 | 20 | 1 | 2400 | 1200 | |
CCB07 | 25 | 2 | 20 | 1 | 2500 | 1100 | |
CCB08 | 26 | 2.5 | 15 | 1.5 | 2500 | 1100 | |
CCB09 | 38 | 2 | 16 | 1 | 2500 | 1100 | |
CCB10 | 35 | 1 | 16 | 1 | 2500 | 1150 | |

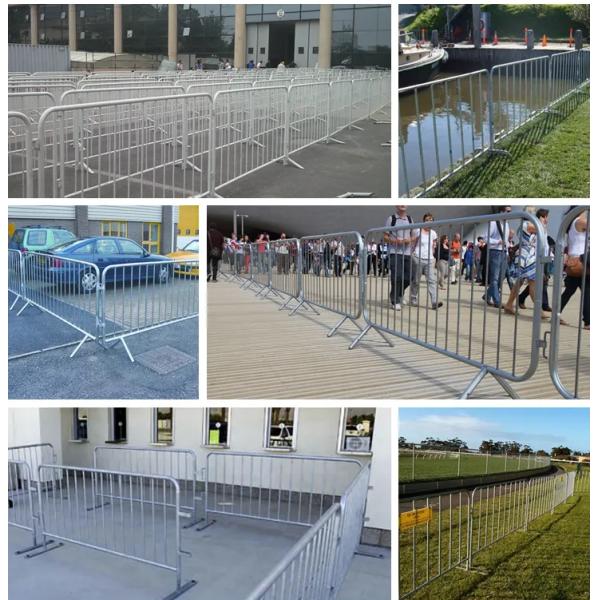

Application :
1)Security and Safety
2) Traffic & Pedestrian Control
3)Special Events
4)Concerts
5)Stadiums/Arenas/Convention Centers
6) Fairs/Carnivals/Festivals
7) Parades/Rallies

Company Profile
Hebei Yuanmai Metal Products Co., Ltdis a professional manufacturer of wire mesh fences, Our products include chain link fences, farm fences, SNS protective mesh fences, framework fences, temporary fences, 358 High Security Fences, curvy welded mesh fences, prison fences, airport fences, ornamental fences, iron fences, palisade fences, double loop fences and Euro fences. Tailong also supplies Hesco Bastions, reinforcing mesh, gabions, store cages and decorative wire mesh. Our factory located in Anping County, which is called "the Native land of Wire Mesh" in China. Tailong supplies high quality fences and related products for a variety of applications. We are committed to providing customers with good quality products, competitive prices and excellent services. Our products are widely used in road, railway, airport, residence district, seaport, garden and other fields. Selling well in all cities and provinces around China, our products are also exported to the USA, Australia, Germany, the UK, Japan, Singapore, Korea and so on. To learn more about what we can do for you, contact us at any time. We look forward to establishing a good and long-term business relationship with you.

FAQ
Q: When can you get the reply?
A: Within 15 minutes after we get your inquiry.
Q: What you’re getting before any work starts?
A: We will provide a drawing with your quotation, so you can see what your new fencing will look like.
Q: Are you a real factory? Or a trading company?
A: We have both real factory and trading department, mainly produce and sell wire mesh products.
Q: How long is your delivery time?
A: Generally 5-10 days if the goods are in stock or 15-20 days if not in stock, and according to the quantity you buy.
Q: Do you provide samples? Is it free?
A: Yes, we could offer the sample for free charge but the cost of freight is not included.
Q: Can I add my logo on the product?
A: Yes. According to your request.
Q: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory. Shijiazhuang International Airport and Beijing International Airport are near to us and we can meet you here. Hotel booking service is available.
