Garden Design Hot Dipped Galvanized After Welding Gabion Box

Characteristic & Description

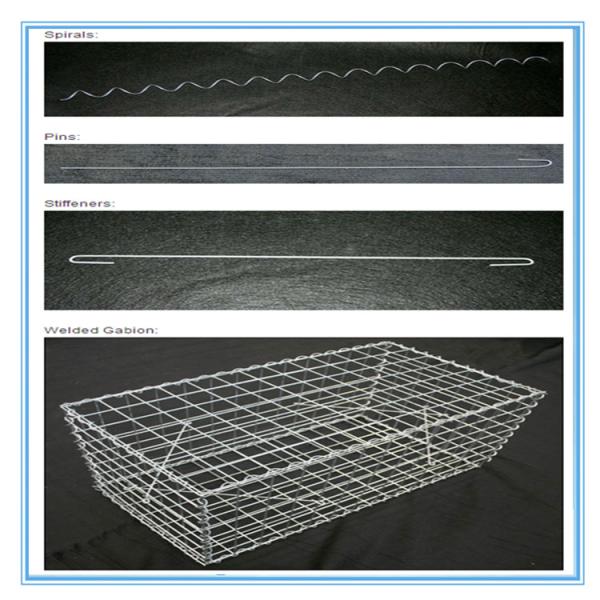

Welded Gabion is made of welded wire mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.

1. Finishing: heavy duty galvanized or galfan galvanized.
2. Surface treatment: electro galvanized, hot-dipped galvanized, pvc coated, stainless steel
3. Wire diameter: 2.7--5mm
4. Mesh size/opening: 37.5x75mm, 50x50mm, 75x75mm, 100x50mm, 100x100mm
5. Zinc coating: 40-290g/mm2
6. Application: Flood dam, dam and diversion, Prevent soil erosion, bridge protection, retaining wall, road protecting

Specification

How to install welded gabion box

Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.

Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.

Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.

Step 4. Gabion box filled with graded stone by hand or with a shovel.

Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.

Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up

Application

The wire is also available with a tough, durable pvc coating. Welded gabion could be used for prefilled on site construction which is quick and easy. They have a variety of applications such as retaining walls for commercial, industrial and road project, landscaping, erosion control.

Extraordinary and fashionable design, convenient installation, high strong quality.
