Easily Assembled Galvanised Welded Wire Mesh Fence For Highway Sport Field Garden
Easily Assembled Galvanised Welded Wire Mesh Fence For Highway Sport Field Garden
Easily Assembled Galvanised Welded Wire Mesh Fence For Highway Sport Field Garden
Easily Assembled Galvanised Welded Wire Mesh Fence For Highway Sport Field Garden
Easily Assembled Galvanised Welded Wire Mesh Fence For Highway Sport Field Garden
Easily Assembled Galvanised Welded Wire Mesh Fence For Highway Sport Field Garden
Specifications
Brand Name :
Xinlong
Model Number :
XLF-01
Certification :
ISO9001：2008
Place of Origin :
China,Hebei
MOQ :
1000
Price :
negotiate
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000 per week
Delivery Time :
6-9 work days
Packaging Details :
Wooden pallet covered by plastic film.(or according to your request
Application :
Sport Field Garden
Feature :
Easily Assembled, Rot Proof, Waterproof
Material :
Galvanized Iron Wire
Size :
Customized Size
Surface treatment :
Galvanized+PVC Coated
Color :
Green,Red,Yellow,White,Blue,etc
Description

Easily Assembled Galvanised Welded Wire Mesh Fence For Highway Sport Field Garden

Popular Specification of our 3D curved wire mesh fence:

Wire Dia. Mesh Size Panel Width Panel Height Fold No. Post’s height
FixⅠ FixⅡ Fix Ⅲ

4.0mm

4.5mm

5.0mm

5.5mm

6.0mm

200*50mm

200*55mm

200*60mm

200*65mm

2.0m

2.255m

2.5m

3.0m

 0.635m 2 0.9 0.7 1.0
0.835m 2 1.2 0.9 1.2
1.035m 2 1.4 1.1 1.4
1.235m 2 1.6 1.3 1.6
1.435m 2 1.8 1.5 -----
1.535m 3 1.9 1.6 -----
1.635m 3 2.0 1.7 -----
1.735m 3 2..2 1.8 -----
1.835m 3 2.3 1.9 -----
1.935m 3 2.4 2.0 -----
2.035m 4 2.5 2.1 -----
2.235m 4 2.8 2.3 -----
2.435m 4 3.0 2.5 ------

Zinc Rate:

Surface Treatment Min. Max.
Electric Gal. 20g/m2 60g/m2
Hot Dipped Gal. 35g/m2 700g/m2
Powders Sprayed Coating 100microns 120microns
PVC Dipped Coating 400microns 600microns

Product Description:

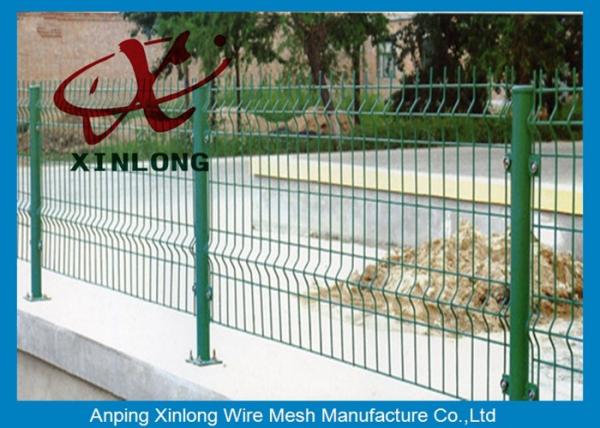

Curvy Welded Mesh Fence, 3D fence pattern provides strong, durable and flexible construction. The closely spaced wire mesh Fence construction gives your fence linear strength and springy texture to protect horses from injury and prevent predators from entering paddocks and pastures.

Extraordinary and fashionable design, convenient installation. The fence panels are jointed with the post without any clamps, and it is easy and convenient. It could insert into the sew of concrete base of 40mm width. Usually there is the plastic caps on the top of the post. The upper examine and repair is very easy, and the posts are easy to replace.

Easily Assembled Galvanised Welded Wire Mesh Fence For Highway Sport Field Garden

Easily Assembled Galvanised Welded Wire Mesh Fence For Highway Sport Field Garden

Our Feature:

- High Anti-Corrosion: Using high quality iron as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.

- Design Advantage: Extraordinary and fashionable design, convenient installation. The fence panels are jointed with the post without any clamps, and it is easy and convenient. It could insert into the sew of concrete base of 40mm width. Usually there is the plastic caps on the top of the post. The upper examine and repair is very easy, and the posts are easy to replace.

Choice Of Colors:

Every RAL colour desired can be delivered, for example the colours corresponding to your corporate design.
- Common colors
- Dark Green RAL6005
- Pure White RAL9010
- Stone Grey RAL7030
- Jet Black RAL9005
- Anthracite Grey RAL7016
- Other RAL colors are available

Range Of Application:

Enclosing:

Road and transit (highway, railway, road, city transit)

Science & Industry Zone (factory, industry zone, sightseeing zone, new pattern farm)

Private grounds (courtyard, villadom )

Public grounds (park, zoo, train or bus station, lawn)

Commercial grounds (corporation, hotel, supermarket)

Our Copmany:

Anping Xinlong Wire Mesh Manufacture Co., Ltd dealing in all kinds of Wire Mesh Fence, Barrier, Steel Grating, Fence Gate, Galvanized Iron Wire, Welded Wire Mesh and so on. Founded in 1982, having some son companies, including wire-drawing, mesh-welding, mesh-weaving, galvanizing, PVC-coating and so on. As a leading manufacturer and self exporter, we hope to establish long, friendly business relations with you in future, with our full sincerity and confidences.

Easily Assembled Galvanised Welded Wire Mesh Fence For Highway Sport Field Garden
