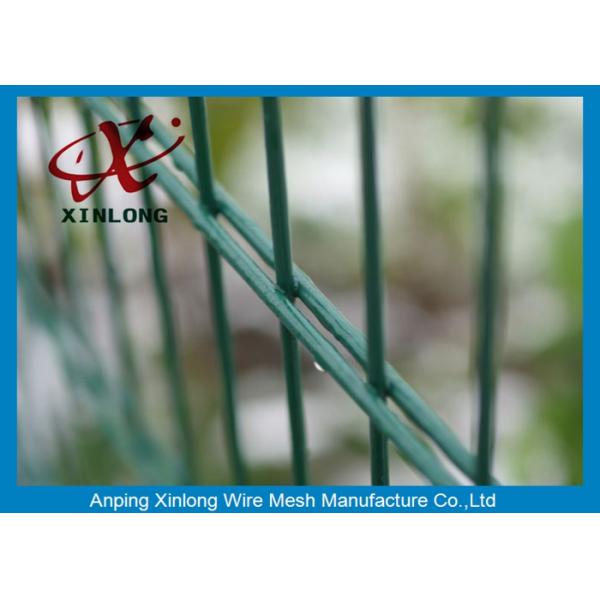

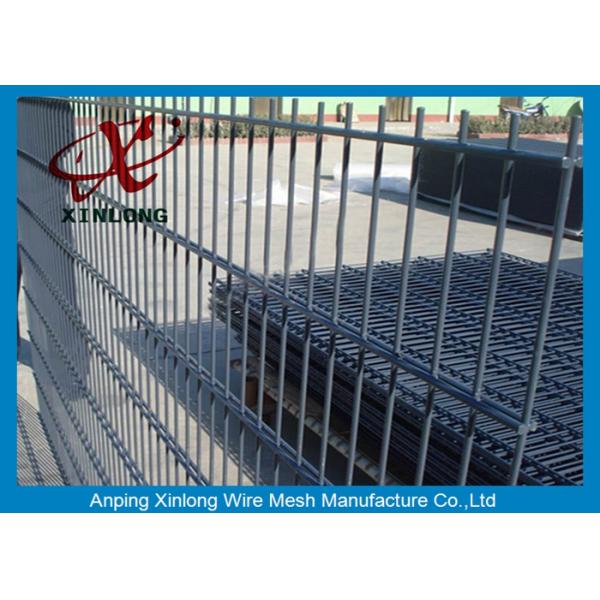

6x6 Reinforcing Welded Ornamental Double Loop Wire Fence With CE Certifcate
6x6 Reinforcing Welded Ornamental Double Loop Wire Fence With CE Certifcate
6x6 Reinforcing Welded Ornamental Double Loop Wire Fence With CE Certifcate
6x6 Reinforcing Welded Ornamental Double Loop Wire Fence With CE Certifcate
6x6 Reinforcing Welded Ornamental Double Loop Wire Fence With CE Certifcate
6x6 Reinforcing Welded Ornamental Double Loop Wire Fence With CE Certifcate
Specifications
Brand Name :
XINLONG
Model Number :
XLS-05
Certification :
ISO9001：2008
Place of Origin :
Hebei，China
MOQ :
1000
Price :
negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 per week
Delivery Time :
5-12work days
Packaging Details :
Wooden/Metal Pallet
Wire Gauge: :
6/5/6；8/6/8mm
Color :
green、white and other RAL colors are available
Surface treatment :
Electric Gal、Hot dipped Gal；Powders Sprayed coating
Mesh :
50*200mm
Material :
Galvanized; PVC Coated
Type :
Welded Mesh
Application :
Fence Mesh; High Security
Hole Shape :
Square
Aperture :
200 * 50 mm
Description

6x6 Reinforcing Welded Wire Mesh / Welded Curved Galvanized Double Wire Mesh Fence

Product Description

Double Wire Fence are also named as double rod fence panel or double rod gratings (grid fencing).Double wire fencing is a rigid yet unobtrusive mesh fencing system.It is often used as a perimeter fence for industrial or commercial premises and sport pitches where a strong mesh fencing system is required.

Material of double wire fence

Low-carbon iron wire

Surface Treatment of double wire fence

surface treatment min max
electric gal 20 60
hot dipped gal 35 700
power sprayed coating 100 microns 120 microns

Specification of double wire fence

Wire Diameter Mesh Size Panel Width Panel Height Post Height Post Type Fitting

6/5/6mm

8/6/8mm

200*50mm

2000mm

2200mm

2500mm

3000mm

630mm

830mm

1030mm

1230mm

1430mm

1630mm

1830mm

2030mm

2230mm

2430mm

1000mm

1200mm

1400mm

1600mm

1800mm

2000mm

2300mm

2500mm

2800mm

3000mm

Model No.

XLFP-01

XLFP-05

No clip;

rainhat

Model No.

XLFP-04

Steel clip;

Plastic clip,

rainhat

Color of double wire fence

Every RAL color desired can be delivered, for example, the colors corresponding to your corporate design.

Common Colors

Dark Green RAL6005

Pure White RAL9010

Stone Grey RAL7030

Jet Black RAL9005

Anthracite Grey RAL7016

Other RAL Colors are available

Feature of double wire fence

Using high quality iron rod as raw material, the welded panel, after galvanization,powders

primer,and powders top coating,it can resist the corrosive and ultraviolet radiation very strongly.

Application of double wire fence

Power station, Commonality construction, Jail, Airport, Military base,

County border and other high security area and place.

Extra choose the angle steel, barbed wire or razor wire fence to make

more security.

6x6 Reinforcing Welded Ornamental Double Loop Wire Fence With CE Certifcate

6x6 Reinforcing Welded Ornamental Double Loop Wire Fence With CE Certifcate

Welcome to visit our factory

Our company was founded in 1989, having some son companies, including wire-drawing, mesh-welding, mesh-weaving, galvanizing, PVC-coating and so on. As a leading manufacturer and self exporter, we hope to establish long, friendly business relations with you in future, with our full sincerity and confidences.
