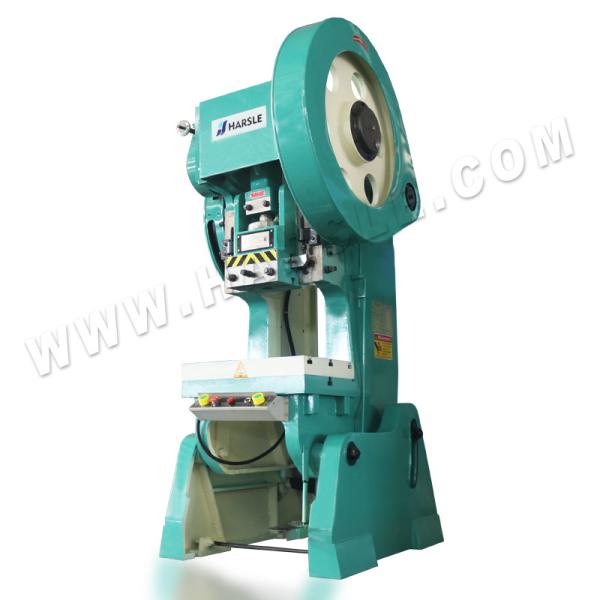

J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine
Specifications
Brand Name :
HARSLE
Model Number :
J23 63T
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD7,100~USD28,900
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 SETS/ DAY
Delivery Time :
30 work days
Packaging Details :
Standard Package
Nominal Force :
630 T
Throat Depth :
280 mm
Slide Stroke :
100 mm
Slipper Stroke Times :
50 times/min
Table Size :
450*700
Table Thickness :
80 mm
Motor Power :
4 KW
Dimension :
1500*1200*2400 mm
Description

J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Main features

♦With an inclinable cast structure, the machine body can incline to allow a punched work-piece or waste material to slide down from the die.
♦With a rigid turn-key clutch, the press has single or continuous operation standards.
♦The punch press uses a single type brake. The sliding block is equipped with a press-down type safety device that can be pressed down to protect the entire machine.
♦Avoid being damaged in case of overpressure.
♦The machine has the advantages of high universality, high precision, reliable performance and convenient operation.

Parameter

J23 punching machine
Specifications Unit J23-10 J23-16 J23-25 J23-40
Nominal pressure T 10 16 25 40
Nominal pressure stroke mm 2 2 2.5 3
Ram stroke mm 45 55 65 100
Strokes SPM 145 120 100 80
Max. close height mm 180 200 220 240
Adjust amount of close height mm 50 45 50 50
Throat depth mm 145 150 200 210
Bench size L R mm 290 300 370 420
F B mm 370 460 560 640
Ram under side size Die hole mm 150 185 220 240
L R mm 200 280 330 340
Size of die handle bore F B mm 30 40 40 40
Die hole mm 50 55 60 65
Columndist. mm 180 180 270 240
Pad thickness mm 40 45 50 50
Motor power Kw 1.1 1.5 3 3
Dimension L mm 1750 1950 2150 2320
W mm 750 850 950 1100
H mm 950 1150 1345 1530
Machine weight Kg 650 1200 2300 2800
Specifications J23-63 J23-80 J23-100 J23-125 J23-160
Nominal pressure 63 80 100 125 160
Nominal pressure stroke 4 5 6 6.5 10
Ram stroke 110 115 130 140 40-160

Product details

♦RAM
Main Functions
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Main Motor
Main Functions

J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Connection Rod
Main functions
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Die Height Adjustment
Main functions
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Die Height Ruler
Main functions
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Control Buttons
Main functions
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Working Lamp
Main functions
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Gear
Main functions
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Safety Clamp
Main features
J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Company Information

J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

HARSLE is a leading and professional metalworking machine manufacturer in China, which was established in 1997 and located in the cultural ancient city of Nanjing, Jiangsu Province. After 20 years development, it has been a famous and influential modern enterprise which owns three subsidiary corporations; they are Nanjing Harsle Machine Tool Co., Ltd., Nanjing HASS CNC Machine Tool Co., Ltd., and HARSLE INDUSTRIAL LIMITED. Its sales revenue has been increased by over 100% yearly in recently years.
HARSLE endeavors to provide high quality machine and satisfied after-sales service, our machine products including: NC & CNC Press brake, swing beam shearing machine, guillotine shearing machine, mechanical & pneumatic punching machine, hydraulic press machine, rolling machine, iron worker, laser cutting machine and steel door production line etc. They have been sold to over 100 countries and 10,000 customers all over the world in different fields.

Company Information

J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Packing&Shipping

J23 series C Frame Mechanical Power Press Manual Electronic Punching Machine

Our machines are covered by plastic film and fixed by steel wire inside wich will be protected well during shipping.

Our Services

  1. Warranty period is 12 months after receiving the machine, any quick-wear part is available for free during guarantee period under proper operation, customers only need to pay for the freight of the replaced new parts.
  2. Installation and training service is optional for customers, any client can ask for this service from HASS, they should assume the air fare and accommodation for our engineer during the journey. meanwhile, the service salary for each engineer is USD 100 per day.
  3. All mails will be replied within 12 hours, all social software message will be handle in real time.
  4. Any question or concern, please do not hesitate to connect us, below is the contacts information.
