Main Features
TDF flange forming machine is used to form the TDF flange for square duct connection, specially for large-scale, standardized And automatic production.Both flanges and L-shaped clamp can be produced synchronously.Material feeding automatically while sheets processed.All rollers and bearings adopt excellent steel processed by advanced heat treatment technology(quenching),which enhances wear-resistance for the machine.14 Groups of rollers form a stable and beautiful shape Pressure bearings are being used to avoid the side wear.
Main technical data of TDF flange forming machine
No. | Item | Data |
1 | Raw material | Galvanized steel |
2 | Material thickness | 0.5~1.2mm |
3 | Main motor power | 3kW |
4 | Dimension ( L x W x H) | 2500 x 640 x 1200mm |
5 | Weight | About 1000kg |
6 | Control type | Electric control |
7 | Size of A in the above profile | 35 +/- 0.5mm |
8 | Size of L in the above profile | 500-1350mm (manual fast adjustable) |

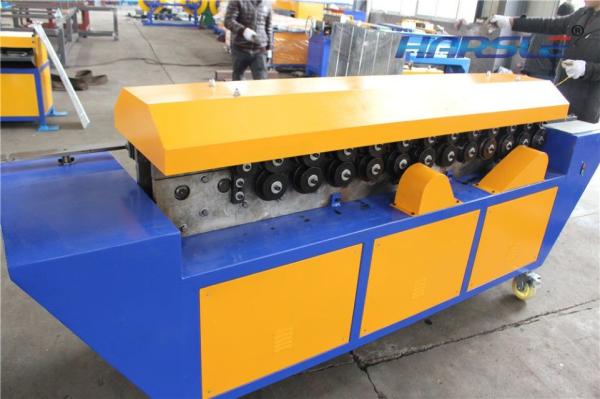

Machine Show
Our machines are covered by plastic film and fixed by steel wire inside wich will be protected well during shipping.
