Specifications
Brand Name :
HARSLE
Model Number :
YM
Place of Origin :
China
MOQ :
1 Set
Price :
USD65,000~USD80,000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 SETS/Month
Delivery Time :
30 work days
Packaging Details :
Standard Package
Nominal Force :
800T
Return force :
260kn
Max working pressure :
25Mpa
Ram stroke :
250mm
Max Opening Height :
400mm
Dimension of working table :
2800*400mm
Motor Power :
22kw
Description

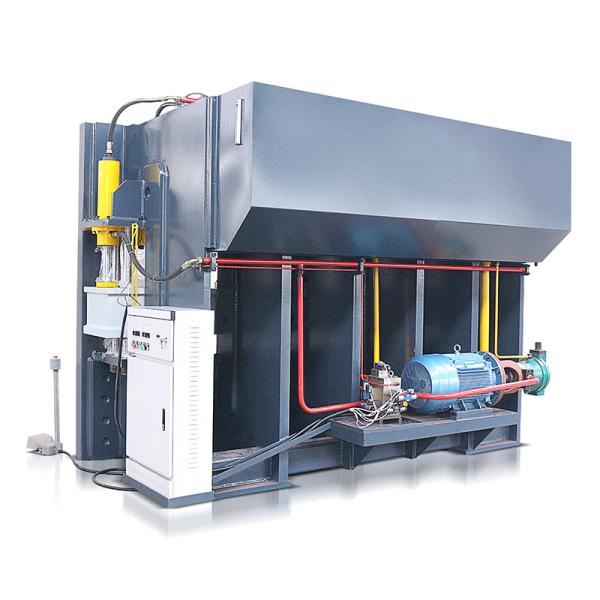

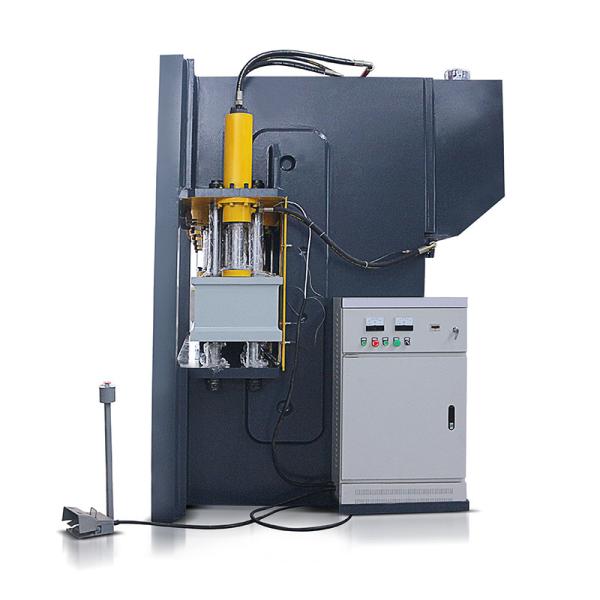

YM Series

Hydraulic Door Frame Embossing Machine

Main Features:
1. Structure: it consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The column uses the high quality 45# forging steel and the surface hardness can reach HRC38-42.The main oil cylinder seals use imported materials to ensure reliable sealing.
2. Hydraulic System: The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.
3. Electrical Control System: an independent electric cabinet and a centralized control panel.
4. Operation: Two working modes as inches and semi-automatic strokes.

5. Security: The emergency stop button can stop the machine immediately. The slide has Limit Switch on both up and down of the work table. Hydraulic support safety circuit is arranged in the cylinder piston inside of the hydro-cylinder.

HARSLE brand YM Series Hydraulic Door Frame Embossing Machine for metal door sheet

HARSLE brand YM Series Hydraulic Door Frame Embossing Machine for metal door sheet Cylinder
● Polished and high rigidity treatment.

HARSLE brand YM Series Hydraulic Door Frame Embossing Machine for metal door sheet Main Motor
● Siemens brand from Germany.

HARSLE brand YM Series Hydraulic Door Frame Embossing Machine for metal door sheet Hydraulic axial plunger pump
● High rated pressure, compact structure, high efficiency and easy flow adjustment.

HARSLE brand YM Series Hydraulic Door Frame Embossing Machine for metal door sheet Return Cylinder
● Hold the ram to move up.

HARSLE brand YM Series Hydraulic Door Frame Embossing Machine for metal door sheet Hydraulic Valve

● Cartridge valve equipped for hydraulic control system, reliable,durable and less hydraulic shock, shorter connection pipeline and fewer release points, Hydraulic

integrated system is adopted seperate control unit.

HARSLE brand YM Series Hydraulic Door Frame Embossing Machine for metal door sheet Electric Parts
● Schneider brand from France.

HARSLE brand YM Series Hydraulic Door Frame Embossing Machine for metal door sheet Pressure Gauge
● Check the hydraulic working pressure.

HARSLE brand YM Series Hydraulic Door Frame Embossing Machine for metal door sheet mold frame and skin mold
● Different designs for selection.

EMBOSSED door frame sheet

HARSLE brand YM Series Hydraulic Door Frame Embossing Machine for metal door sheet
