Electronic rotor frame Pressure Die Casting Tools APQP Quality Control
Electronic rotor frame Pressure Die Casting Tools APQP Quality Control
Electronic rotor frame Pressure Die Casting Tools APQP Quality Control
Electronic rotor frame Pressure Die Casting Tools APQP Quality Control
Electronic rotor frame Pressure Die Casting Tools APQP Quality Control
Electronic rotor frame Pressure Die Casting Tools APQP Quality Control
Specifications
Brand Name :
UKD
Model Number :
D520*40*120
Certification :
IATF16949
Place of Origin :
China
MOQ :
500 pieces
Price :
dollar 1-2 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000000 pieces per year
Delivery Time :
5-8 weeks
Packaging Details :
wooden box
material :
Aluminum alloy
cavity :
single
color :
as your request
surface treatment :
sand blast , as customers request,
Lead time :
50 days
Description

Electronic rotor frame Pressure Die Casting Tools APQP Quality Control

Electronic Rotor Frame Description

Model NO. Eld-012 　 Die Casting Machine Type Horizontal Type Yizimi 200
Die Casting Method Pressure Die Casting Major process Casting+CNC milling
Treatment of Surface Sand Blast or customized Lead time 50days
Casting Surface Quality Level 2 Tolerance Grade 7 or 8
Dimension 　520x40x120 Trademark OEM
Transport Package 　Wood cage Specification Customized
Port Qingdao,China Quality control 　APQP

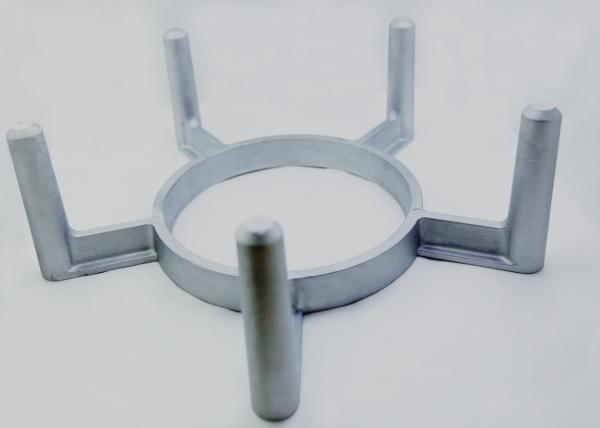

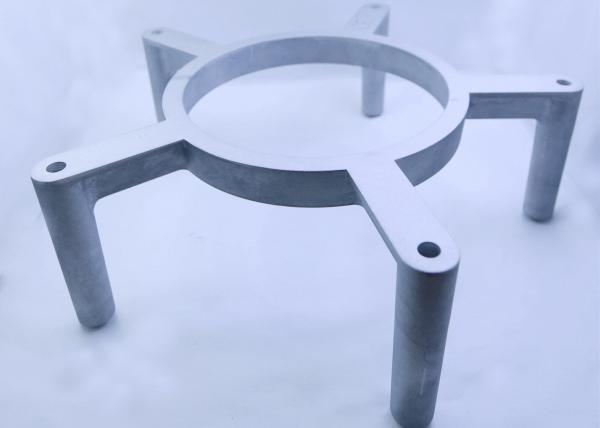

The Real Photos

Electronic rotor frame Pressure Die Casting Tools APQP Quality Control

Electronic Rotor Frame Advantage

1. The raw material is from the famous factory. the quality is very steady.

2. We run APQP make the quanlity easily meet the customer requirements.

3. The product was produced according APQP, CPK 1.66.

The Relative Product

Electronic rotor frame Pressure Die Casting Tools APQP Quality Control

Common Technical Parameter

Processing Aluminum die casting with CNC machining
Quality level Casting standards :CT5-CT4 grade, apply for ISO.DIN,ANSI,BS,JIS,GB standards.etc.
Machining standards: limited linear dimension tolerance ±0.1mm,geometric dimension ±0.1mm
Quality assurance system ISO9001-2015
Material: ANSI:A380/380/A363/363/A360/360/A413/413
ISO:AlSi11Cu2(Fe),AlSi10Mg,AlSi9Cu3,
DIN EN:AC46000/AC43000/AC46100/AC43200/AC43400
BS:LM20/LM24/LM12
JIS:ADC-12/ADC-10/ADC-3/ADC-1
Casting machines 280T/300T/500T/800T/900T/1600T/2000T etc
Casting capacity 10g- 20Kgs
Precise machining 18 sets of 4 axis CNC work center 2 sets of 5axis CNC work center
20 sets CNC lathe
Measurement inspecting metal material metallographic analyzer, metal detection machine, coordinate measuring machine,
Surface finishing Powder coating, chrome plating,electrophoresis, zinc plating, sand blasting, Painting
Packing Carton with pallet or as per customer's requirement
Delivery Courier express or air shipment for urgent delivery, regular orders by sea shipment

Our factory corner:

Electronic rotor frame Pressure Die Casting Tools APQP Quality Control

FAQ:

1. Are you a factory or a trading company?

Qingdao UKD Machinery Co., Ltd. is a professional factory of casting parts , centrifugal pump parts,

submersible pump parts, mining equipments and Auto parts etc.

2. Can I be your agent?

Yes, welcome to deep cooperation.

3. How do I know the quality is up to the OEM standards?/What's your quality guarantee?

OEM is available. We have passed the IATF16949 certificate, and we have been cooperating with many

companies in EU, our products have passed their test. Or you can test our products by trial order.

why choose us?


1. We have more than 20 years experience for production.Our products export more than 20 countries.
2. We have an extensive expertise in CNC machining, offer "One-stop Service".
3. Now we have more than 50 sets of various processing equipment. There are more than 20 people in
professional technology R&D team.
4. All of our operations are strictly compliant with IATF16949 guidelines.
5. we could save more cost for you. High quality Low Price
