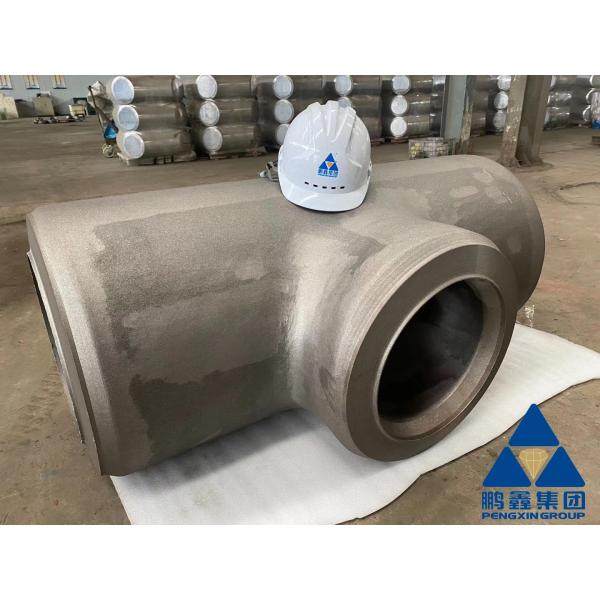

Alloy Steel A234 Unequal Tee Pipe WP22 BW 20 x 16 Inch Sch 80

Three links also known as pipe fittings three-way or three-way pipe fittings, three-way joints and so on. Mainly used to change the direction of the fluid, used in the main pipe branch. It can be classified according to the diameter of the pipe. Generally used carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon leachate, pvc and other materials.
The three links are pipe fittings and pipe connections. Also known as pipe fittings three-way or three-way pipe fittings, stainless steel equal diameter three-way joint, used in the main pipe to branch pipe.
The three-way is a kind of chemical pipe fittings with three openings, one inlet, two exits, or two imports and one outlet, which have T shape and Y shape, equal diameter pipe mouth, and different diameter pipe mouth, which are used for three identical or different pipe pools. The main function of the three links is to change the direction of the fluid.

Hot pressing forming
The three-way hot pressing forming is to flatten the tube billet larger than the three-way diameter to the size of the three-way diameter. The tube billet is heated and put into the forming die. Under the action of pressure, the tube billet is compressed radially, and the metal flows in the direction of branch pipe and forms branch pipe under the drawing of punching die. The whole process is formed by the radial compression of the tube billet and the tensile process of the branch pipe. Unlike the hydraulic bulging three-way, the metal of the hot-pressed three-way branch pipe is compensated by the radial motion of the tube billet, so it is also called the radial compensation process.
Due to the use of heating to press the three-way, the material forming equipment tonnage is reduced. The hot-pressing tee has a wide adaptability to the material, which is suitable for low carbon steel, alloy steel and stainless steel, especially for large diameter and thick pipe wall.
