Bathroom accessories automatic polishing machine
Bathroom accessories automatic polishing machine
Bathroom accessories automatic polishing machine
Bathroom accessories automatic polishing machine
Bathroom accessories automatic polishing machine
Bathroom accessories automatic polishing machine
Bathroom accessories automatic polishing machine
Bathroom accessories automatic polishing machine
Specifications
Brand Name :
JINZHU
Model Number :
JZ-P9006
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
6 sets per month
Delivery Time :
25-30 working days
Packaging Details :
Standard Export package
Price :
Negotiable
Name :
Bathroom accessories automatic polishing machine
Finishing :
Mirror finishing
Use for :
all round shape items
Description

Discription

Bathroom accessories automatic polishing machine developed by us represents a leading worldwide innovation with integration of multi-axes systems in the rotary buffing machine, providing a new performance and buffing system. The movement of each buffing head and rotary table turning are controlled by PLC program. Of course, we have this type machine with CNC controlled according to the items which need buffed. Usually use for getting glossy or mirror finishing with buffing wheels for irregular and complex shapes of metal items. The higher production capacity can help customer improve production and save labor(one machine can instead of 10 labors).

Specification

Bathroom accessories automatic polishing machine
Model JZ-P9006
Motor 4KW*6 (the quantity of buffing heads will depend on your items’s requirement, such as size, shape and finishing after buffing)
Voltage 380V,50/60HZ,3Phase
Spindle speed 2300r/min
Rotary table turning speed 0-8/min
Width of spindle 100mm
Control system PLC program( if need CNC type, Please contact us for details discuss)
OD of your items 0-300mm( for OD more than 300mm, machine will change accordingly to meet your items)
Machine size Rotary table size: 1000 mm and whole machine size: 2.3*2*1.8m
Consumables Flap wheel, Nylon wheel, Sisal wheel, Cloth wheel, Cotton wheel
ROHS Environment protection completely with dust cover

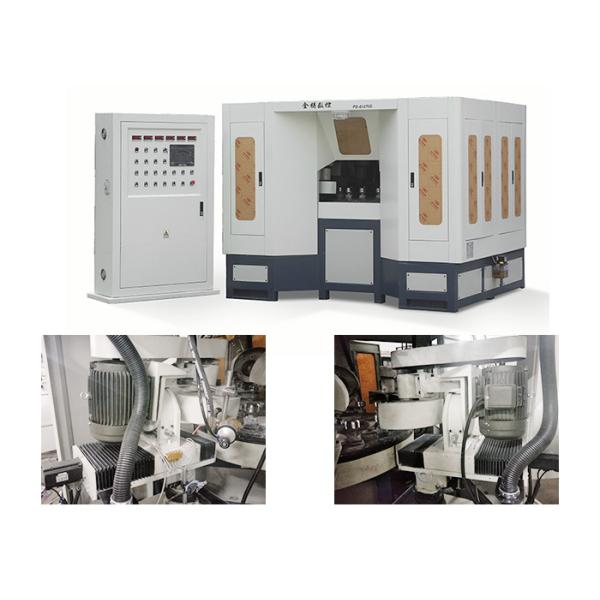

Details section of Bathroom accessories automatic polishing machine

Bathroom accessories automatic polishing machine

Consumables usage

How to use consumables to get needed finish by this type floor drain rotary buffing machine?

Manufacturing costs, timelines and right buffed finishing are always under tight scrutiny from last 20 years. Here, we can give you options at every point of buffing process that ultimately determine your success with right buffing method. Most important point for finishing as below:

  1. The linear speed of buffing wheels (adjust by inverter)
  2. Rotary table revolution turning speed (adjust by inverter)
  3. Workpiece rotation speed (adjustable by inverter)
  4. Details for buffing consumables picture as below (you can choose right consumables according to the finishing you need)

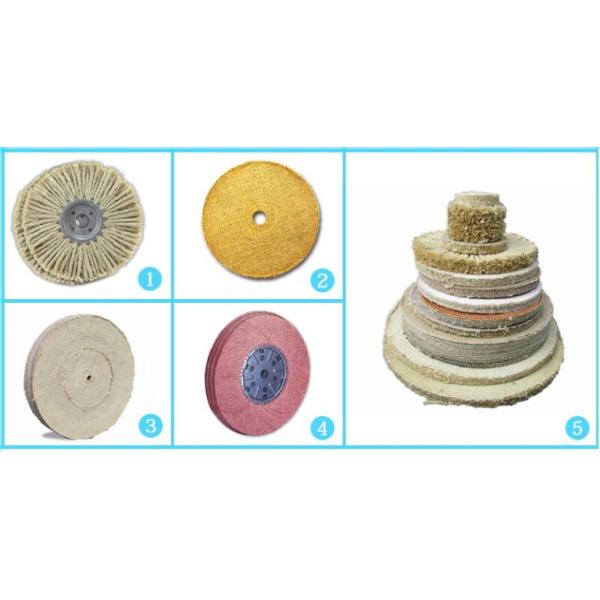

Sisal series

Bathroom accessories automatic polishing machine

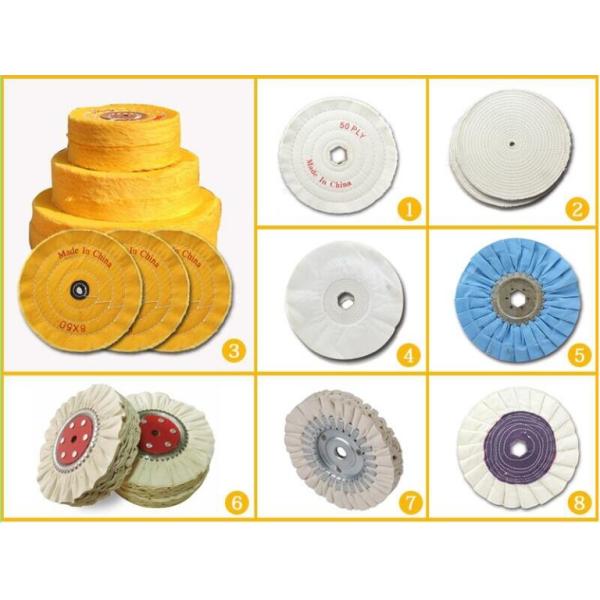

Cloth series

Bathroom accessories automatic polishing machine

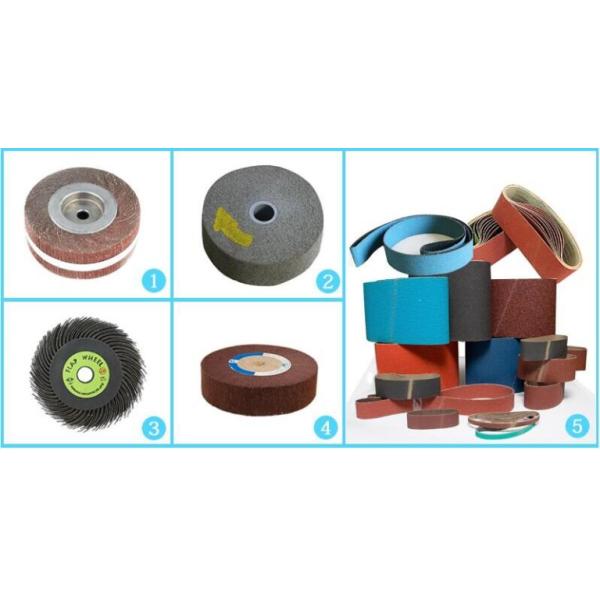

Abrasive series

Bathroom accessories automatic polishing machine

For more and details inforamtion discuss, please contact us

Contact person: Laura xu
Mobile/whatapp:+86 13929272332
