Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Specifications
Grade :
Industrial
Customized support :
OEM, ODM
Place of Origin :
Guangdong, China, JIN
Brand Name :
JINZHU
Model Number :
JZGM400
Variable Speed :
NO
Rated Voltage :
380V
Rated Input Power :
14
Frequency :
50HZ
No-Load Speed :
2000
Sand Pad Size :
1700*420
Application :
1700*420
Weight :
500
Power Source :
Electric
Product name :
Belt Sander Machine
Keywords :
Sander Machine
Function :
Grinding
Certification :
CE ISO
Standard accessories :
Sander Paper*1
Voltage :
380V-480V
Packaging Details :
wooden box,standard exporting package, good protection in transportation
Price :
$6,620.00/sets 1-4 sets
Description

Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine

Specification

Product Description

It is widely used in flat panels and various hardware panels for surface sand-drawing treatment. The
machine is divided into two types: dry grinding and water grinding. There are models of 400mm, 630mm,
1000mm, 1500mm and other specifications. The working grinding heads are also divided into single
group, double group and multiple groups. Customers can choose according to process and needs.

Packaging & Shipping

Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing MachineStainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine

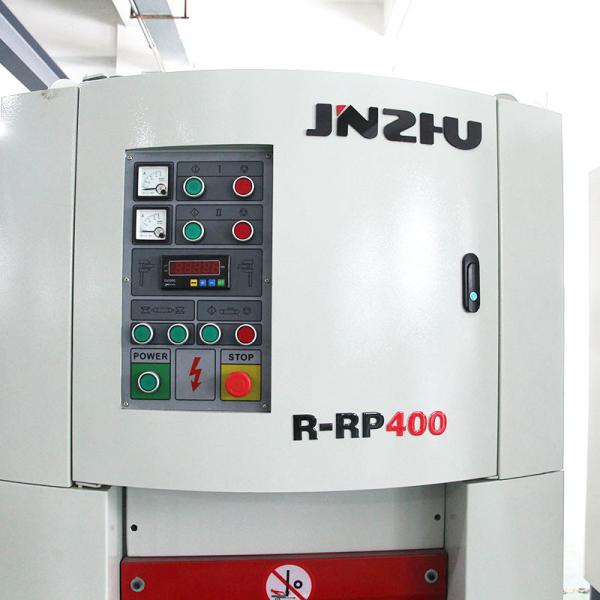

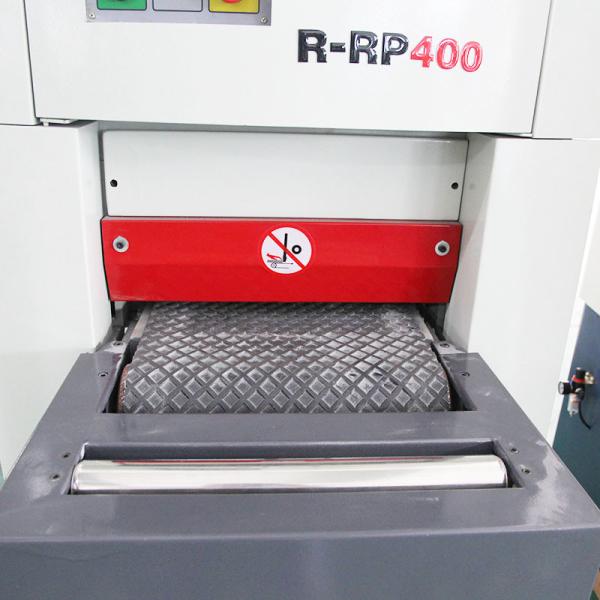

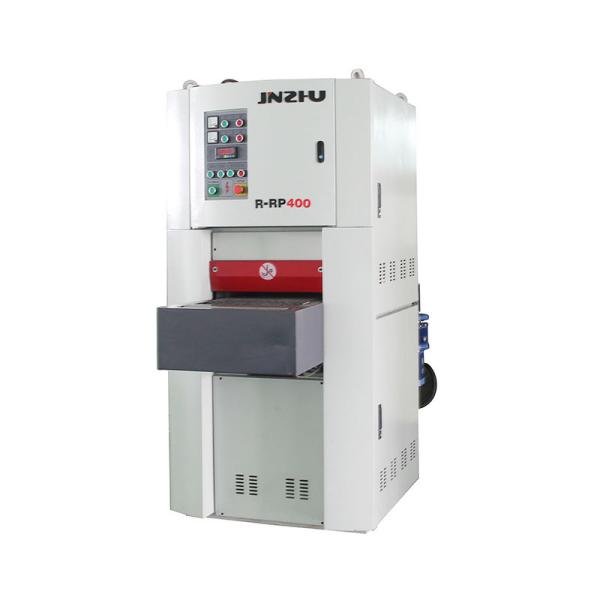

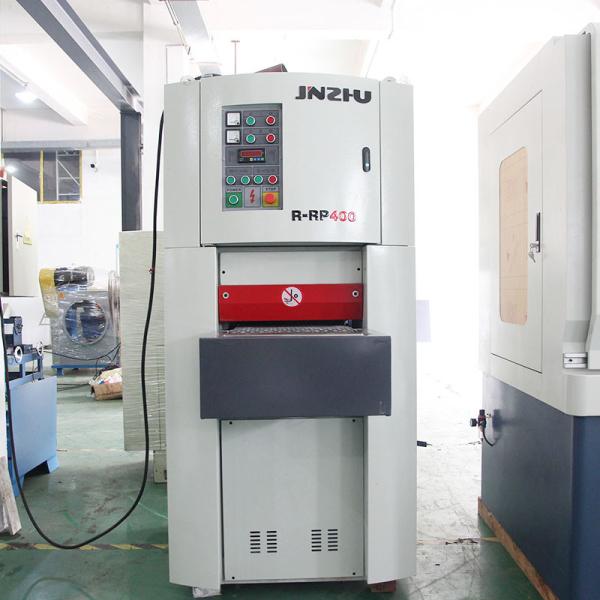

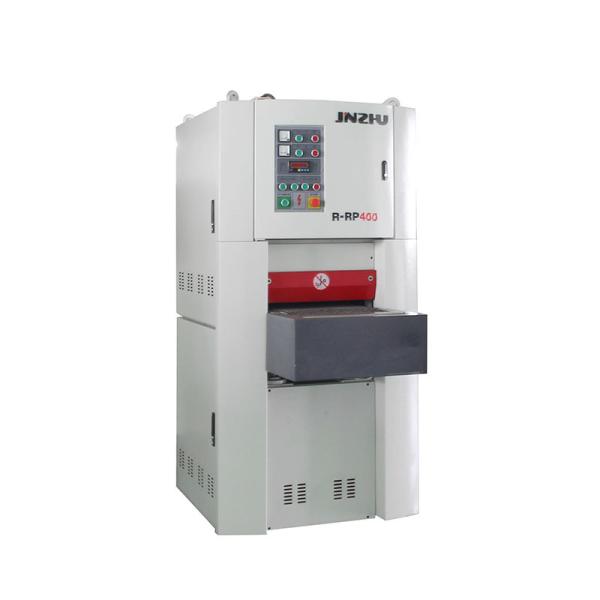

Detailed Images

Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing MachineStainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine

Specification

Specification
1. Voltage 380V-50hz
2. Main Power 5.5kw
3. Total power 14.12kw
4. Abrasive belt line speed 20m/s
5. Lifting motor 0.37kw
6. Conveying motor 0.75kw
7. Consumable specifications 1700*420mm
8. Lifting stroke of worktable 120mm
9. air press 0.55MPa
10. Processing range W:10~400mm H:0.5~110mm
11. Conveyor belt size 2600*400mm
12. Installation size 1600*800*1800mm L*W*H

Our Services

Warranty period

All of our machine is equipped with 1 year warranty period, if there are any problem in operating it, please kindly feel free to contact us, our after-sale servicer will do their best to solve your problem.

Company Information

About us

Since 2006, we produce automatic machines for polishing, buffing, grinding, wire drawing metal surfaces(rotary table, sheet, pipe,tube,oddly-shaped material and so on), processing metal such as SS, iron, brass, zinc,and aluminum. The final effect can be straight grain, round & circle grain, No.4, hairline effect and so on for grinding machine, ans smooth, satin finishing, mirror finishing, 8K mirror finshing effect for polishing machine.

· For extreme flexibility

· For the very affordable price

Your satisfaction can be our great progress!

Choose us you won't regret!

Please contact with us for more information discussion
