Specifications
Brand Name :
JLNE
Model Number :
TF-1200
Certification :
CE.ISO
Place of Origin :
JIANGSU,CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200sets/year
Delivery Time :
40-45 working days
Packaging Details :
Plastic film&Container
Product Name :
copper recycling line
Function :
cable wire shredding and separating
Application :
electrical copper cable wire
Processed cable diameter :
0.3-40mm
Processing capacity :
1000-1200kg/h
Operating :
full-automatic
Power :
129.36KW
Voltage :
380V/400V/440V/50HZ/60/HZ/customized
Color :
black&red/customized
Warranty :
12 months
Description

Multi-functional Industrial Aluminum Copper Cable Recycle Machine

The copper wire granulating machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameter is 0.3mm-40mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication cable,etc.

Application of Large capacity cable wire granulator:
Used for kinds of auto electrical wire,motorcycle wire. Storage battery bike wire. A television wire, washing machine and Refrigerator wire, Air conditioning and other household appliances wire,Telecommunications wire,Computer wire and so on.

Cable Wire Recycling Line Specification:

Model TF-1200
Recycling capacity 1000-1200kg/h
Processed wire diameter 1-40mm
Total power 129.36KW
Voltage customized
Dimension 16×10×3m
Weight 12000kg

Main Components of Cable recycling plant:

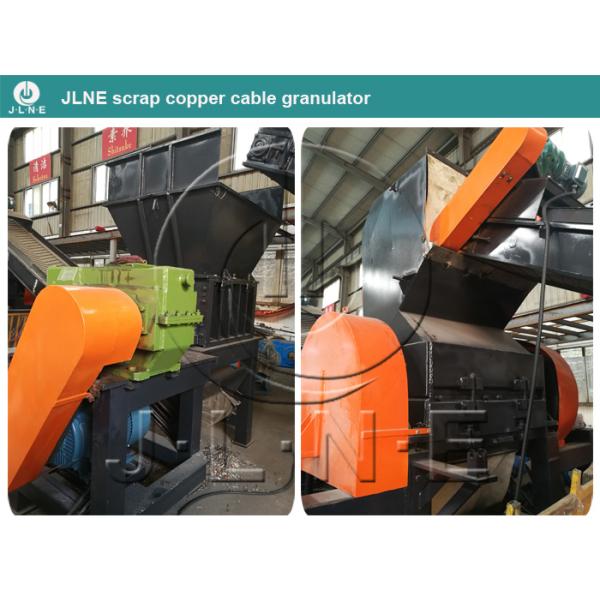

1.First crusher(double shaft crusher)
it needs the operator to put the waste wires into machine. Although this step must be operated manually, it has the features like easy to operate and high output.

2.conveyor:
it moves the waste wire from first crusher to second shredder.

3.Second shredder
it is a device which is used for crushing the 2~3cm wire from first crusher. This machine can crush the foreign body on external surface and separate the external rubber with copper completely. Additionally, the filtering network fixed at the bottom of machine is used for controlling the processing speed and output for different wires, and it is suitable for processing the cable from thinner one like hair to thicker one like power cable when it change the filter network. The pulverizing chamber can be operated by oil pressure system, what is more, it is easier to repair and change the blade.

4.Blower
move the crushed materials from second shredder to separator by wind wave and pressure.

5.Separator
as a core part, it is used to separate the copper and external rubber, though the structure is complex, it is easy to operate.

6.Dust collector
this device is used for collecting the dust produced in sorter through blower, there are 12 filtration woven belts whose material is imported diffusing tissue which can recycle the dust effectively, and so guarantee the cleanliness of the air of surrounding environment .

7.PLC controller
as a control device, it is used for adjusting all the machines and equipped with emergency stop and timing function. The working principle is using the PLC to control each part of the machine with strong controllability.

Multi-Functional Industrial Aluminum Copper Cable Recycle Machine

Multi-Functional Industrial Aluminum Copper Cable Recycle Machine

FAQ:

1. What kind of raw materials can be processed by the cable wire recycling machine?
This cable wire recycling machine is apply to all kinds of scrap wire, copper wire, aluminum wire, such as automobile electric line, motorcycle electric line, storage battery electric line, waste household appliance disassembly electric line, electromechanical equipment disassembly electric line, computer cable, telephone wire, cable TV line, communication cable and other scrap wires which are difficult to recycle.
2. How does the copper wire recycling machine work?
Crusher - Conveyor - Separator - Dust removal
3. Does the copper wire recycling machine can get pure copper?
Yes.We have electrostatic selection equipment,the remainning copper in the plastic can be sorted out again.So we can get 100% pure copper.
4. Is this copper wire recycling machine easy to operate?
Yes.Our machine is high automatic.Machine equipped PLC system,so it only need one operator to operate machine.
5. Is the copper wire recycling machine durable?
Yes.Our machine all use the hard and antiwear cutters, which are very durable and long-lasting, thus to have a long usage life.
