Different Capacity High Quality Metal Processing Scrap Bundle Machine
Different Capacity High Quality Metal Processing Scrap Bundle Machine
Different Capacity High Quality Metal Processing Scrap Bundle Machine
Different Capacity High Quality Metal Processing Scrap Bundle Machine
Specifications
Brand Name :
JLNE
Model Number :
YDF
Certification :
CE ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000sets/year
Delivery Time :
25-35 working days
Packaging Details :
FCL
Product Name :
metal processing machine
Package :
wooden case&container
Application :
waste metal recycle
Nominal Push Force :
630-4000Kn
Bale size :
200*200-650*650mm
Power :
11-90KW
Voltage :
customized
Operating :
automatic
Description

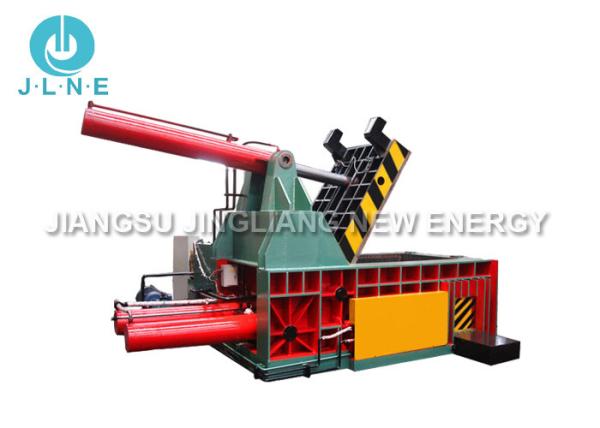

Different Capacity High Quality Metal Processing Scrap Bundle Machine

Waste metal shear pressing baler can directly cold-moulding press all kinds of metal scrap into rectangular, octagonal, cylindrical shape bulk and so on, it can also cold-moulding press the powder or granular shape of cast iron dust, steel cuttings, copper scrap, aluminium scrap into block shape, which is both convenient for preservation, shipping and recycling use. After pressing into block shape, it will be low dissipation if put them into furnace using again. The whole producing process don’t need heat, additive or others, directly cold-moulding press without changing the original material. For example, cast iron dust after cold-moulding pressing, can replace foundry pig iron for use. For some special material casting, recycling is more significant.

Available material of Waste metal shear pressing baler:
Zip-top can, paint bucket, iron cans, waste iron, waste steel, iron sheet, waste aluminium, waste copper, iron bucket, car shell, aluminium alloy and some other scrap metal.

Features of metal baler:
1. hydraulic metal baler machine are applicable to compress and briquette various metal scraps, such as steel shavings, waste steel, waste aluminum, waste copper, waste stainless steel, lathe scraps, remnants and abandoned cars. It can reduce transport cost and smelting cost and increase output.
2. This series of baling presses are suitable for steel plants, wastes recycling enterprises, non-ferrous and ferrous metal industry.
3. All modes metal baler adopt hydraulic drive, users can choose to control manually or automatically by PLC.
4. Bales come out by overturning or by push (lateral or front).
5. The compress chamber size and bales size can be customized to customers’ needs.

Technical Parameter of metal pressing machine:

Model Nominal pressure
(kN)		 Press box size
(mm)		 Bale size
(mm)		 Bale density
(t/m3)		 Output
(T/8h)		 Bale weight
(kg)		 Power
(kw)		 Weight
(T)
YDF-63A 630 1000×600×500 200×200 ≥2.0 4~6 16~30 11 4.5
YDF-100A 1000 1000×600×500 200×200 ≥2.0 8~12 16~30 11 5.5
YDF-100A 1000 1100×500×500 200×500 ≥2.0 6~8 40~80 11 5.5
YDF-130A 1300 1200×700×550 250×250 ≥2.0 8~12 30~45 15 6
YDF-130B 1300 1200×800×600 300×300 ≥2.0 8~12 30~45 15 6.5
YDF-135A 1350 1400×600×600 250×600 ≥2.0 10~16 70~90 18.5 6
YDF-160A 1600 1200×800×550 300×300 ≥2.0 8~12 50~80 18.5 7.5
YDF-160B 1600 1600×800×800 350×350 ≥2.0 14~18 80~140 18.5 12
YDF-160C 1600 1400×900×700 320×320 ≥2.0 16~24 80~150 22 12
YDF-160D 1600 1600×1200×800 400×400 ≥2.0 16~30 110~170 22 13.5
YDF-160A 1600 1200×800×550 300×300 ≥2.0 10~16 70~125 22 12
YDF-160B 1600 1600×800×800 350×350 ≥2.0 16~20 70~125 22 12
YDF-200A 2000 1600×1200×800 350×400 ≥2.0 18~28 110~170 22 20
YDF-200B 2000 1800×1400×800 450×450 ≥2.0 20~30 110~170 22 20
YDF-200A 2000 1600×1200×800 350×400 ≥2.0 20~30 110~170 30 22
YDF-250A 2500 2000×1200×1000 450×450 ≥2.0 20~32 180~370 30 20
YDF-250B 2500 2000×1400×900 500×500 ≥2.0 20~36 180~370 30 20
YDF-250C 2500 2000×1750×1200 500×500 ≥2.0 20~38 180~370 22×2 27
YDF-250A 2500 1600×1200×1000 450×450 ≥2.0 28~38 160~330 30 22
YDF-250B 2500 2000×1400×900 500×500 ≥2.0 28~38 180~370 30 22
YDF-250C 2500 2000×1750×1200 500×500 ≥2.0 28~38 180~370 22×2 27
YDF-315A 3150 2000×1400×1200 500×500 ≥2.0 35~40 220~360 45 35
YDF-315B 3150 2500×2000×1200 600×600 ≥2.0 35~56 450~800 45 39
YDF-400A 4000 2500×1600×1200 600×600 ≥2.0 40~70 400~750 45×2 45
YDF-400B 4000 2800×1800×1200 650×650 ≥2.0 50~80 650~900 45×2 50

Different Capacity High Quality Metal Processing Scrap Bundle Machine
