Waste Copper Aluminum Recycling Integrated Metal Chip Compactor
Waste Copper Aluminum Recycling Integrated Metal Chip Compactor
Waste Copper Aluminum Recycling Integrated Metal Chip Compactor
Waste Copper Aluminum Recycling Integrated Metal Chip Compactor
Specifications
Brand Name :
JLNE
Model Number :
YDF
Certification :
CE ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000sets/year
Delivery Time :
25-35 working days
Packaging Details :
FCL
Product Name :
copper baler machine
Type of bale out :
Push-out bale
Application :
Scrap Metal Baler Metal Bundle Machine
Nominal Push Force :
630-4000Kn
Bale size :
200*200-650*650mm
Power :
11-90KW
Voltage :
customized
Baler weight :
16-200kg
Description

Waste Copper Aluminum Recycling Integrated Metal Chip Compactor

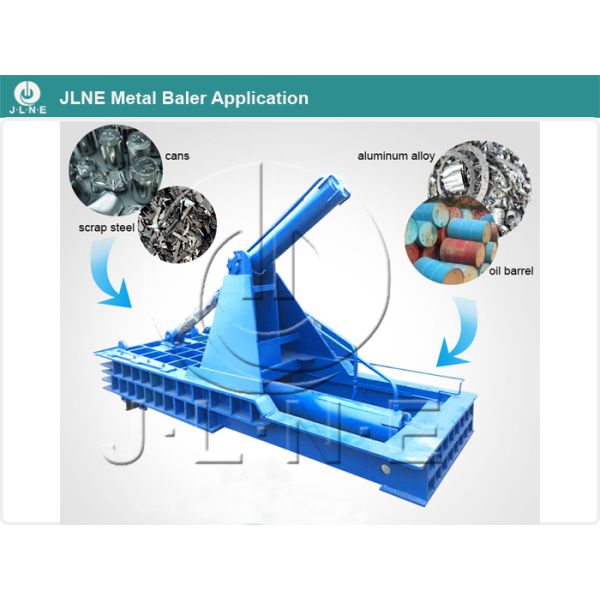

Application of Waste metal shear pressing baler:
Metal baler machine is mainly used in recycling industry and metal smelting industry.It can be used to squeeze all kinds of metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, dismantled automobile shells, waste oil barrels and other metal raw materials into square, cylindrical and other shapes. ,Easy to store, transport and re-use, improve the speed of casting, increase labor efficiency, reduce transportation, manpower, smelting costs.

Features of scrap metal compactor :
1. All machines are hydraulic-driven with alternatives of manual or automatic control .
2. Bale-discharging alternative : turn-out , push-out , forward or manual discharging .
3. No fang bolts needed for installation ; diesel engine can be used as power when electric power is unavailable .
4. There are ten grades of baling force from 63 to 400 tons .
5. The size of baler can be custom made as per customers .

6. Stable and efficient hydraulic driving system, manual handle or PLC full automatic operation optional
7. various bale ejection methods optional, turning over, side pushing out, front pushing out, manual discharging etc.
8. various models for the custom needs: different press forces, box sizes, bale shapes
9. both electrical power and diesel engine power available

Technical Parameter of metal pressing machine:

Model Nominal pressure
(kN)		 Press box size
(mm)		 Bale size
(mm)		 Bale density
(t/m3)		 Output
(T/8h)		 Bale weight
(kg)		 Power
(kw)		 Weight
(T)
YDF-63A 630 1000×600×500 200×200 ≥2.0 4~6 16~30 11 4.5
YDF-100A 1000 1000×600×500 200×200 ≥2.0 8~12 16~30 11 5.5
YDF-100A 1000 1100×500×500 200×500 ≥2.0 6~8 40~80 11 5.5
YDF-130A 1300 1200×700×550 250×250 ≥2.0 8~12 30~45 15 6
YDF-130B 1300 1200×800×600 300×300 ≥2.0 8~12 30~45 15 6.5
YDF-135A 1350 1400×600×600 250×600 ≥2.0 10~16 70~90 18.5 6
YDF-160A 1600 1200×800×550 300×300 ≥2.0 8~12 50~80 18.5 7.5
YDF-160B 1600 1600×800×800 350×350 ≥2.0 14~18 80~140 18.5 12
YDF-160C 1600 1400×900×700 320×320 ≥2.0 16~24 80~150 22 12
YDF-160D 1600 1600×1200×800 400×400 ≥2.0 16~30 110~170 22 13.5
YDF-160A 1600 1200×800×550 300×300 ≥2.0 10~16 70~125 22 12
YDF-160B 1600 1600×800×800 350×350 ≥2.0 16~20 70~125 22 12
YDF-200A 2000 1600×1200×800 350×400 ≥2.0 18~28 110~170 22 20
YDF-200B 2000 1800×1400×800 450×450 ≥2.0 20~30 110~170 22 20
YDF-200A 2000 1600×1200×800 350×400 ≥2.0 20~30 110~170 30 22
YDF-250A 2500 2000×1200×1000 450×450 ≥2.0 20~32 180~370 30 20
YDF-250B 2500 2000×1400×900 500×500 ≥2.0 20~36 180~370 30 20
YDF-250C 2500 2000×1750×1200 500×500 ≥2.0 20~38 180~370 22×2 27
YDF-250A 2500 1600×1200×1000 450×450 ≥2.0 28~38 160~330 30 22
YDF-250B 2500 2000×1400×900 500×500 ≥2.0 28~38 180~370 30 22
YDF-250C 2500 2000×1750×1200 500×500 ≥2.0 28~38 180~370 22×2 27
YDF-315A 3150 2000×1400×1200 500×500 ≥2.0 35~40 220~360 45 35
YDF-315B 3150 2500×2000×1200 600×600 ≥2.0 35~56 450~800 45 39
YDF-400A 4000 2500×1600×1200 600×600 ≥2.0 40~70 400~750 45×2 45
YDF-400B 4000 2800×1800×1200 650×650 ≥2.0 50~80 650~900 45×2 50

Waste Copper Aluminum Recycling Integrated Metal Chip Compactor
