New Designing Large Scale Scrap Metal Hydraulic Baler For Recycling
New Designing Large Scale Scrap Metal Hydraulic Baler For Recycling
New Designing Large Scale Scrap Metal Hydraulic Baler For Recycling
New Designing Large Scale Scrap Metal Hydraulic Baler For Recycling
Specifications
Brand Name :
JLNE
Model Number :
YDF
Certification :
CE ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000sets/year
Delivery Time :
25-35 working days
Packaging Details :
FCL
Product Name :
copper baling machine
key word :
baling press
Application :
scrap metal baling
Nominal Push Force :
630-4000Kn
Bale size :
200*200-650*650mm
Power :
11-90KW
Voltage :
customized
After-sales Service Provided :
lifetime technical supporting
Description

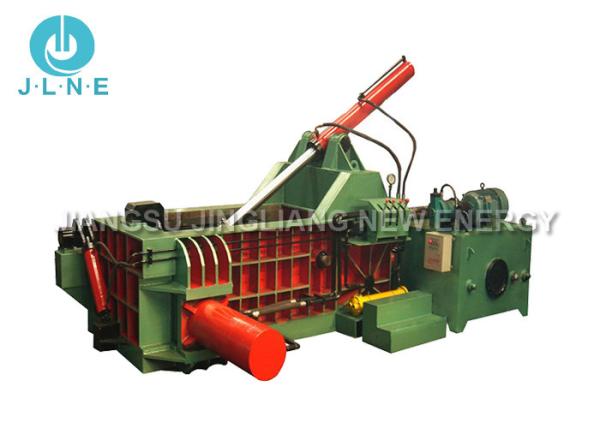

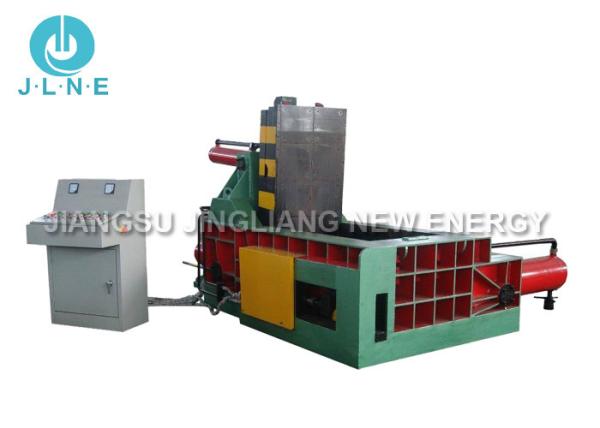

New Designing Large Scale Scrap Metal Hydraulic Baler for Recycling

Waste metal shear pressing baler mainly used in recovery processing industry and metal smelting industry, which can press all kinds of scrap metal, copper, steel, aluminium into cuboid and cylinder as for the furnace burden. It is convenient for preservation, shipping and recycling use, improve the speed of putting into the furnace, increase the efficiency, and lower the cost of shipping, manpower and smelt.

Metal baler Equipment introduction:
1. Both are hydraulically driven, work smoothly, safe and reliable;
2. Manual and PLC automatic control operation is optional;
3. There are four ways to discharge material: side-turning package, side-sweeping package, forward-sweeping package or no-outloading package;
4. The diesel engine can be used as a power source in places where there is no power source.No foundation bolts for installation.
5. Product specifications and types: metal balers have different specifications, to meet the different needs of customers at different levels

Waste Copper Metal Baling Machine Features:

1. Hydraulic drive,PLC or manual valve control are optional.
2. The high strength bushing is wear-resisting plate NM500.
3. Use cutting blades on both sides of the feeding box.
4. Food screws are not needed,and the integrated welding machine is very stable.
5. Overall design,easy installation.
6. We adopt the buffer valve,which can protect the machine and extend the service life of the machine.
7. We are factory,and we have strict quality control.

Technical Parameter of metal pressing machine:

Model Nominal pressure
(kN)		 Press box size
(mm)		 Bale size
(mm)		 Bale density
(t/m3)		 Output
(T/8h)		 Bale weight
(kg)		 Power
(kw)		 Weight
(T)
YDF-63A 630 1000×600×500 200×200 ≥2.0 4~6 16~30 11 4.5
YDF-100A 1000 1000×600×500 200×200 ≥2.0 8~12 16~30 11 5.5
YDF-100A 1000 1100×500×500 200×500 ≥2.0 6~8 40~80 11 5.5
YDF-130A 1300 1200×700×550 250×250 ≥2.0 8~12 30~45 15 6
YDF-130B 1300 1200×800×600 300×300 ≥2.0 8~12 30~45 15 6.5
YDF-135A 1350 1400×600×600 250×600 ≥2.0 10~16 70~90 18.5 6
YDF-160A 1600 1200×800×550 300×300 ≥2.0 8~12 50~80 18.5 7.5
YDF-160B 1600 1600×800×800 350×350 ≥2.0 14~18 80~140 18.5 12
YDF-160C 1600 1400×900×700 320×320 ≥2.0 16~24 80~150 22 12
YDF-160D 1600 1600×1200×800 400×400 ≥2.0 16~30 110~170 22 13.5
YDF-160A 1600 1200×800×550 300×300 ≥2.0 10~16 70~125 22 12
YDF-160B 1600 1600×800×800 350×350 ≥2.0 16~20 70~125 22 12
YDF-200A 2000 1600×1200×800 350×400 ≥2.0 18~28 110~170 22 20
YDF-200B 2000 1800×1400×800 450×450 ≥2.0 20~30 110~170 22 20
YDF-200A 2000 1600×1200×800 350×400 ≥2.0 20~30 110~170 30 22
YDF-250A 2500 2000×1200×1000 450×450 ≥2.0 20~32 180~370 30 20
YDF-250B 2500 2000×1400×900 500×500 ≥2.0 20~36 180~370 30 20
YDF-250C 2500 2000×1750×1200 500×500 ≥2.0 20~38 180~370 22×2 27
YDF-250A 2500 1600×1200×1000 450×450 ≥2.0 28~38 160~330 30 22
YDF-250B 2500 2000×1400×900 500×500 ≥2.0 28~38 180~370 30 22
YDF-250C 2500 2000×1750×1200 500×500 ≥2.0 28~38 180~370 22×2 27
YDF-315A 3150 2000×1400×1200 500×500 ≥2.0 35~40 220~360 45 35
YDF-315B 3150 2500×2000×1200 600×600 ≥2.0 35~56 450~800 45 39
YDF-400A 4000 2500×1600×1200 600×600 ≥2.0 40~70 400~750 45×2 45
YDF-400B 4000 2800×1800×1200 650×650 ≥2.0 50~80 650~900 45×2 50

New Designing Large Scale Scrap Metal Hydraulic Baler For Recycling
