Electric Waste Air Conditioner Radiator Copper And Aluminum Separator

Copper aluminum Waste Radiator Recycling plant is a new product developed for processing waste radiators or heat sinks for recycle use. The Copper aluminum Waste Radiator Recycling machine can separate the copper, aluminum and iron through crushing and separation process. The separation rate can reach to 99.9%.

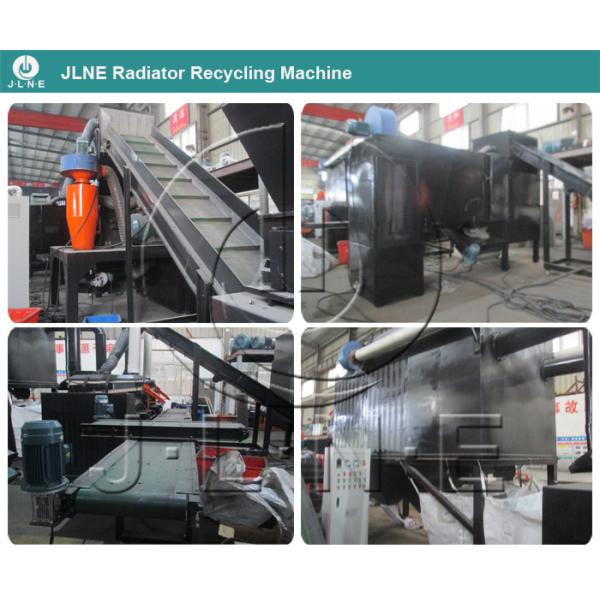

Components:

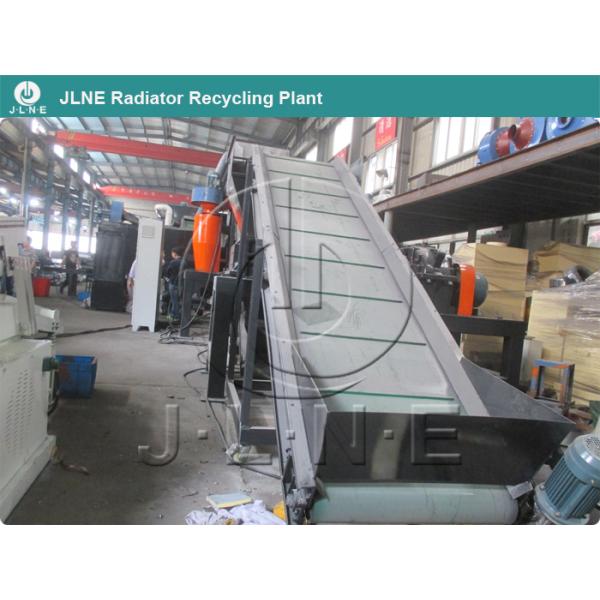

1. Conveyor:Put radiators on the conveyor and send them to first crusher.
2. First crusher: This crusher cut the radiator to small pieces with size of 10-15cm
3. Second shredder: The shredder cut the crushed radiator to final small pieces.
4. Separator: Copper pellet and aluminum pellet get out of this vibrating separator.
5. Copper outlet.
6. Aluminum outlet.

Features of Waste radiator recycling plant:
1. This scrap radiator recycling plant is consisted of crusher, shredder, conveyor, separator and dust collector. First crusher of the line can also be used for crushing scrap copper wires and other kind of metals.
2. Normal radiator from air conditioner and car can be processed by this line, and compressed radiator can be also recycled. No limit about the radiator size.
3. Output copper pieces and aluminum pieces can be reused. Also the output piece size can be adjusted as customers' requirement.
4. The whole separating line for radiator is controlled by PLC controller. Only two workers required to operate the equipment.
5. All of the equipment and spare part are with high quality and has long use life. We will also supply necessary equipment to help customer maintain the complete plant.
6. The first crusher designed by double roller and have the advantage of low noise, big crusher chamber and etc.
7. The cutter of first crusher use the special tool steel and the crushing range is wide. Both have splitting, tearing, squeezing and any other features
8. Magnetic separator using the ferromagnetic roller separator and the separator rate can reach up to 95%.
9. The pulse dust collector can prevent the leak of dust and the dust-cleaning rate can reach 99%, have no secondary pollution.Separated by the air flow separator and the separation rate can reach 97%.

Specifications of Industrial radiator separating machine:

Working principle of Radiator separating line:
Radiator harmless separating and recycling machine,which adopts dry-type crusher ,magnetic separator and air separator to break and separate the radiator, turning the radiator into copper, iron and aluminum. The whole process is conducted in negative pressure.
The equipment needs hand feeding and inside hard material, such as chunks of iron or large screws, shafts, should be picked out in advance. Then after first crushing and second crushing, aluminum, iron and copper are taken off. At last, magnetic separator and air separator separate aluminum, iron and copper. Pulse dust catching system is allocated in crushing and separation part, effective solution to the dust discharge. The crushing and separation system is equipped with pulse dust collector system, so the dust problem can be solved.
