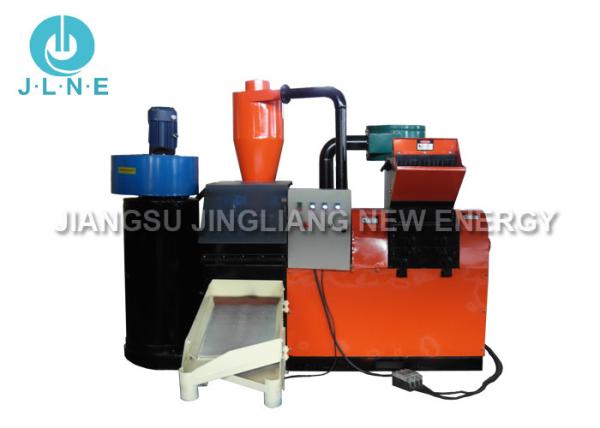

Automatic Scrap Copper Cable Granulator Wire Recycling Machine

TF model scrap copper wire recycling machine is widely used to process all kinds of waste wire, such as household electric wire, computer wire and other various cable lines with diameter between 0.1-20mm which can not be striped by wire stripping machine. After crushing and processing, the plastic and copper can be separated completely at last. There is no dust and no secondary pollution. In addition, the copper wire machine has an integrated structure, which is convenient for installation, debugging and stable operation of transportation performance.

Cable Separator Application:
1. All kinds of Copper cable and wire;
2. Aluminum cable and wire;
3. Auto wiring harnesses;
4. Communication cables;
5. Household electric wire;
6. Computer wire;
7. Other unclassified cables which cannot be processed by wire-stripping machine.

Wire Recycling Machine Features:
1. PLC control cabinet guarantee the processing safety and protect the machine life

2. Integrated structure, easy to install and debug, convenient to transport, stable performance.
3. Blade and screen use special wear resistance and high toughness alloy material to reduce the production cost.
4. Double roller, low speed to guarantee the feeding efficiency.

5. No dust, no secondary pollution
6. Copper purity 99.9%
7. Pulse dust collector

Copper Wire Granulator Specifications:

Scrap copper cable recycling machine Working principle:

1. Put wires and cables into the crusher, in which they are crushed and plastic sheath and copper separated completely. The length of the crushed material is based on the mesh of the riddle: the bigger the mesh is the longer the crushed material will be and the larger the output will be. The mesh should be chosen in production according to the type of the material.
2. The crushed material (mixture of copper granules and plastic pieces) is conveyed to the separator by the conveyor, during which procedure dust and part of plastic pieces of light weight(including fiber, rope, or tapes, etc. mixed in the wires) are collected by the pressure-reducing blower. The above opening of the pressure reducing blower is connected with the dust collector opening in which a dust collecting bag is used to prevent discharge of dust for the purpose of environmental protection. Dust and part of plastic pieces of light weight are collected in this bag and will be discharged when the bag is full.
3. The separator is used for separating plastic pieces and copper granules. According to the differences of the physical properties and specific gravity between different materials, there is specific gravity deviation under the forces of Aerodynamic and Vibration friction. By adjusting the speed of material conveying and amplitude parameters, copper granules (of larger specific gravity) will move to the riddle bottom and move from down to up, and plastic pieces (of smaller specific gravity) will move to the above of copper granules and move from up to down, and in the end they will both be discharged through different openings.
4. All the units are installed on the underbed to form a whole structure. The machine is adjusted ready for production before shipping, and the customer only need to connect it to the power supply.
